601–426 /17 F70 Series38
Broadcast Address
Every projector has a broadcast (common) address '0' or '1'. The default address is '0'.
The choice between '0' and '1' can be selected in the GUI: System Settings Communication “IR
Control “.
Placing new batteries in the remote control or plugging the remote to a projector via a cable will
automatically reset the address back to its default value '0'.

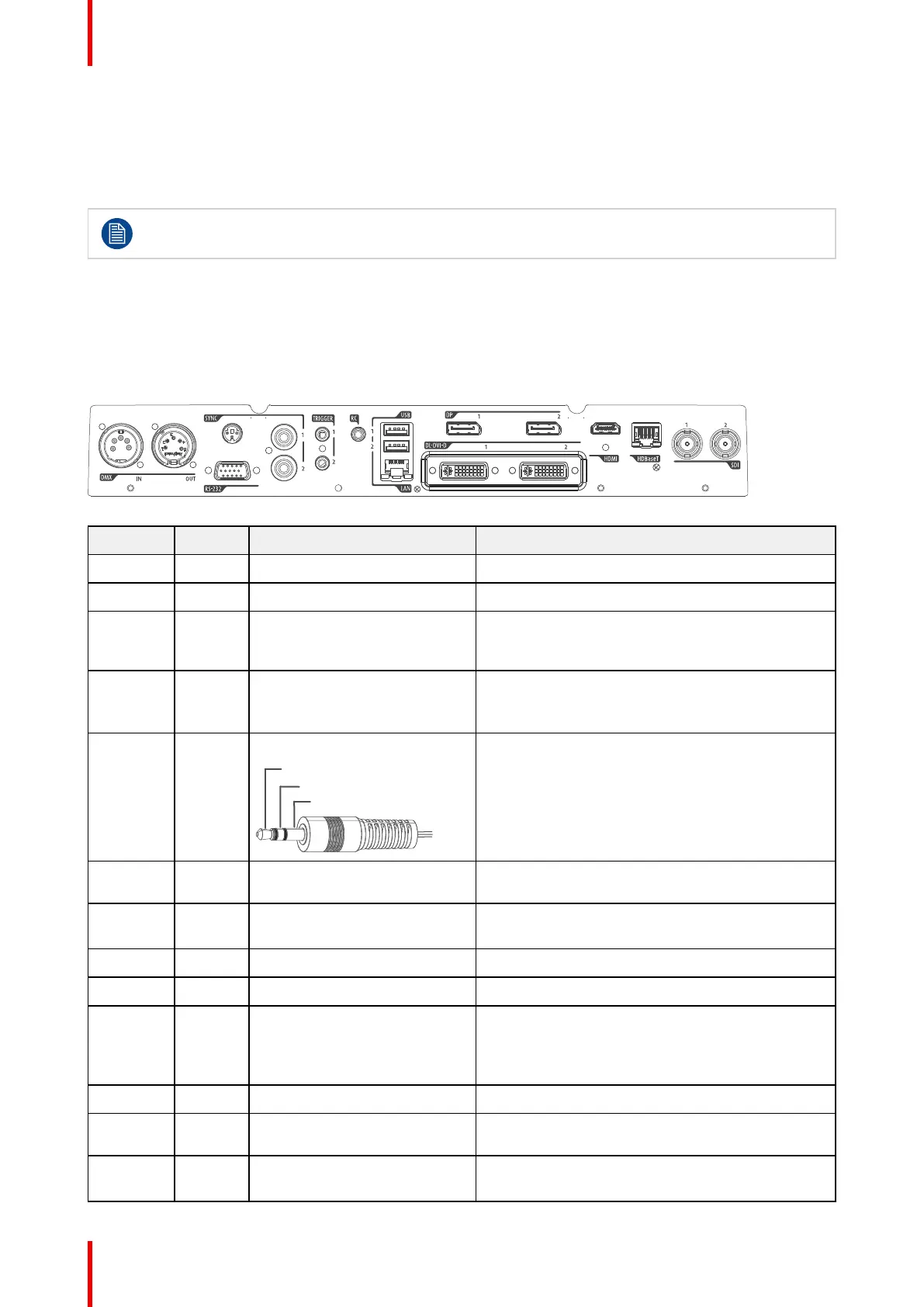

2.11 Connector panel
General
The source input panel is located at the back of the projector. For source specifications, see table below.
Image 2–20
Name Pcs
Description Purpose
DMX IN 1 DMX 512 input For Projector Control
DMX OUT 1 DMX 512 output For Projector Control
RS-232 1 9–pin DB9 connector For Projector Control. Allows for wired remote
control and monitoring of many projector functions
used in installation environments
Sync 3 BNC Sync Port IN/OUT;
Bidirectional mini-DIN (1x 3D
sync Out, and 2x Sync In/Out)
For Projector ControlThis is mainly used in multiple
projector installations with requirement of
synchronization between the units
Trigger 3 (one in
front,
two on
rear
panel)
12VDC - 0,5A (6W)
Trigger Out Voltage
No Connection
Ground
For Controlling Peripherals, like motorized
screens, curtains etc. Give 12V output when
activated. See API manual for activation info.
NOTE Disconnect the projector power cable
before connecting or removing the trigger
cable.
RC 1 Jack connector for wired
remote
For Projector Control
USB 3 USB 2.0 type A, 4 pin( 2x Rear
and 1x Front)
For Software upgrade
LAN 1 Standard RJ45 connector For Projector Control
DP 2 Standard display port For Projector Input
DL-DVI-D 2 Dual DVI-I 1.0 (DVI_D
Functionallity).
For Projector Input. These connectors can also be
used to form one uniform image by feeding half of
the image into each connector. HDCP compliant
for sources up 165 Mhz
HDMI 1 Standard HDMI 2.0 For Projector Input
HDBaseT 1 Standard RJ45 8P8C
Connector
For Projector Control
SDI 2 SDI1 is Input, SDI 2 is pass
through. (out)
For Projector Input
