601–426 /17 F70 Series58

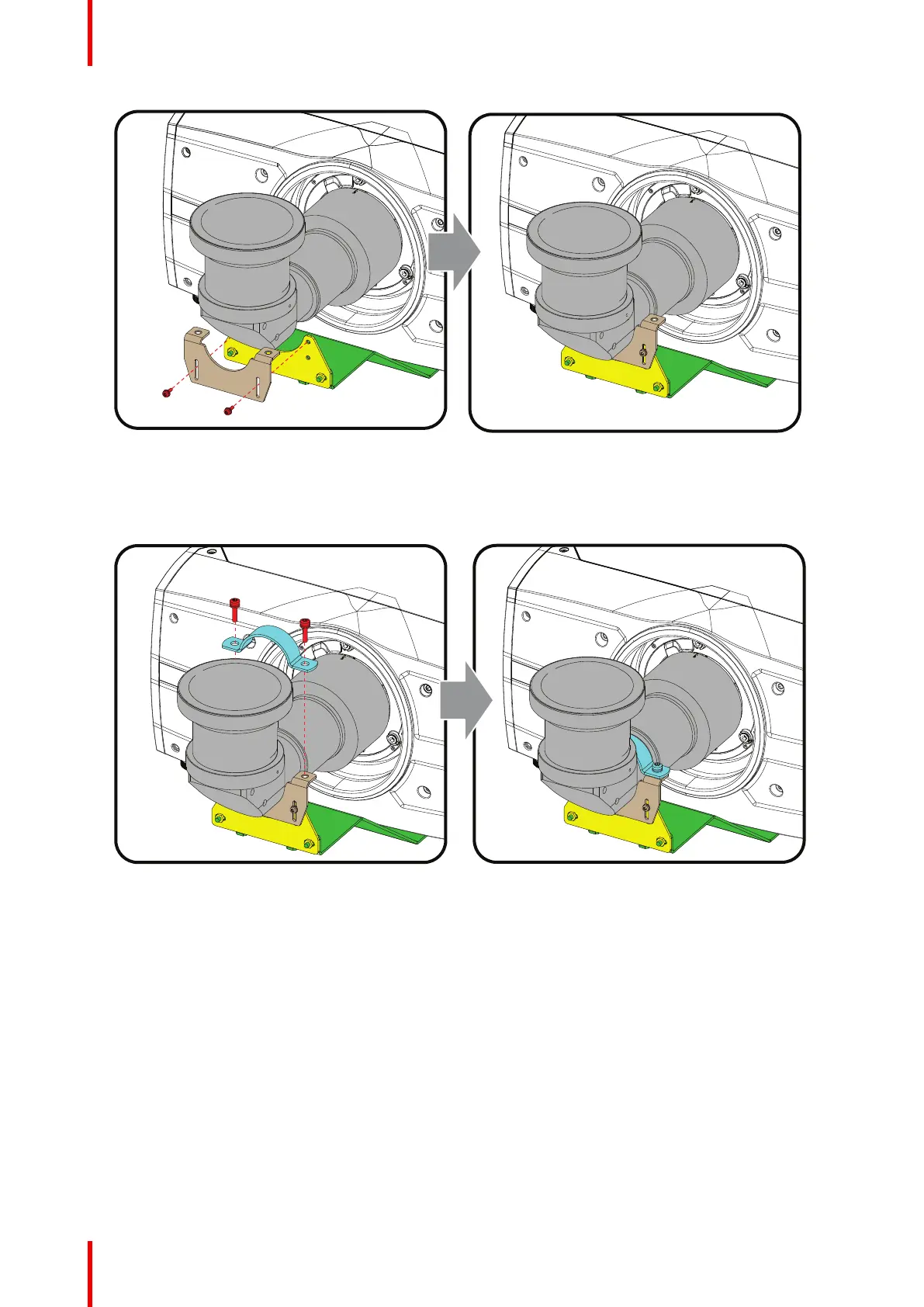

Image 3–31 Mount the 3th plate
9. Place the clamping bracket on the lens so that the fixation holes matches the holes in the support.
Drive in both fixation screws. If necessary, move the 3th plate a little bit until it fully match with the lens.
Fully secure both screws.
Image 3–32 Mount clamp bracket
10. Fully fasten the screws of the 3th plate and the nuts of the 2nd plate so that the support is fully assembled.
The projector is ready for use.
3.8 Mounting a safety cable to the FLDX lens
(0.38:1) UST lens
When to use the safety cable
While it is strongly recommended to use the specifically designed mounting support for this lens in
combination with this lens, it is not mandatory.
When mounting the UST lens in a projector without using the mounting support (not recommended), it is
mandatory to use the safety cable set provided by Barco instead. Failing to use either the correct type of
safety cable or the mounting support may damage the lens and/or projector, and can also cause serious injury
to persons.
