57601–426 /17 F70 Series

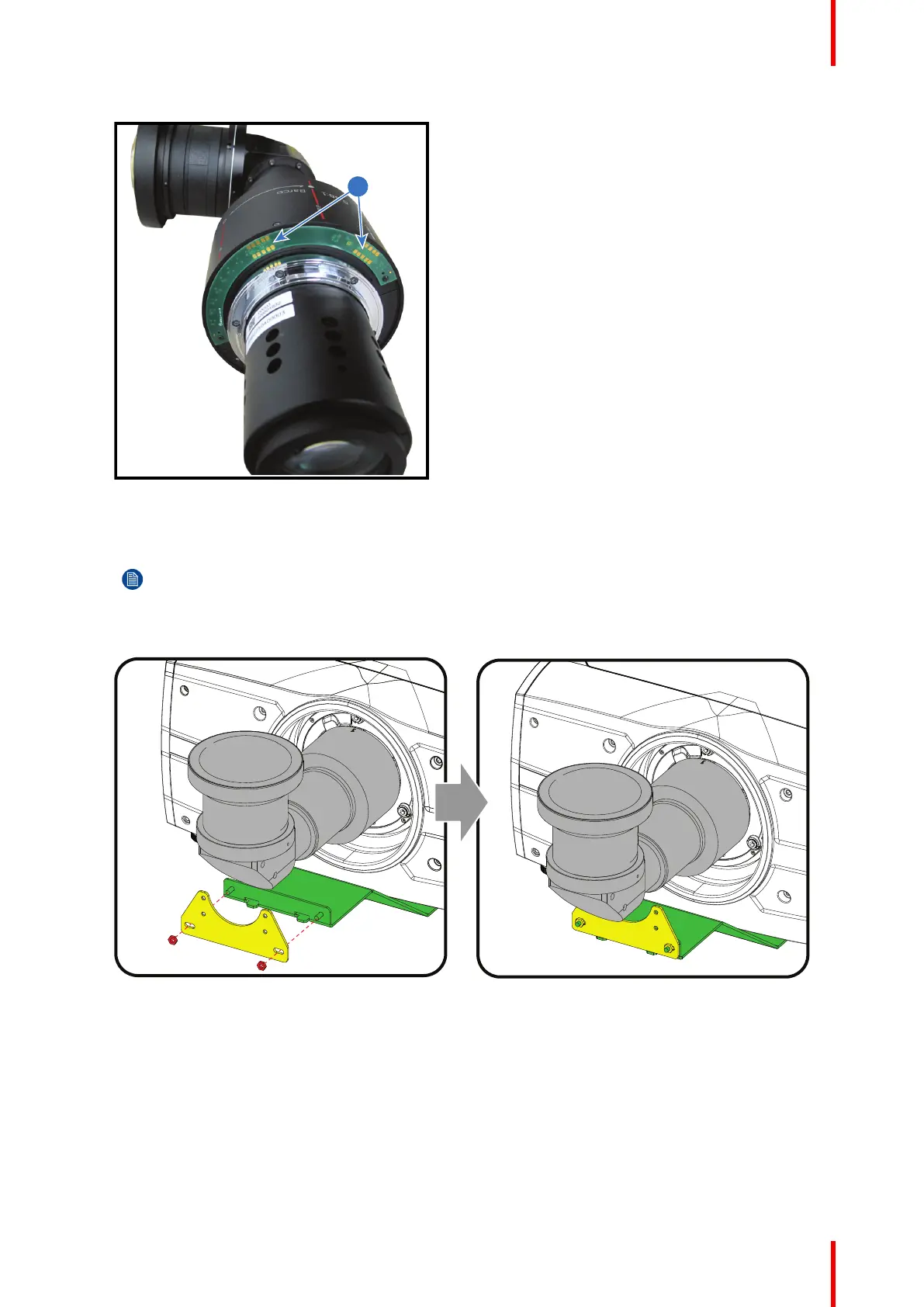

Image 3–29
5. When the lens is on its place, close the lens locking system by moving the handle from the left to the right.
6. Project an image and adjust the shift. See projector’s user manual for more information about lens shift.
Note: Shift cannot be adjusted anymore after full installation of the complete kit.
7. Slide plate 2 on both threaded rods and turn a nut on each rod. Do not fasten yet! It must be possible to
move the plate a little bit while mounting the other plates.
Image 3–30 Mount the 2nd plate
8. Mount the 3th plate on the 2nd plate. Use the upper mounting holes in the 2nd plate.
Drive in both screws but do not fasten yet.
Lenses, Handling and features
