601–426 /17 F70 Series48
Repeat for each calibration item.
3.5 Installing the lens safety cable
When to use the lens safety cable
The lens safety cable must be used in any circumstance where the projector is mounted above people. Do this
to secure the mounted lens in the lens holder.

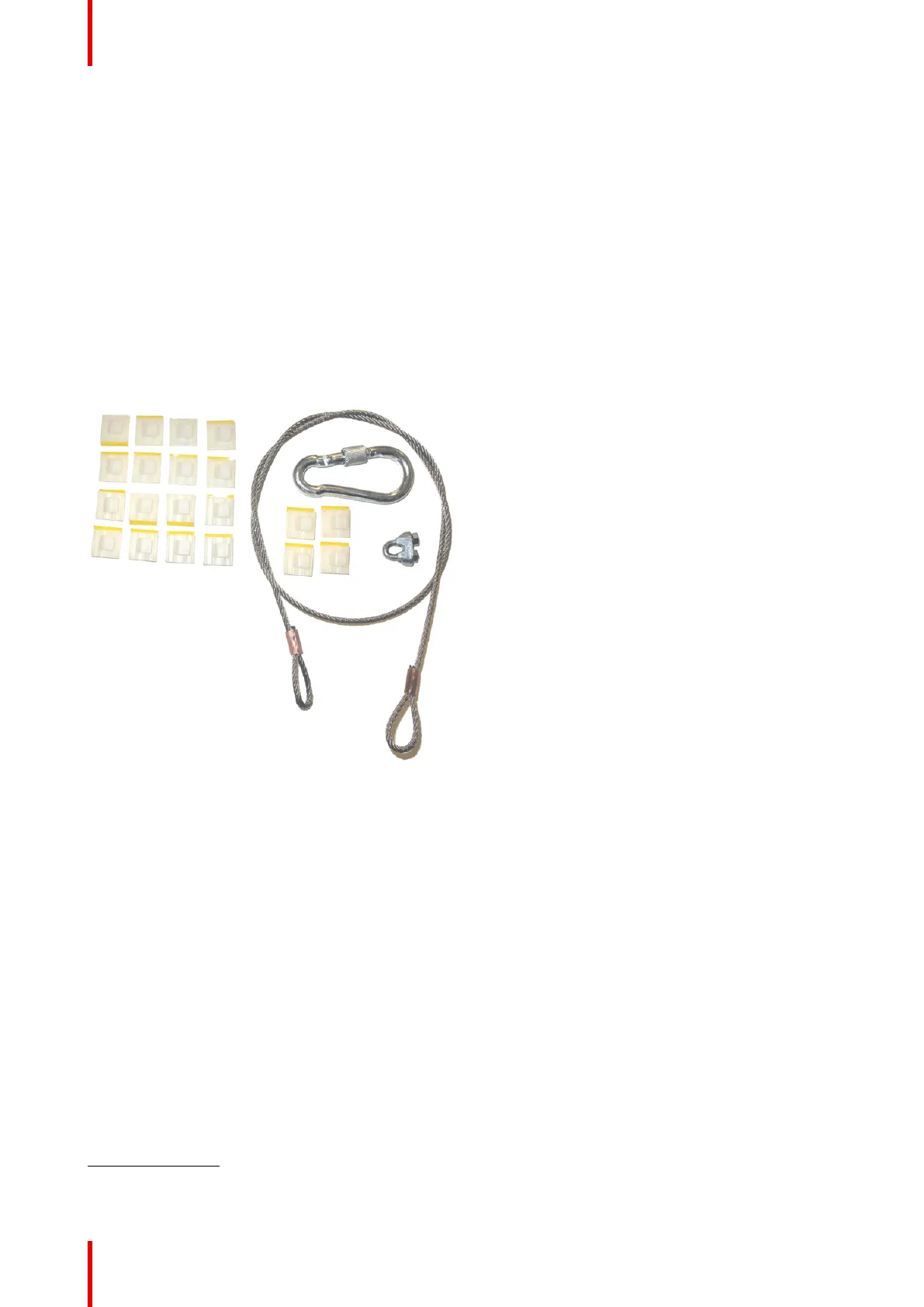

Content of the lens safety cable kit (R9801196)
• Safety Cable (750 mm, Ø3 mm)
• Cable clamp M4 (U-bolt)
• Shackle 7x70 mm
• 20 x Cable clip (16x16 mm, Ø4 mm)
1
Image 3–8
How to install the lens safety cable
1. Ensure that the safety cable and its accessories are in good condition (not damaged)
2. Paste four cable clips on the lens body between motor block and lens flange as illustrated (reference 1).
Orient the open side of the clips towards the front of the lens.
Lenses, Handling and features
1. Only four pieces are needed to assemble the safety cable to a lens. When the safety cable is used on another lens, you should not
remove the cable clips. Instead, use four new ones. There are enough cable clips in the kit to secure up to five different lenses.
