207601–426 /17 F70 Series
Displayport 2 (IR)
Image A–2
This is the default setup, and the properties of the input is as follows:
Property
Value
image.connector.displayport1.colorcomponent.red RED_IN
image.connector.displayport1.colorcomponent.green GREEN_IN
image.connector.displayport1.colorcomponent.blue BLUE_IN
image.connector.displayport2.colorcomponent.red RED_IN
image.connector.displayport2.colorcomponent.green GREEN_IN
image.connector.displayport2.colorcomponent.blue BLUE_IN

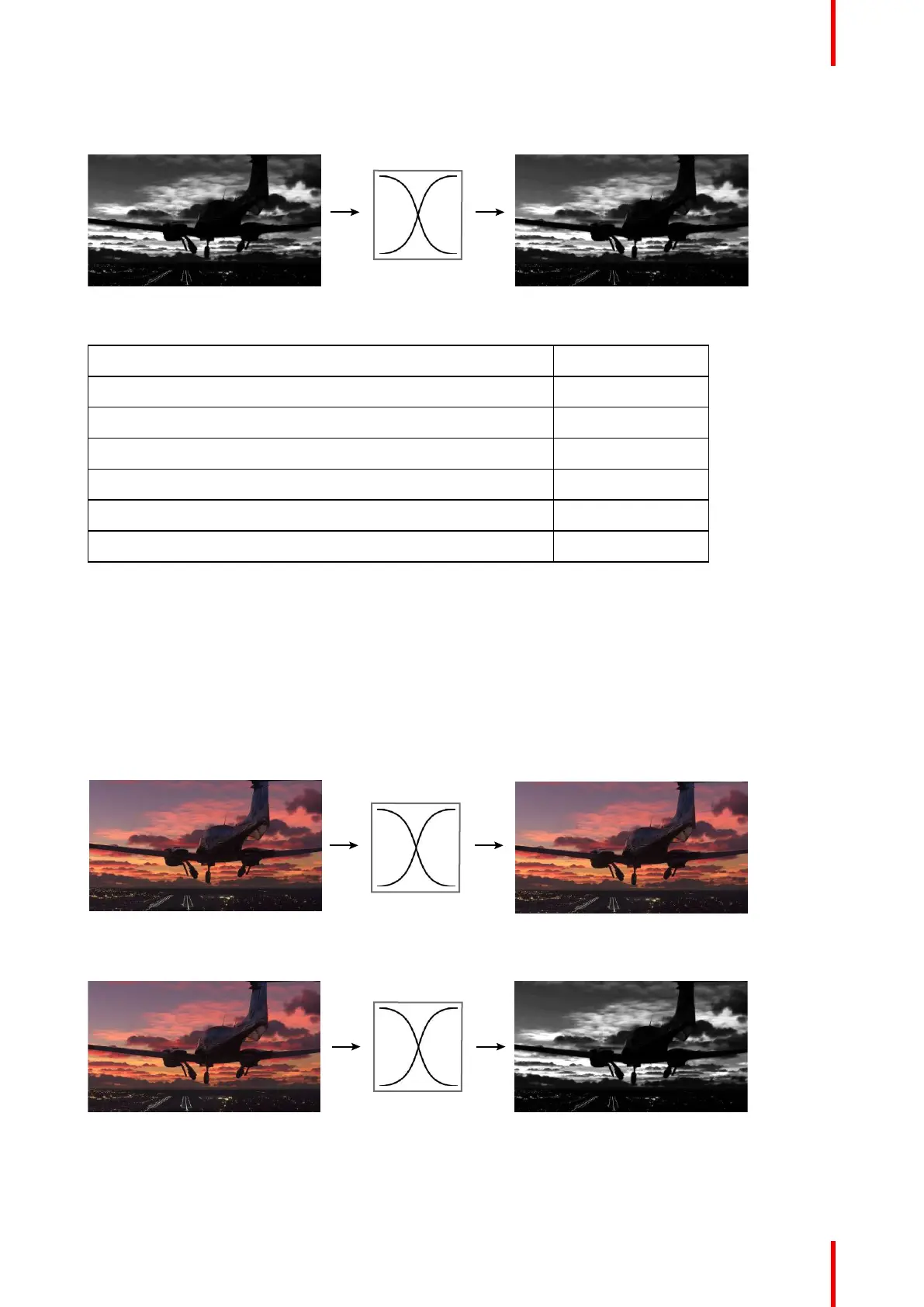

A.4 Cloned image with full RGB input
Cloned image with full RGB input
In this setup the image is rendered for visible light. It has full RGB information. In this setup there is also
requested to take the red color component on the input for the IR channel and fully saturate the DMD with this
component.
Display port 1 (VL) Color mapping DMD
Image A–3
Displayport 2 (IR)
Image A–4
To achieve this result, use the following settings:
Color component mapping
