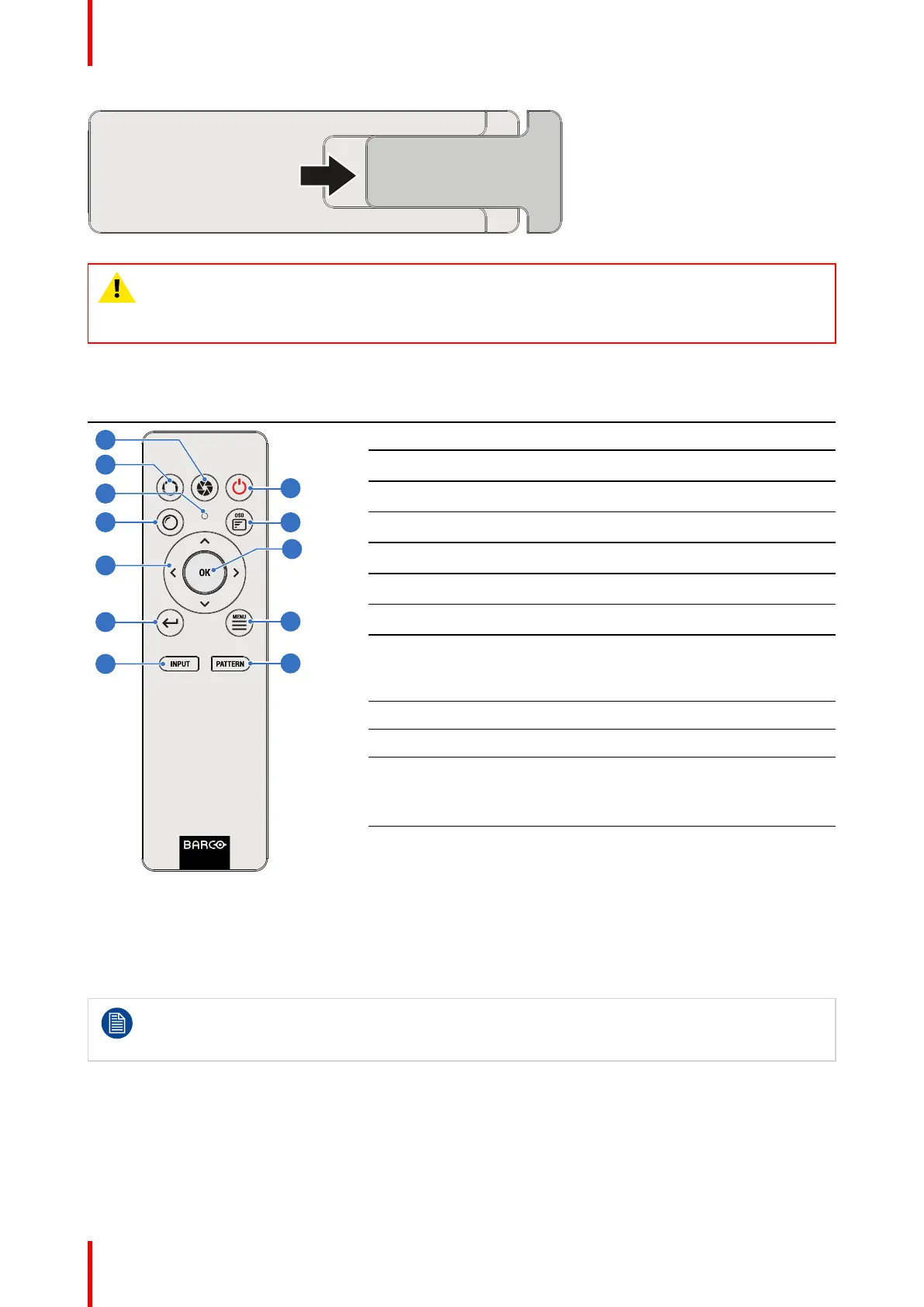

Image 2–12 How to open the battery compartment of the remote
CAUTION: Replace batteries with the correct battery type. Only use AAA size batteries. There is a
risk of explosion if the battery is replaced with an incorrect type.
Make sure the polarities match the + and - marks, as depicted on the inside of the battery
compartment. There is a risk of explosion if the batteries are installed incorrectly.
Functions
Nr
Description
1
2
3
5
6
4
8
11
12
9
10
7
1 Close shutter
2 Open shutter
3 Button pressed indicator
4 Open Lens menu
5 Menu navigation keys
6 Move back one level in menu system
7 Open Source menu
8 Power on / Power off
Note: Only shifts power between Ready and ON
mode.
9 OSD menu on / off
10 Menu confirmation
11 Activate or deactivate the GUI menu.
Note: If pressed while the projector is in stand-by
mode, this will also power up the projector.
12 Open Test pattern menu
2.9 Platinum remote control unit
2.9.1 Remote control, battery installation
Batteries are no longer included in the packaging. It is up to the user to purchase the correct
batteries.
Use 2 AA size (alkaline) batteries in the remote control.
How to install
1. Push the battery cover tab with the fingernail a little backwards (1) and pull, at the same time, the cover
upwards (2).
Getting to know the projector.
