601–426 /17 F70 Series138
How to enable IR/Night Vision.

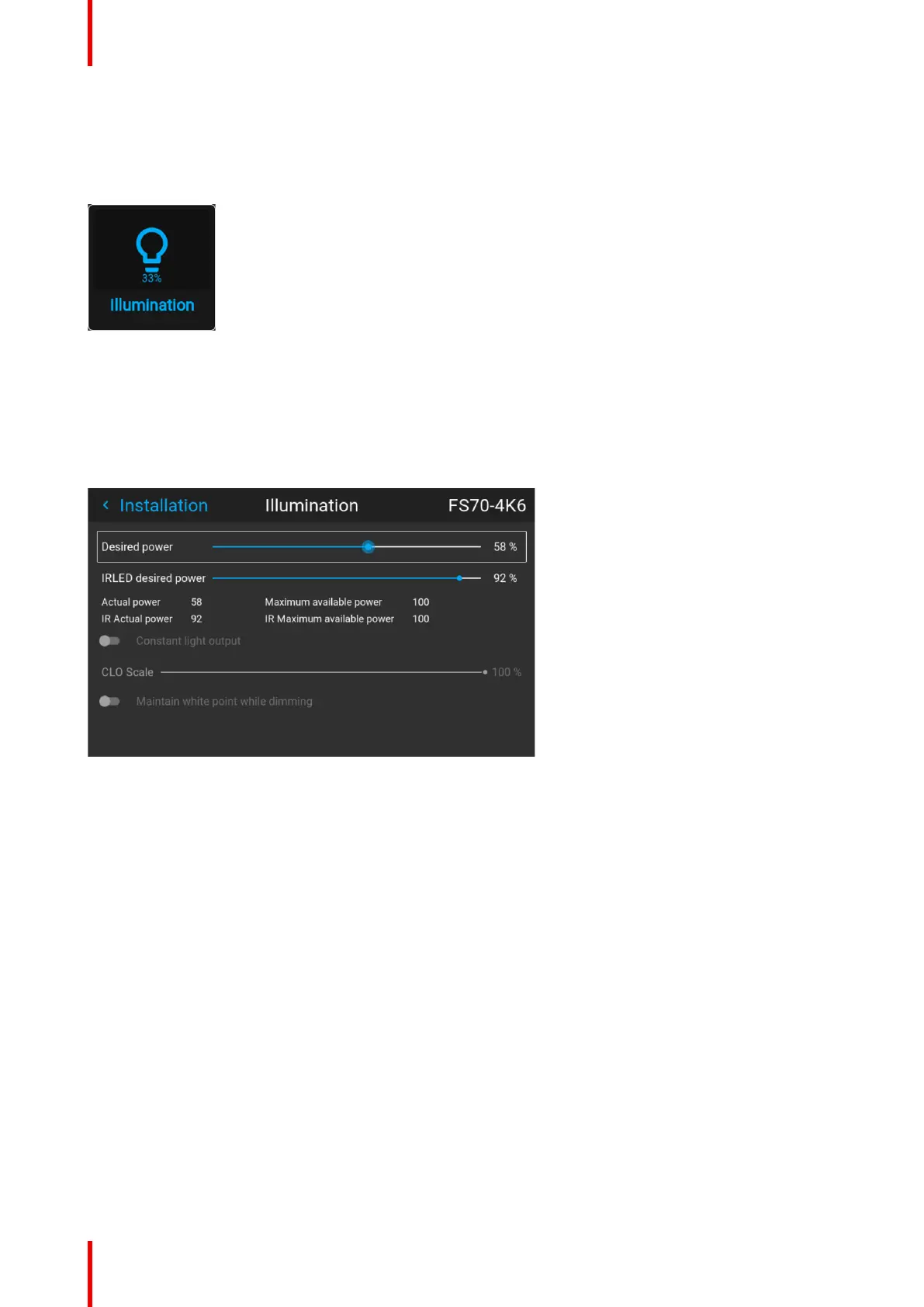

Enter the Menu/ Installation / Illumination menu. This menu shows two sliders; one for the LED Desired power
(daylight), and one for the IR LED Desired power (Night Vision). The sliders are scaled from zero – 100%
power.
Image 8–60
Select the Desired power slider, and move the slider to the left by the arrow keys to nearly 0% to reduce the
light intensity. (Daylight visibility). By this, the IR LED will be dominant, and the image on the screen will be
visible with the Night Vision Goggles. Put on the goggles, and adjust the IR LED slider to obtain an optimal
night vision rendering.
By mixing the intensity (power) of both the Desired power and the IR LED, it is also possible to simulate other
visibility scenarios, such as evening / early night vision.
Image 8–61
8.8 Illumination
About
The LED slider is only available for the FS variant of the projector..
How to reduce the output light
In the menu, select:Installation -> Illumination
The actual illumination setting is indicated in the menu.
Enter the menu, and use the sliders to adjust.
Installation menu
