601–426 /17 F70 Series170

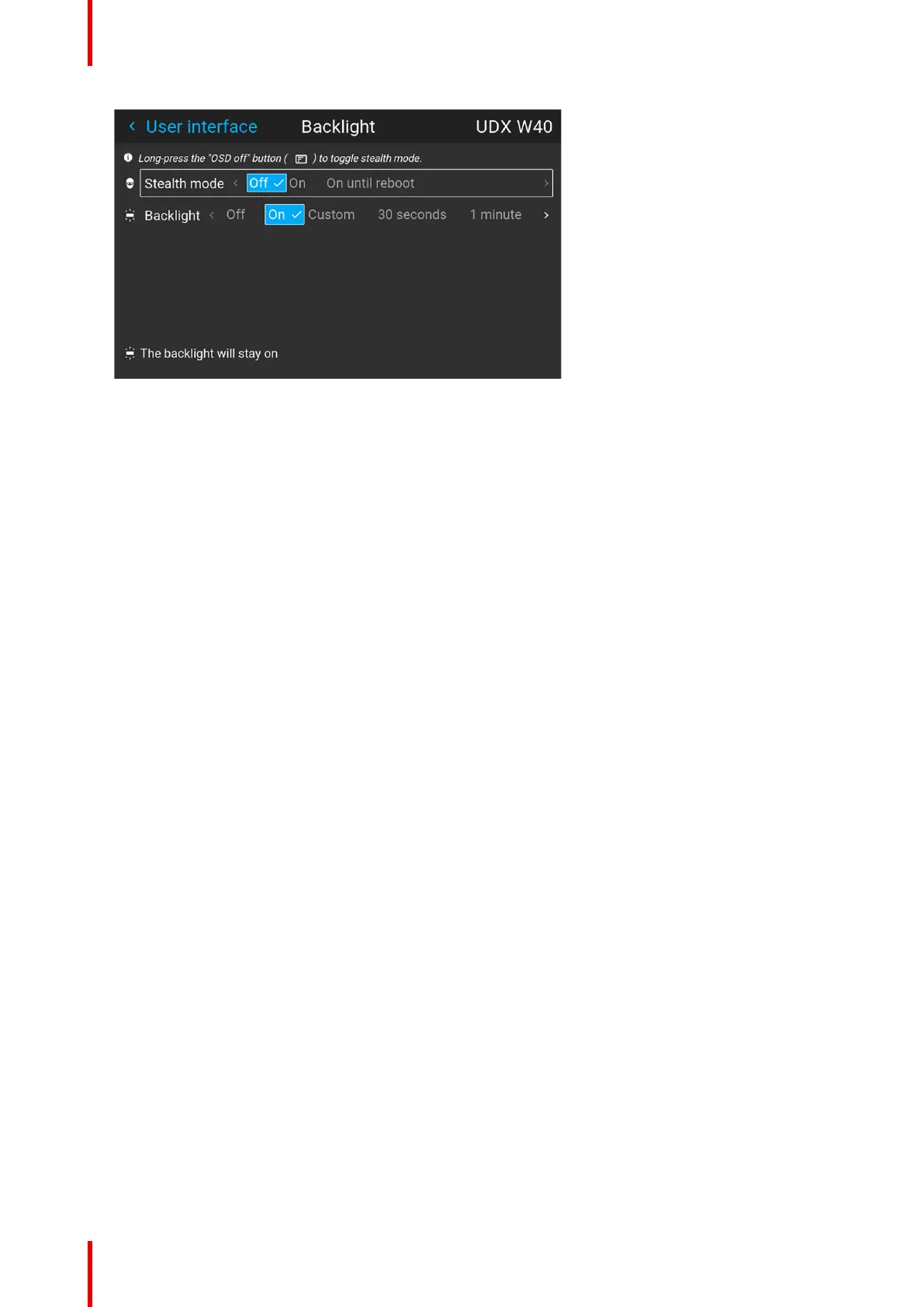

Image 10–37 Example of the backlight menu

2. Choose the desired setting for the backlights. Select one of the predetermined options, or a custom value.

System settings menu
