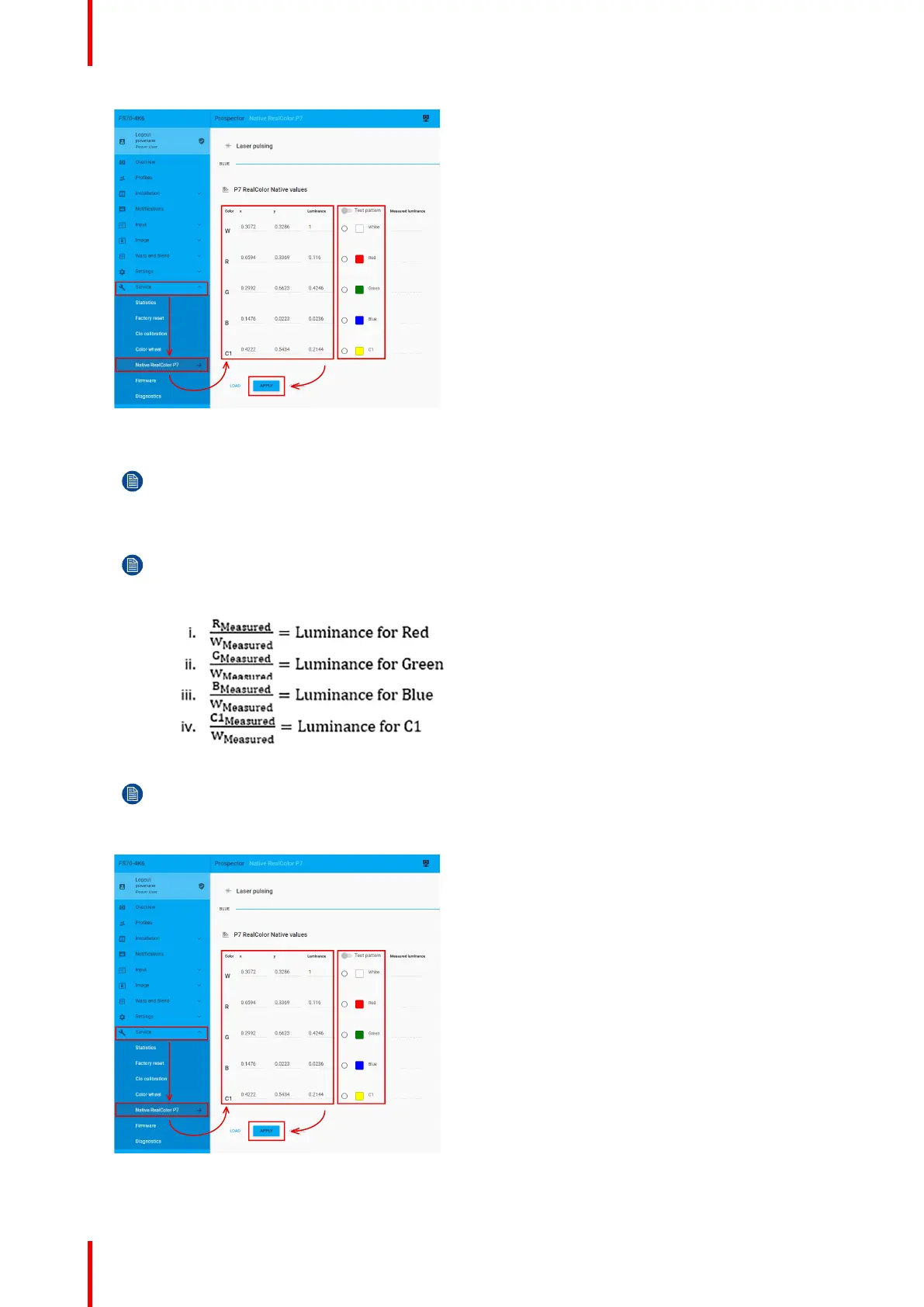

5. Measure x, y and luminance for White, Red, Green, Blue and C1(if applicable) using a chromameter.
Note: Use the test patterns in Service -> Native RealColor P7 for these measurements.
Enable test pattern with the button and select the desired color of the test pattern.
6. Upload the measured values to the projector.
Note: Luminance for White is always 1.
Luminance for Red, Green, Blue and C1(if applicable) is the measured luminance of the individual
color divided by the measured luminance of white:
Image C–26
Note: X and y-coordinates to be uploaded as they are measured, with 4 decimals
7. Press the “Apply” button.
Image C–27
Color calibration guide
