601–426 /17 F70 Series46

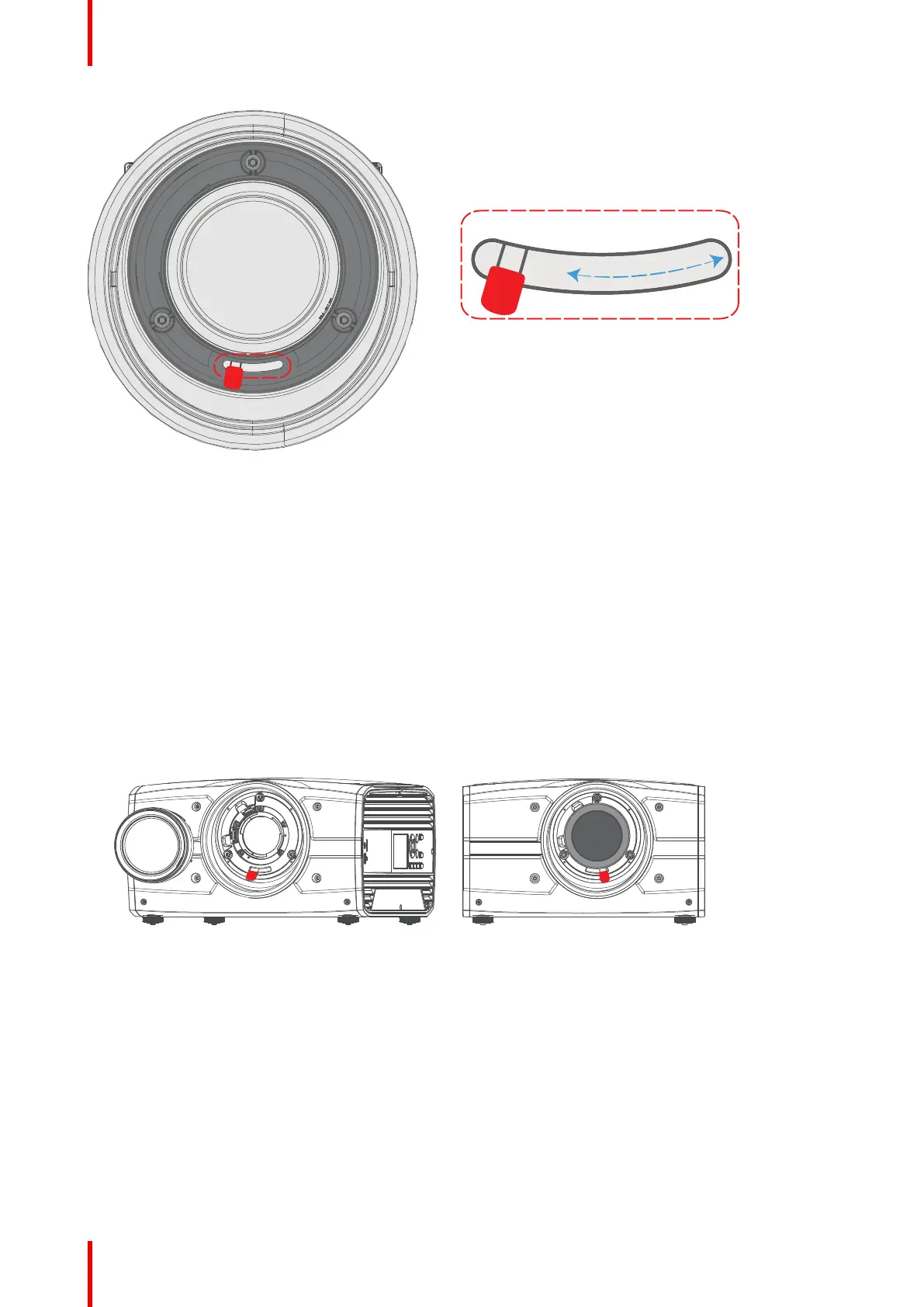

Image 3–3
Install a lens
1. Verify that the projector shutter is activated (shutter is activated when the shutter icon on the projector
keypad is red).
2. Verify that the lens release lever is in its default position at the far left of the slide, as illustrated.
3. Remove the protective cap at the lens bayonet end
4. Align the lens so that the red marking on the bayonet is facing upwards.
5. Position the lens bayonet into the projector lens mount and support in place with one hand.
6. Slide the lens lever to the far right.
7. Verify that the lens is firmly in place before removing your hand from the lens.
Image 3–4
8. In case the projector is mounted above people, it is mandatory to have a lens safety cable installed. See
“Installing the lens safety cable”, page 48
Remove a lens
1. Support the lens with one hand.
2. Use the other hand to slide the lens release lever to the far left position.
3. Pull the lens straight out of the projector lens mount.
4. Replace with another lens, or install the projector lens cap.
Lenses, Handling and features
