Barco Prometheus I Safety & Instruction Manual

6. Input & communication

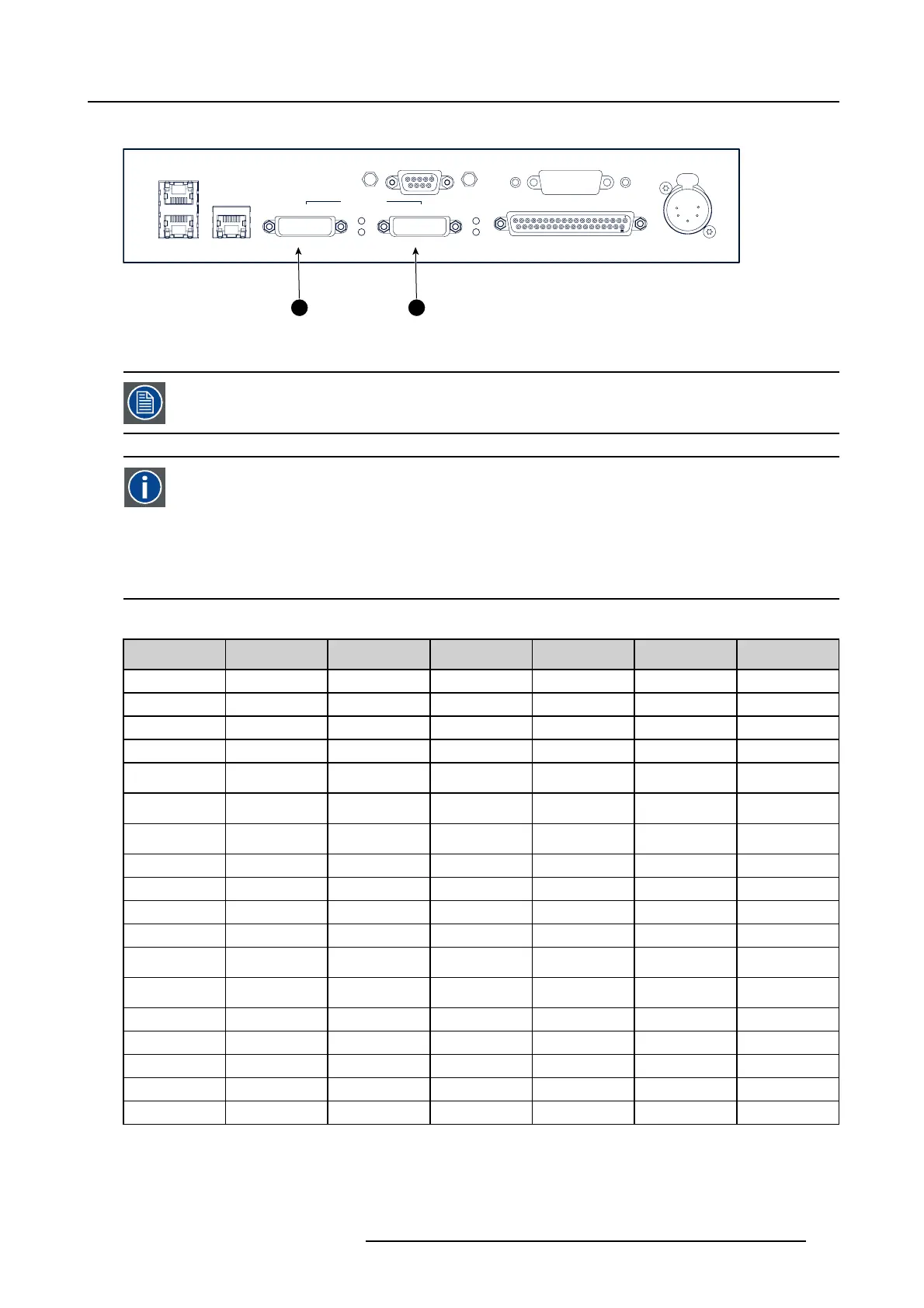

Location of the s ource input ports (DVI)
GENERAL PURPOSE IN/OUT
DVI A DVI B
DVI INPUT
SEL
SYNC OK
SEL
SYNC OK
10 / 100 / 1000 BASE-T
RS232 IN 3D INTERFACE PERIPHERAL PORT
1
2
3
6 7
Image 6-10
6 DVI-D input, port A, Single link + HDCP
7 DVI-D input, port B, Single link + HDCP
In case an ICMP is installed the DVI p orts of the Cin ema Controller are not operational. Use a DVI-to-HDMI
adapter and connect the DVI so urce with the HDM I p ort of the ICMP.
DVI
Digital Visual Interface is a display interface developed in response to the proliferation of digital flat panel displays.
The digital video connectivity standard that was developed by DDWG (
Digital Display Work Group). This connection
standard offers two different connectors: one with 24 pins that handles digital video signals only, and one with 29 pins
that handles both digital and analog video. This standard u ses TMD S (Transition Minimize d Differential Signal) from
Silicon Image and DDC (D isplay Data C hannel) from VESA (Video El
ectronics Standards Association).
DVI can be single or dual link.
DVI Input formats
Input Sou r ce
standard
Vertical rate Scan type Color space S am pling Color depth
Single DVI VES A (640x4 80) 60 Prog ressive RGB 4:4:4 8 b it
Single DVI VES A (640x4 80) 72 Prog ressive RGB 4:4:4 8 b it
Single DVI VES A (800x6 00) 60 Prog ressive RGB 4:4:4 8 b it
Single DVI VES A (800x6 00) 72 Prog ressive RGB 4:4:4 8 b it
Single DVI VESA
(1024x768)
60 Progressive RGB 4:4:4 8 bit
Single DVI VESA
(1024x768)
70 Progressive RGB 4:4:4 8 bit
Single DVI VESA
(1280x1024)
60 Progressive RGB 4:4:4 8 bit
Single DVI 1280x720 60 Progressive RGB 4:4:4 8 bit
Single DVI 1920x1080 60 Progressive RGB 4:4:4 8 bit
Single DVI 2048x1080 50/60 Progressive RGB 4:4:4 8 bit
Single DVI 1920x1080i 50/60 Interlaced RGB 4:4:4 8 bit
Twin DV I ACS
(2048x1080)
50/59.94 Progressive RGB 4:4:4 10 bit
Twin DV I ACS
(2048x1080)
50/59.94 Progressive RGB 4:4:4 12 bit
DVI-3D 3D (2048x1080) 24/eye Progressive RGB 4:4:4 2x8 bit
DVI-3D 3D (2048x1080) 25/eye Progressive RGB 4:4:4 2x8 bit
DVI-3D 3D (2048x1080) 30/eye Progressive RGB 4:4:4 2x8 bit
DVI-3D 3D (2048x1080) 50/eye Progressive RGB 4:4:4 2x8 bit
DVI-4K 4K (4096x2160) 24 Progressive RGB 4:4:4 8 bit
About D VI-4K:
Two columns of 2048x 2160 are needed, whe re DVI-A is left image and DVI-B is right im age. Use Rec 709 for 4K as PFC file.
R5905963 PROMETHEUS SERIES 09/03/2015 103
