12. Convergence
12.1 Open the sealed compartment
This procedure assumes t hat the side co ver of the p rojector is already removed .
CAUTION: This procedure may only be done by a qualified and trained service technician.
Necessary tools
3 mm Allen wrench
How to open the sealed compartment
1. Remove both hexagon head cap screws (1).
1

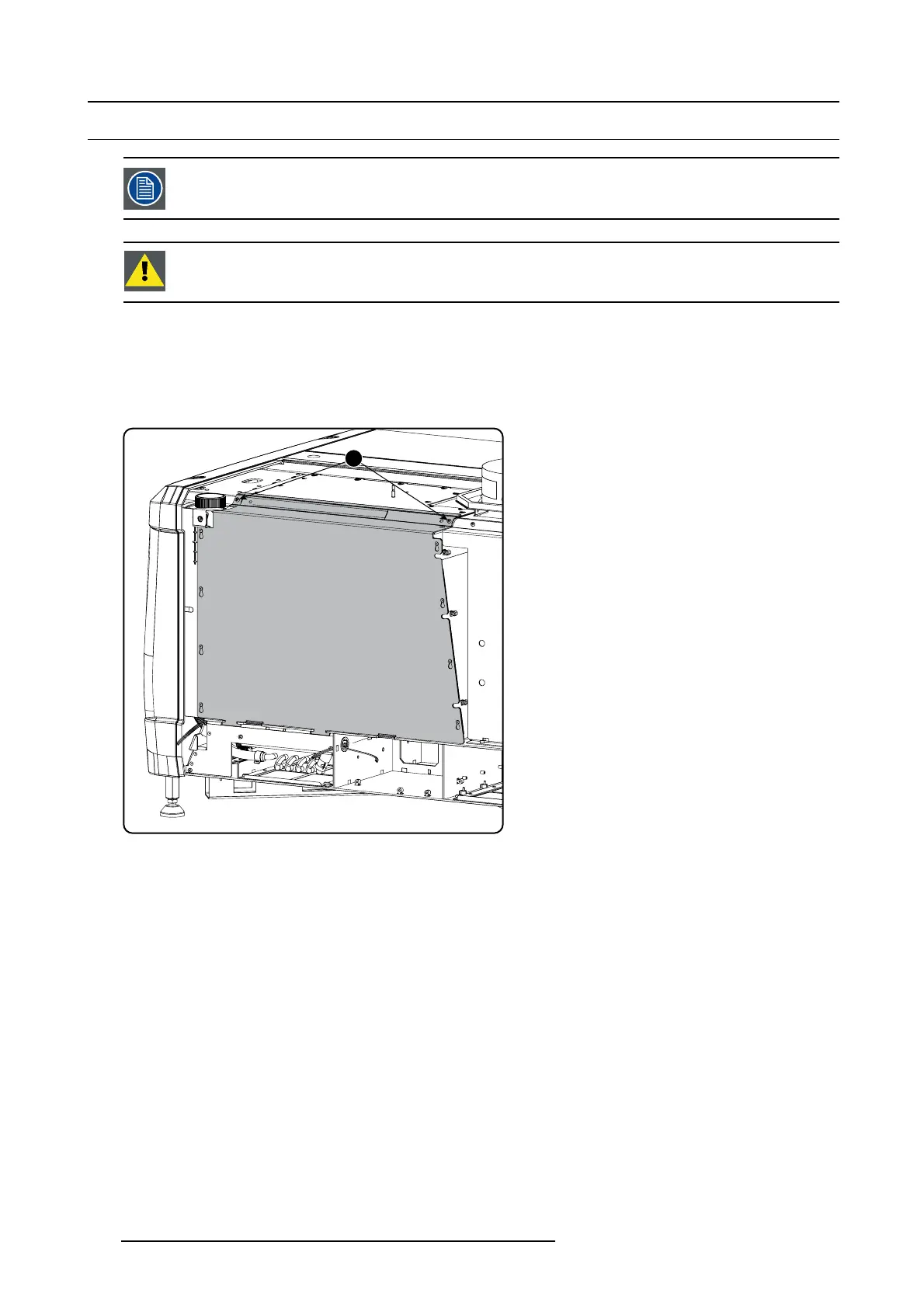

Image 12-1
Sealed cover fixation
2. Lift up the cover plate slightly using both lower lips (2) and then remove the cover by t aking it away from the projector.
158
R5905963 PROMETHEUS SERIES 09/03/2015
