10. Removal and installation of the projector covers
10.9 Installation of the rear cover
Necessary tools
Flat screwdriver
How to install
1. Install the rear cover o f the projector doing the following:
a) Bring the rear cover to wards its final position.
b) Gently push the locking studs into the receivers (1).
1
1
2
2

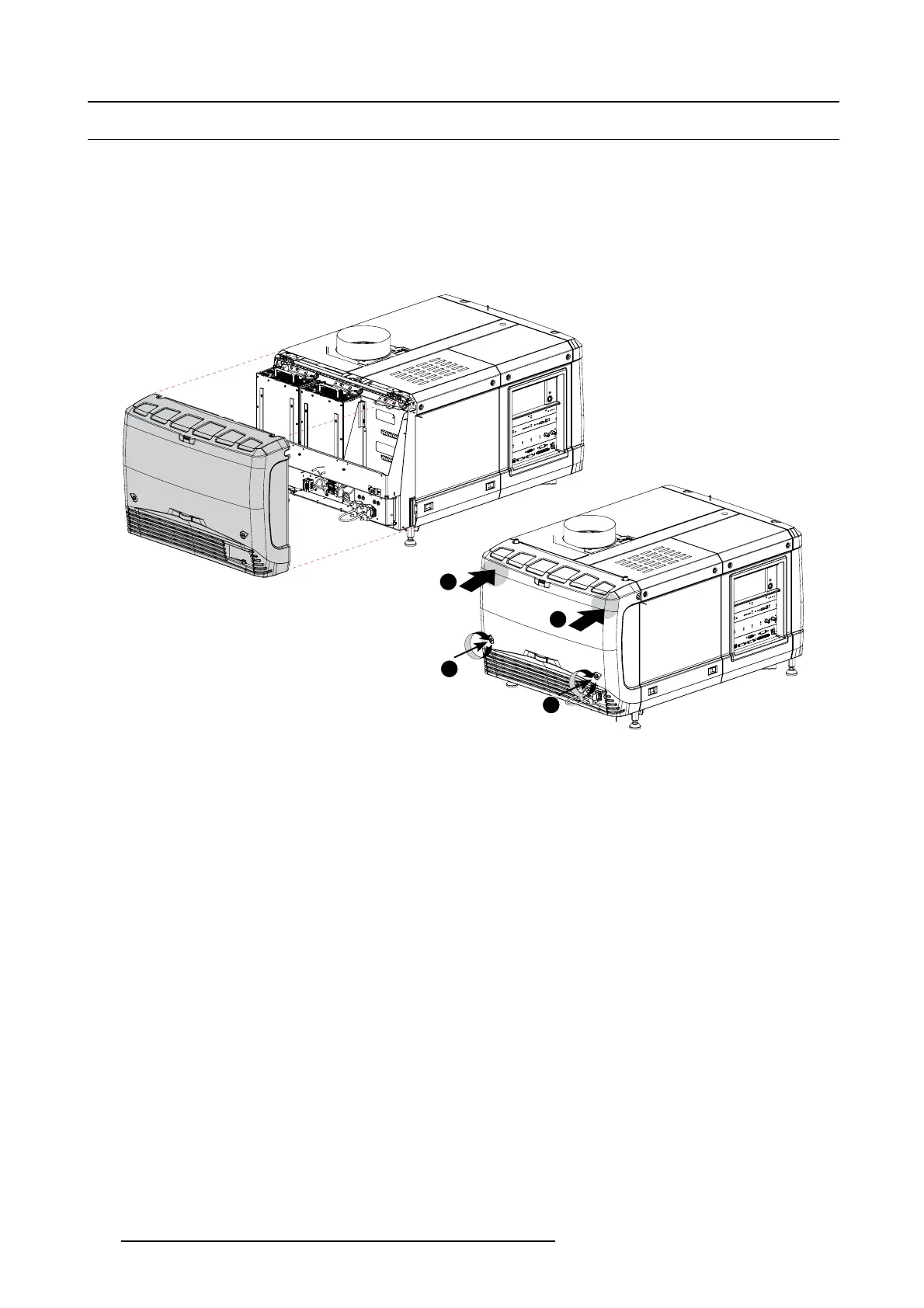

Image 10-19
Mount rear cover
2. Secure the cover by fastening the captive screw at the bottom of the rear cover (2).
146
R5905963 PROMETHEUS SERIES 09/03/2015
