7. ICMP
7.4 ICM P source input ports

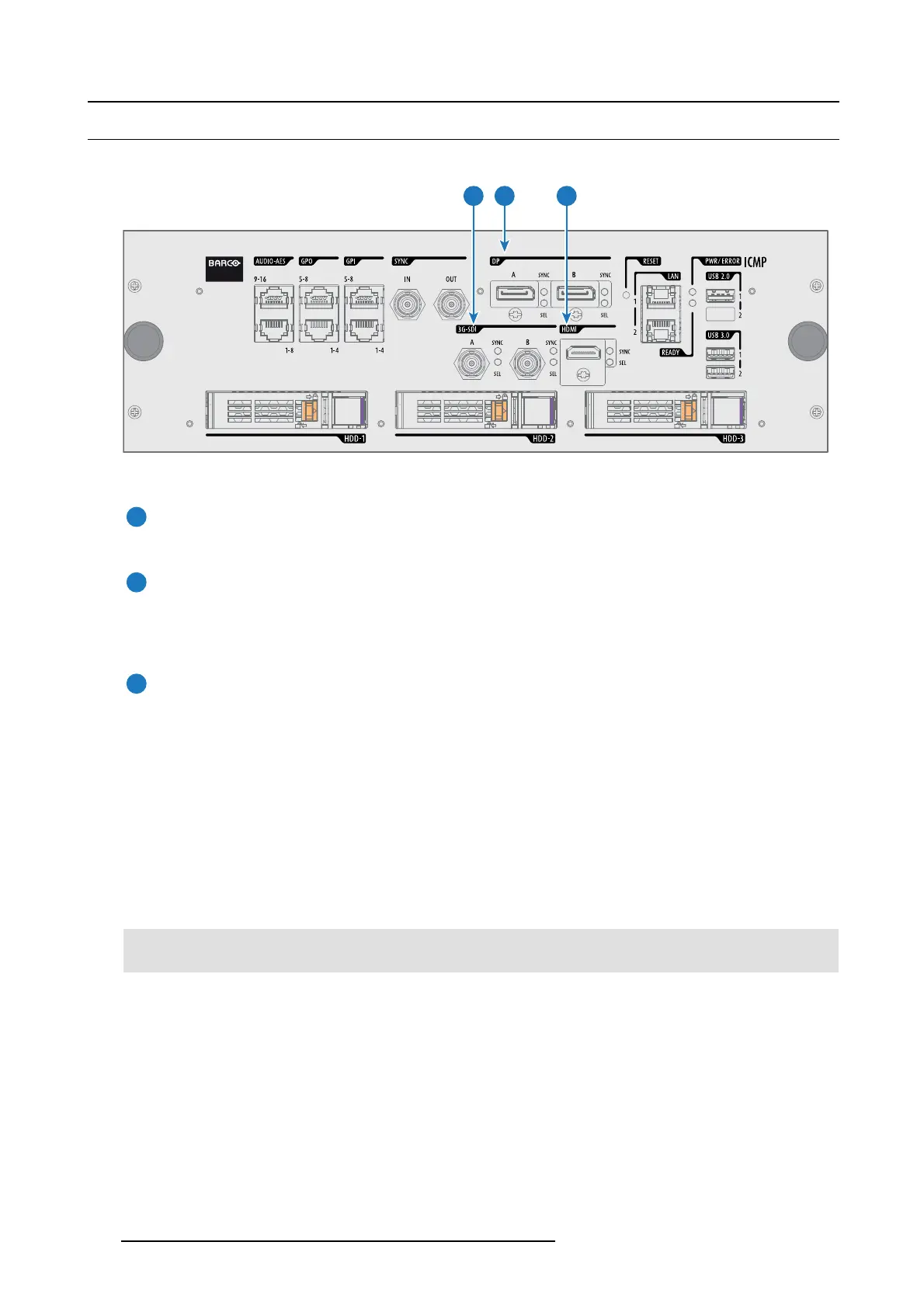

Location of the source input ports
89 10
Image 7-6
Functionality
8
DisplayPort A (B)
DisplayPort connector to connect a video source.
9
3G-SDI A (B)
SDI connector to connect a video source.
10
HDMI
HDMI connector to co nnect a video source.
DisplayPort specifications
Supported Mode s:
• DP1.1a, 4-lanes RBR/HBR
• Audio : none
• Content Protection : HDCP1.4
• Colordepth : 8 bit/color and 10 bit/color.
• 3D-stereo mode : frame sequential (embedded s tereosync on DP required from the source)
DisplayPort A an d DisplayPort B accept the following video-timings:
Standard timings
@EDID
Color depth
(bpc)
Display Mode
(A, B)
Display M ode
2D / 3D
640 x 480 @60Hz
8, 10
Single
2D
800 x 600 @60Hz
8, 10
Single
2D
1600 x 1200 @ 60Hz
8, 10
Single
2D
1920 x 1200 @ 60Hz
8, 10
Single
2D
2048 x 1536 @ 60Hz 8, 10 Single 2D
1280 x 800 @60Hz 8, 10 Single 2D
1280 x 720 @60Hz 8, 10 Single 2D
1680 x 1050 @ 60Hz 8, 10 Single 2D
110
