3. Physical installation
3.3 Access to the power connection
Necessary tools
Flat screw driver 6 mm
How to access
1. Remove the back cover.
2. Loosen both captive screws ( 1).
1

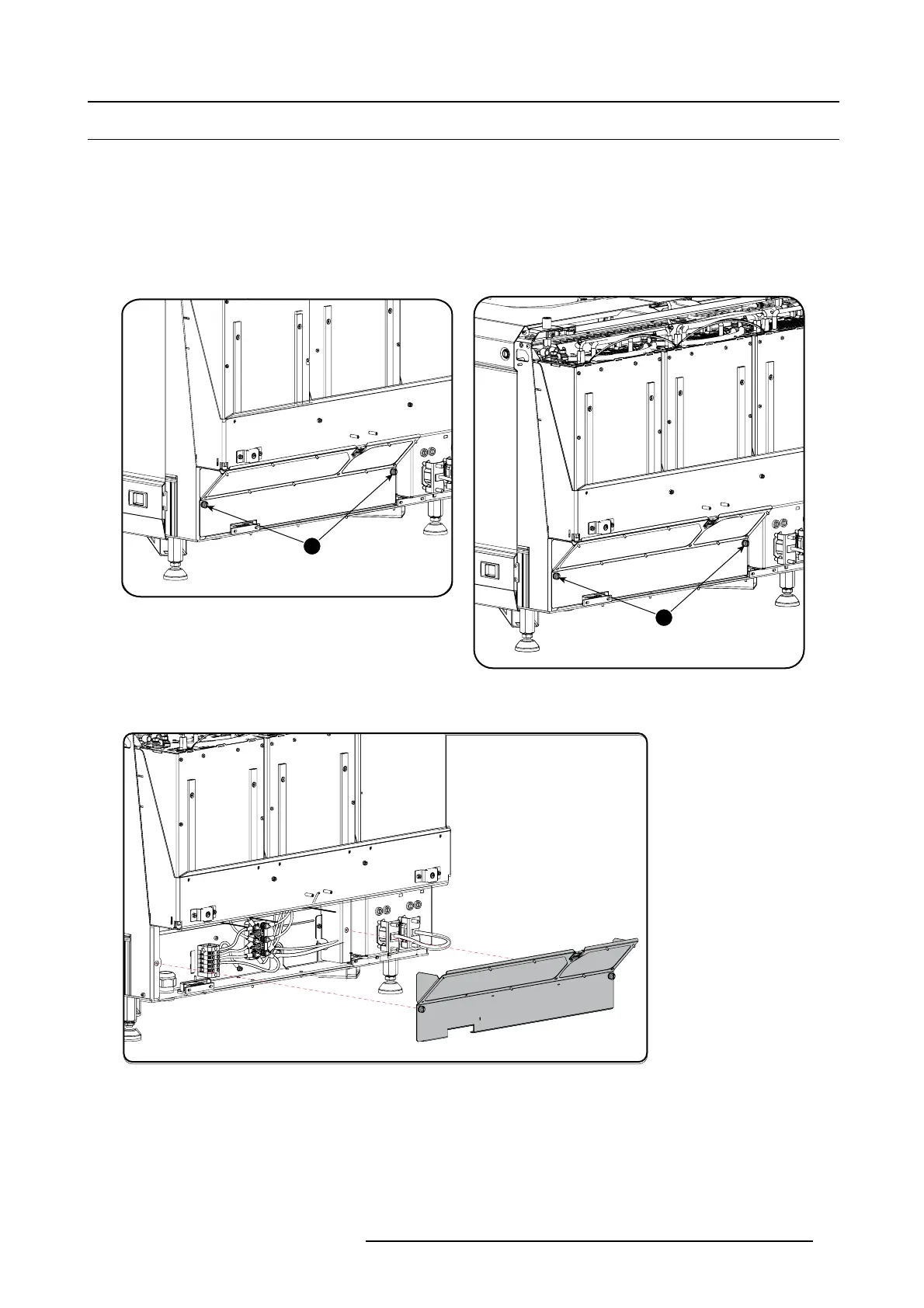

Image 3-7
Power connection cover, captive screws
1
Image 3-8
Power connection cover, captive screws
3. Slide o ff the power con nection cover.
Image 3-9
Terminal strip accessible
The terminal strip and c onnection plate is accessible.
