4. Lamp & Lamp House
4.10 Installatio n of the Lamp House
WARNING: This procedure may only be performed by qualified technical service personnel.
CAUTION: Du e to its high internal pressure, the lamp may exp lode in either hot or cold states if imp roperly
handled.
Necessary tools
10mm nut driver or fl at screw driver.
How to install the Lamp House in the projector?

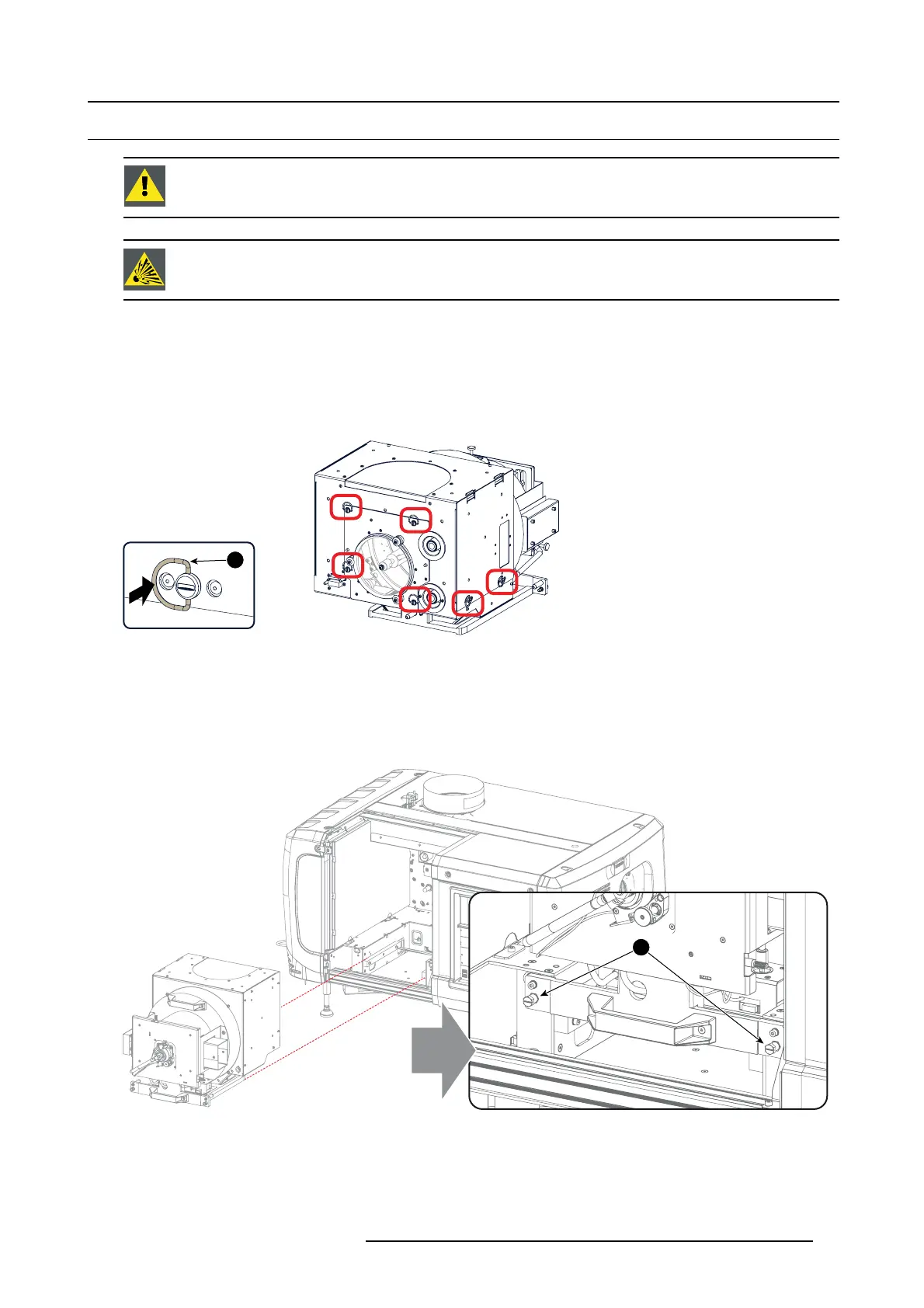

1. Check if the six quarter turn screws turning wires (reference 1image 4-49) are flush with the cov er or interference will oc cur while
inserting the Lamp H ouse into the projector.
1
Image 4-49
2. Grip the Lamp H ouse by both handles and place the front of the Lamp House on the base plate inside the lamp compartment of
theprojector,liningupthefootoftheLampHousewiththeslotsonthebase.
3. Push the Lamp House fully into the slots.
4. Secure the Lamp House by fastening the two retaining screws (reference 1 image 4-50) at the base o f the Lamp House.
5. Reinstall the cover of the Lamp Hous e compartment.
1
Image 4-50
R5905963 PROMETHEUS SERIES 09/03/2015 65
