4. Lamp & Lamp House
4.4 Removal of the Lamp House
WARNING: This procedure may only be performed by qualified technical service personnel.
WARNING: The Lamp House is very hot after operation. To avoid burns, let the projector cool down for at
least 15 minutes before proceeding to remove the Lamp House.
CAUTION: Du e to its high internal pressure, the lamp may exp lode in either hot or cold states if imp roperly
handled.
Necessary tools
10mm nut driver or fl at screw driver.
How to remove the Lamp House from the projector?
1. Make sure the projector is switched off and cooled down.
2. Remove the cover of the Lamp House compartment.
3. Release the two retaining screws (reference 1 image 4-7) at the base of the Lam p House. Use a 10mm nut driver or a flat screw
driver.
4. Remove the Lam p House as follows:
a) Grip the Lamp House by the bottom handle and partially slide it out of the lamp compartment
b) Grip the Lamp House by both handles and remove it completely from the projector.
c) Place the Lamp Hous e on a stable support.
Caution: Be aware of the weight of the lamp assemb ly. Tak e the necessary precautions to avoid personal injury.
1

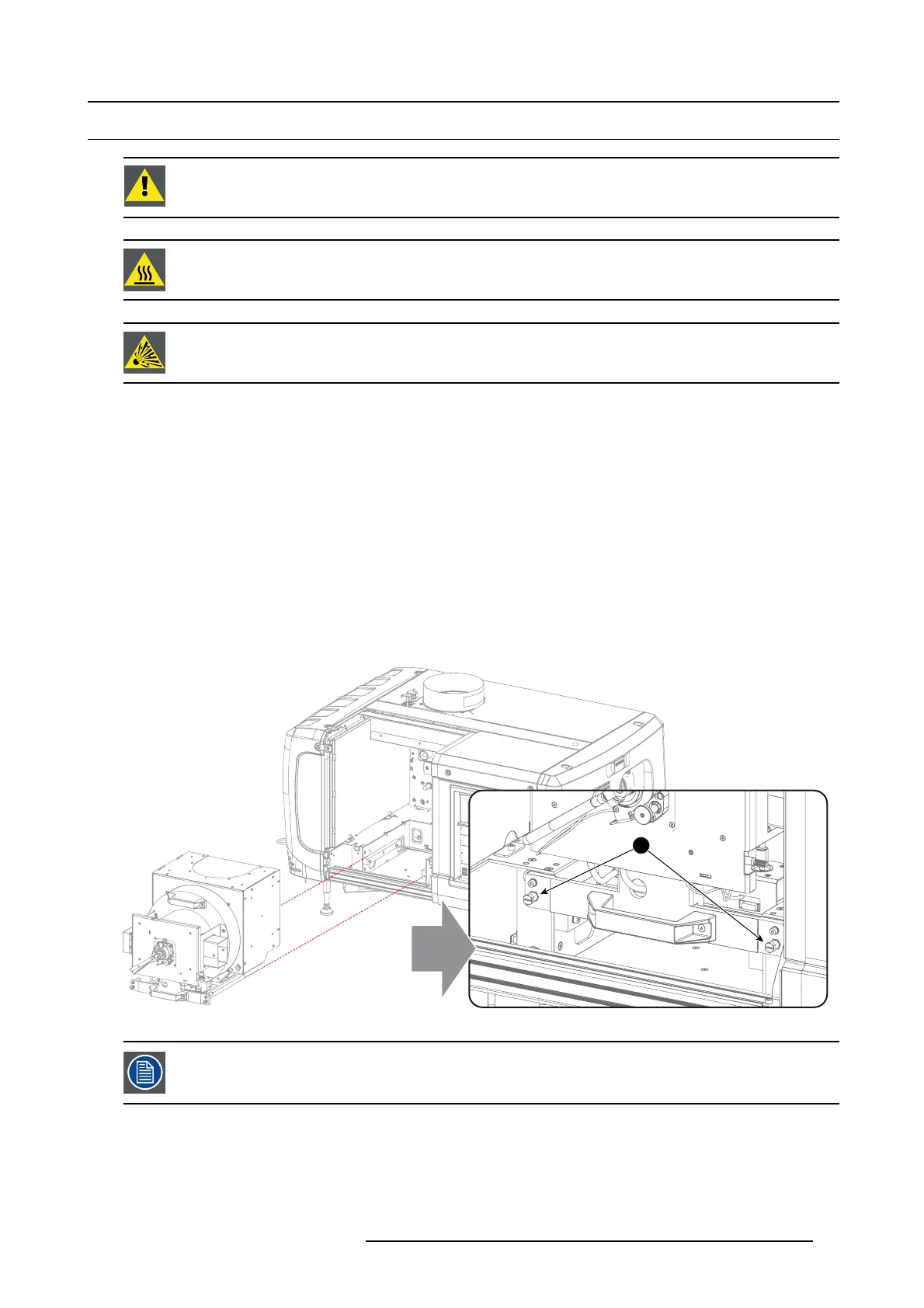

Image 4-7
This procedure is illustrated with a Motorized L amp House. Nevertheless, the instructions are also applicable
for the manual Lamp House.
R5905963 PROMETHEUS SERIES 09/03/2015 43
