6. Input & communication
6.4 HD-SDI Input Module (optional)
Depending on the projector configuration the projector card cage is either equipped with an ICP or ICMP. In
case an ICP is installed then an IMB, IMS , or HDSDI input module can be optionally inserted into the slot below
the ICP. This is n ot the case if the ICMP is installed. For m ore informa tion abo ut the ICMP see chapter called
ICMP.

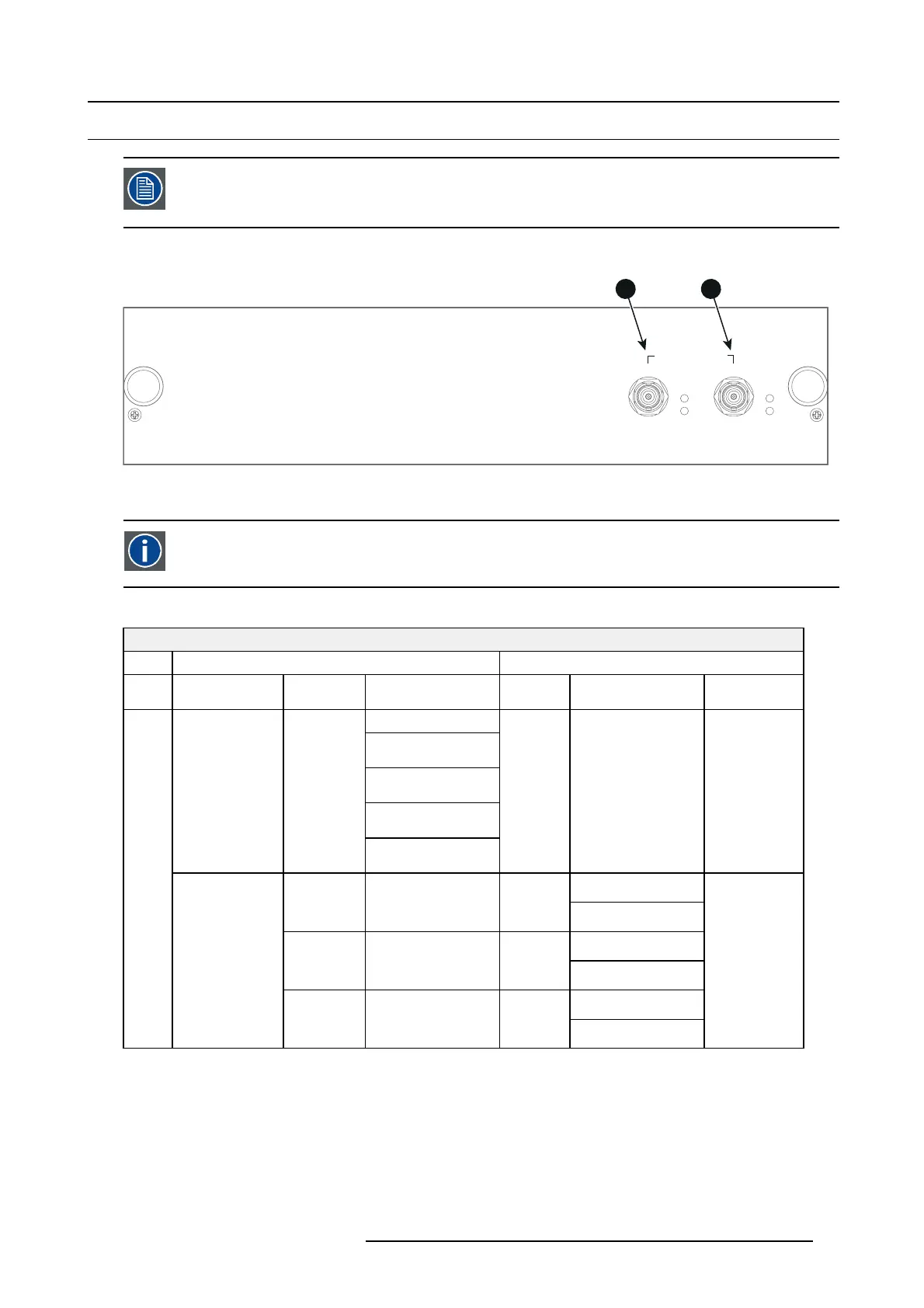

Location of the source input ports
SMPTE 292/424 IN
AB
SEL
SYNC OK
SEL
SYNC OK
1 2
Image 6-4
1 SMPTE 292/424 input, port A (maximum cable length of 30 m allowed)
2 SMPTE 292/424 input, port B (maximum cable length of 30 m allowed)
SMPTE
Society of Motion Picture and Telev ision Engineers - A global organization, based in the United States, that sets stan-
dards for baseband visual communications. This includes film as well as v ideo standards.
HD-SDI settings
Source: 2K
General settings Advanced settings
Port Port type Mode Scan type Color
space
Pixel mapping Calibration
Progressive
Progressive - field bit
normal
Progressive - field bit
inverted
Progressive SF - 2nd
field dominant
HDSD I S ingle link 4 :2:2 1 0
bits/color
Progressive SF - 1st
field dominant
YCbCr HDSDI-Single link Single
3G-level A-Single link4:2:2 12
bits/color
Progressive YCbCr
3G-level B-Dual link
3G-level A-Single link
4:4:4 10
bits/color
Progressive
RGB
3G-level B-Dual link
3G-level A-Single link
AorB
3GSDI link
4:4:4 12
bits/color
Progressive
XYZ/RGB
3G-level B-Dual link
Single
R5905963 PROMETHEUS SERIES 09/03/2015 93
