7. ICMP
7.6 ICMP HDD status LEDs
ICMP HDD status LEDs
54

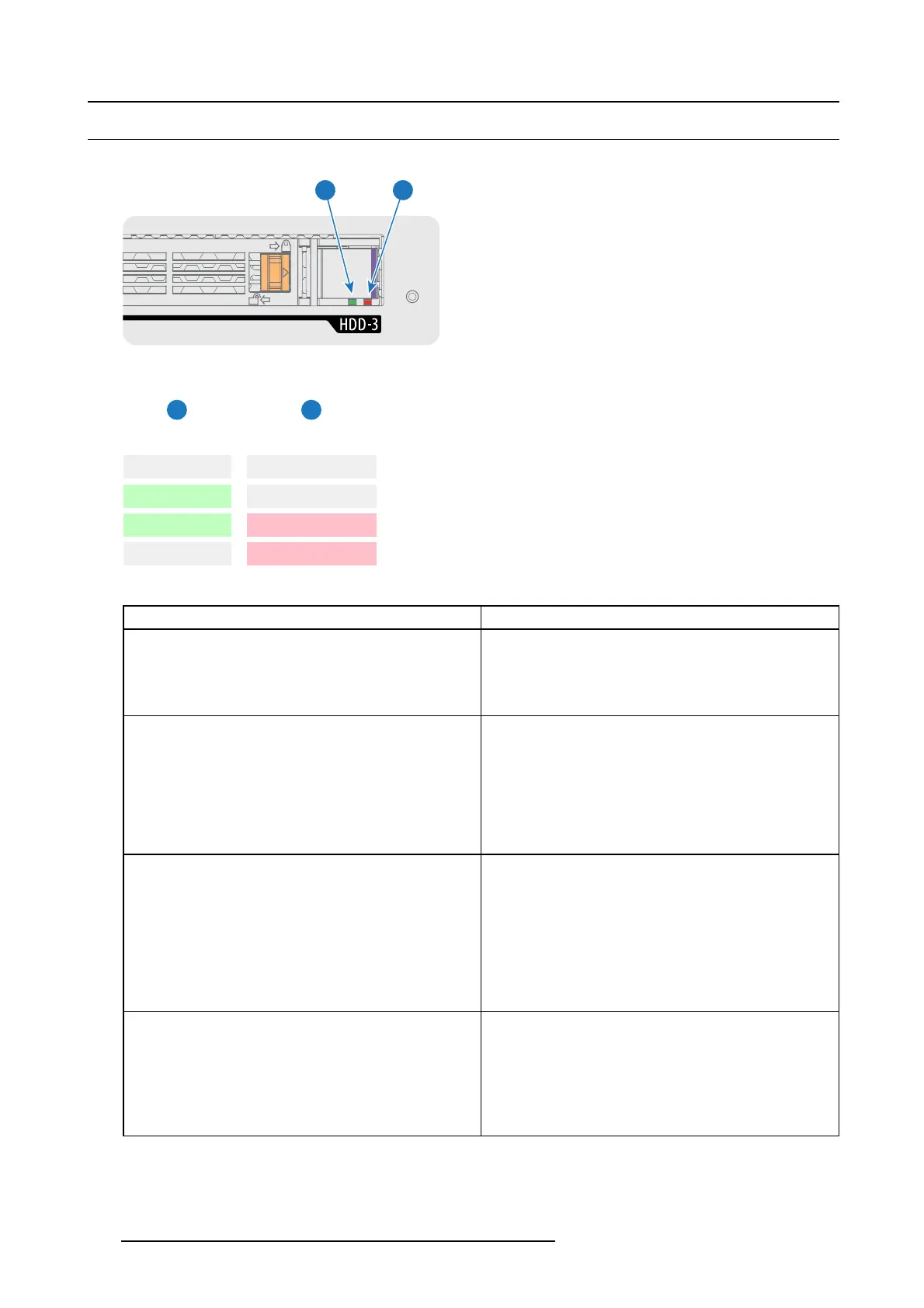

Image 7-8
Status overview PW R/ERROR and RE ADY LEDs:
4 5
HDD I/O
RAID
ICMP HDD Status
Off Off HDD idle / Disk in R AID OK.
Blinking G reen Off HD D I/O activity / Disk in RAID OK .
Blinking Green
Blinking Red
HDD I/O activity / RAID rebuilding.
Off Red HDD idle / Disk error. See t roubleshooting table below for curative actions.
Troubleshooting
Situation Solution
Onediskfailed(redLED)+RAID degra ded.
The ongoing event is not interrupted.
Note: The disk status (RAID degraded) can be retrieved via the
(Web) Commander. See user guide of the (Web) Commander.
Hot swap the defect HDD with an original HDD spare part. No
need to switch off the power. Ensure to inser t the HDD firm ly.
See procedure "Installing a HDD into the ICMP", page 118.
Result: As soon the new HDD is detected by the ICMP the
rebuild of the RA ID is started (Blinking red LED).
One disk failed (red LED) + E rror 10580 “local storage not
available”.
Note: The disk status (Error c ode) can be retrieved via the
(Web) Commander. See user guide of the (Web) Commander.
1. Switch off the power.
2. Replace the defect HDD with an original HDD spare part.
See procedure "Removing a HDD form the ICMP", page
117, and "Installing a HDD into the ICMP", pag
e 118.
Ensure to insert the HDD firmly.
3. Switch on the power.
Result: As soon the new HDD is detected by the ICMP the
rebuild of the RA ID is started (Blinking red LED).
Multiple disks failed (mu ltiple red LEDs) + RAID broken.
Note: The disk status (RAID broken) can be retrieved via the
(Web) Commander. See user guide of the (Web) Commander.
1. Switch off the power.
2. Replace all defect HDDs with o riginal HDD spare parts.
See procedure "Removing a HDD form the ICMP", page
117, and "Installing a HDD into the ICMP", pa
ge 118.
Ensure to insert the HDDs firm ly.
3. Switch on the power.
4. Start “RAID Initialize”. S ee user g uide of the
Communicator.
Result: a new empty RAID is c reated.
All HDD LEDs rem ain off + Error 10580 “local storage not
available”.
Note: The disk status (Error c ode) can be retrieved via the
(Web) Commander. See user guide of the (Web) Commander.
1. Switch off the power.
2. Reseat all HDDs. See procedure "Removing a HDD
form the ICM P", page 117, and "Installing a HD D into the
ICMP", page 118. E nsure to insert the HDDs firmly.
3. If problem remains try “RAID Initialize”. See user guide of
the Communicator. Note that all content will be lost!
4. If problem remains contact Service for further instructions.
114 R5905963 PROMETHEUS SERIES 09/03/2015
