7. ICMP
7.9 Installing a H DD into the ICMP
This procedure assumes that the HDD slot of the ICMP is empty. If no t, s ee procedure "Removing a HDD form
the ICMP", page 117.
CAUTION: Always use a new empty spare p art HDD from Barco to replace a malfunction HDD. Do not use a
HDD from another ICMP HDD set.

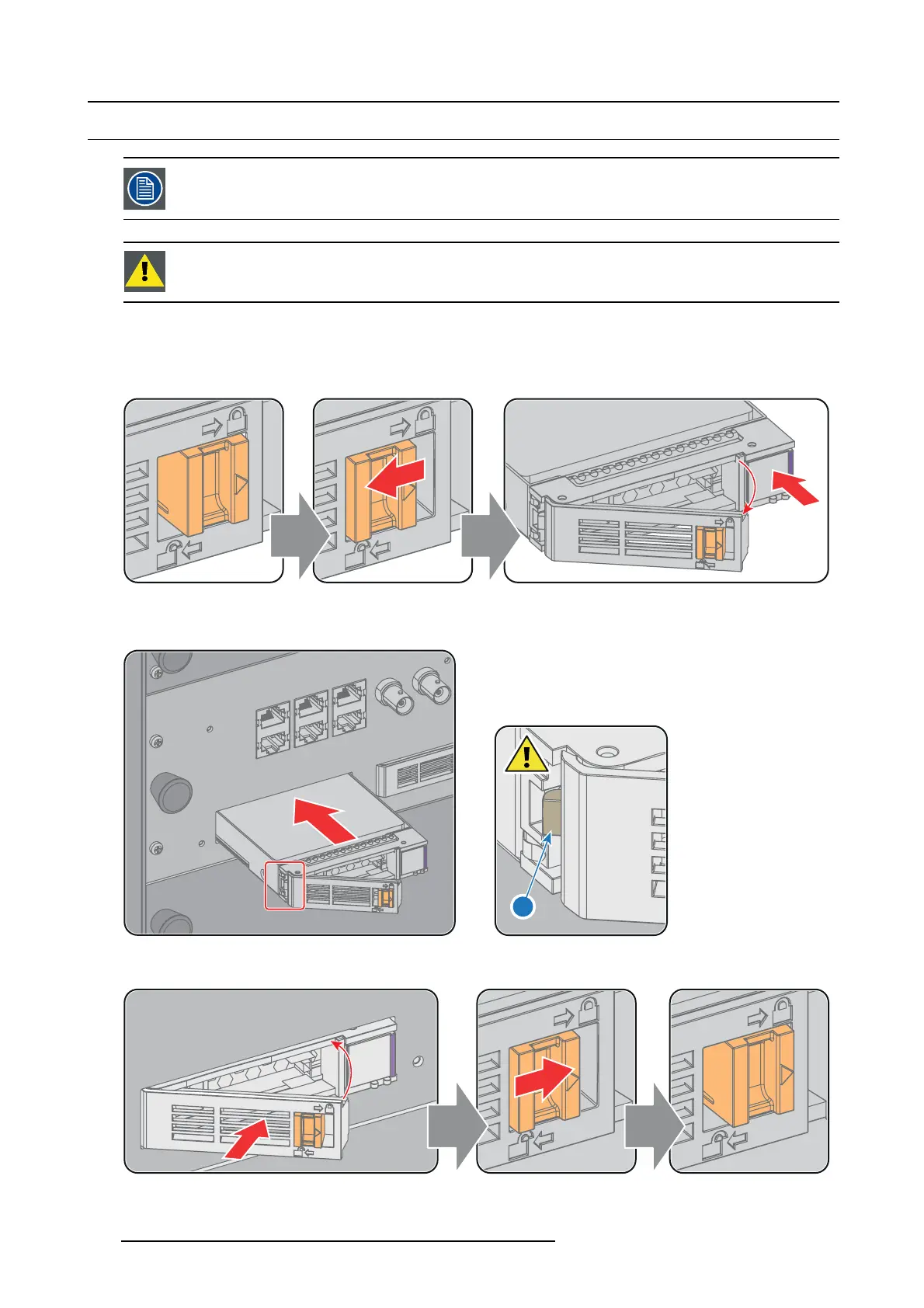

How to install a HD D ?
1. Ensure that the projector is switched off.
2. Prepare the HDD for insertion by moving the latch towards the left and push the unlock bu tton to open the han dle.
Image 7-12
3. Insert the HDD into the HDD slot. Ensure that the handle is sufficiently open so that the hook (reference 1) of the han dle can
pass the front plate of the ICMP.
1
Image 7-13
4. Push the HDD c ompletely and firmly inside its slot, close the handle, and move t he latch towards the right.
Image 7-14
5. Switch on the projector.
118
R5905963 PROMETHEUS SERIES 09/03/2015
