5. Lenses & lens holder
5.3 Lens installation

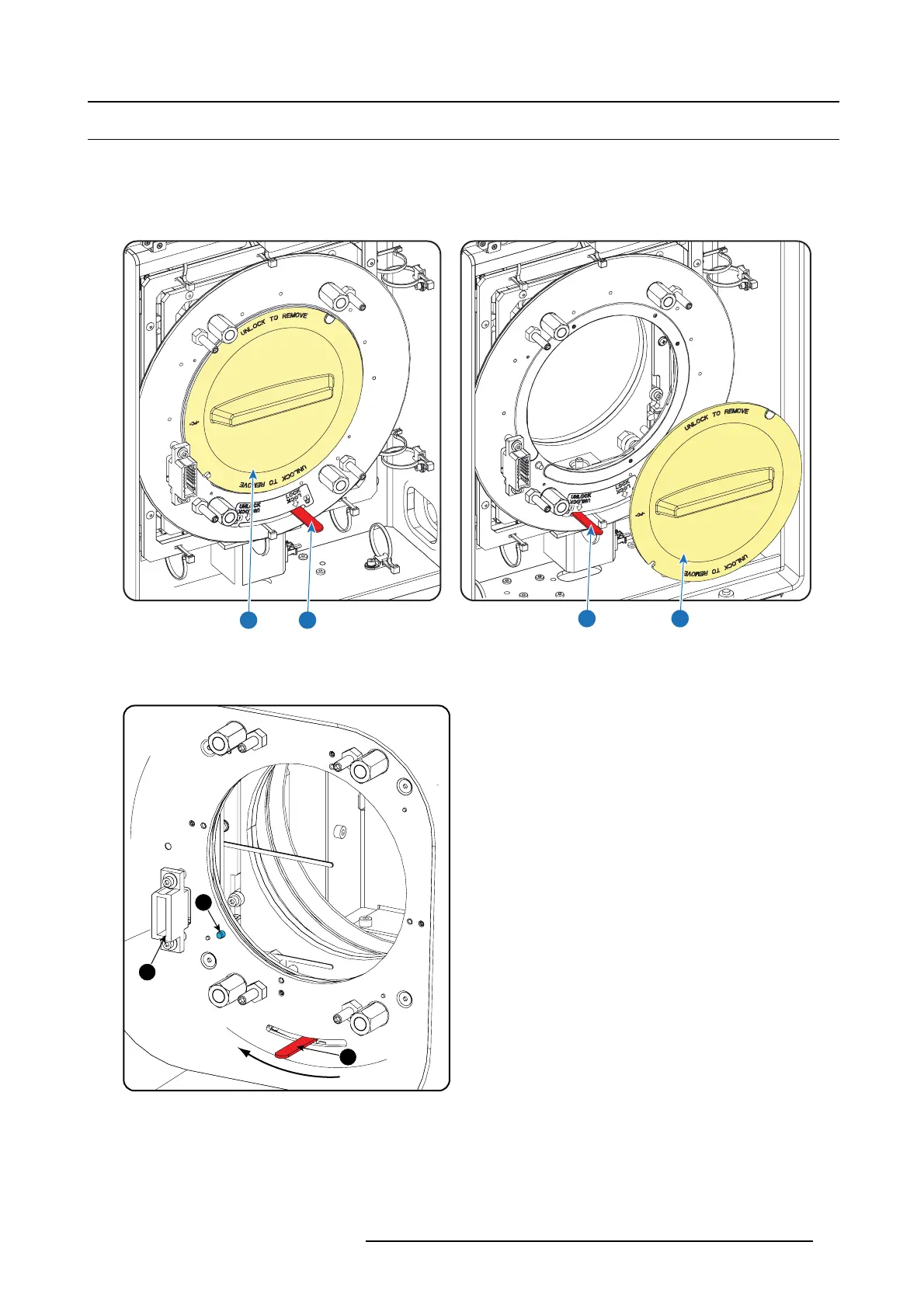

How to install a lens?
1. Remove the plastic lens holder cover.
a) Put the loc k (1) into the unloc k position.
b) Take out the plastic cover.
12
1 2
Image 5-16
2. Take the lens assembly out of its packing m aterial and remove the lens caps on both sides.
3. Place the lens holder in the “unlocked” position by moving the lens lock handle (1) towards the lens power supply socket (2).
1
2
3
Image 5-17
Unlock l ens holder
4. Ensure that the lens holder stands in the On- Axis position (horizontal and v ertical mid position).
Note: The lens holder is placed default in the On-Axis position at factory.
5. Gently insert the lens in such a way that the lens connector matches the socket.
R5905963 PROMETHEUS SERIES 09/03/2015
73
