Barco Prometheus I Safety & Instruction Manual

6. Input & communication
6.3 Integrated Cinema Processor (ICP)
In case the pro jector is equipped with a Barco ICMP no ICP bo ard is inserted. All ICP functionality is integrated
in the Barco ICMP.
.

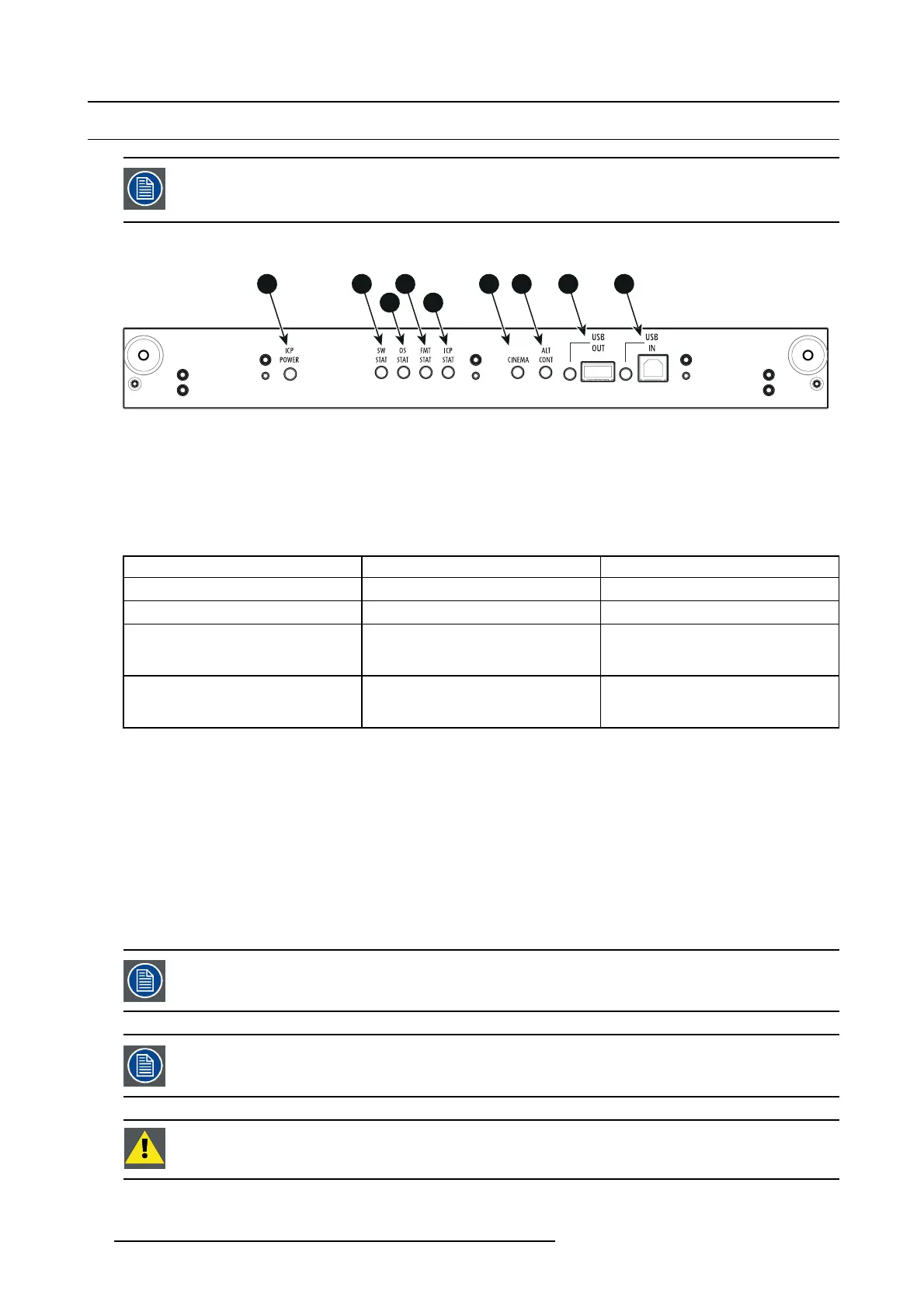

LEDs and ports on the Integrated Cinema Processor
USB
OUT
USB
IN
ICP
POWER
SW
STAT
OS
STAT
FMT
STAT
ICP
STAT CINEMA
ALT
CONT
1 2
3
4
5
6 7 8 9
Image 6-3
1 ICP is powered.
2 ICP software state, normal operation is green blinking.
3 ICP operating system state, normally fu ll gre en .
4ICPFMTconfiguration state, normally full green.
5ICPMAINconfiguration state, normally full green.
6 CINEMA port selected. When on, LE D 7 will be out.
7 ALTERNATIVE port selection. When on, LED 6 will be out. (note that this function is disabled. Led never lights up)
8 USB, for future use.
9 USB, for future use.
LED dia gnostic
State description
Normal operation Error state
Software state (LED reference 2) flashing green
red o r o ra nge
Operating System state (LED reference 3)
green
off, red or yellow
FM T FP GA state (LED reference 4)
green
red : unable to c onfigure the FPGA
yellow : FPG A is loaded with the Boot
application
ICP FPGA state (LED reference 5)
green
red : unable to c onfigure the FPGA
yellow : FPG A is loaded with the Boot
application
ICP functions:
• Stores all pr ojector files. W hen bo
ard is replaced; clone package must be reloaded.
• Stores and generates test patterns.
• Scaling to native resolution, re-sizing, masking, line-insertion de-interlacing, subtitle overlay, color space conversion,
de-gamma, color correction
• Source Selection betw een alternative content and cinema content.
• Store s a Certificate and Private Key neede d for Playback validation
• Contains a real time clock, which must be synchronized with the GMT/UTC time stored in the link decryptor module or Integrated
Media Block (see Com municator software)
• Handles unpacking of special video form ats
The ICP board spare part kit is not default programm ed for a Prometheus projector. When using this board in
a Prom etheus projector the so ft
ware must be re-installed after installation of the board.
When installing a new ICP board in a Prometheus projector the Spatial Color Calibration file mu st be reloaded
and activated. See chapter .
CAUTION: Make sure not to short circuit the battery on the board. That will destroy the board completely !
92 R5905963 PROMETHEUS SERIES 09/03/2015
