7. ICMP
7.3 ICMP communication ports

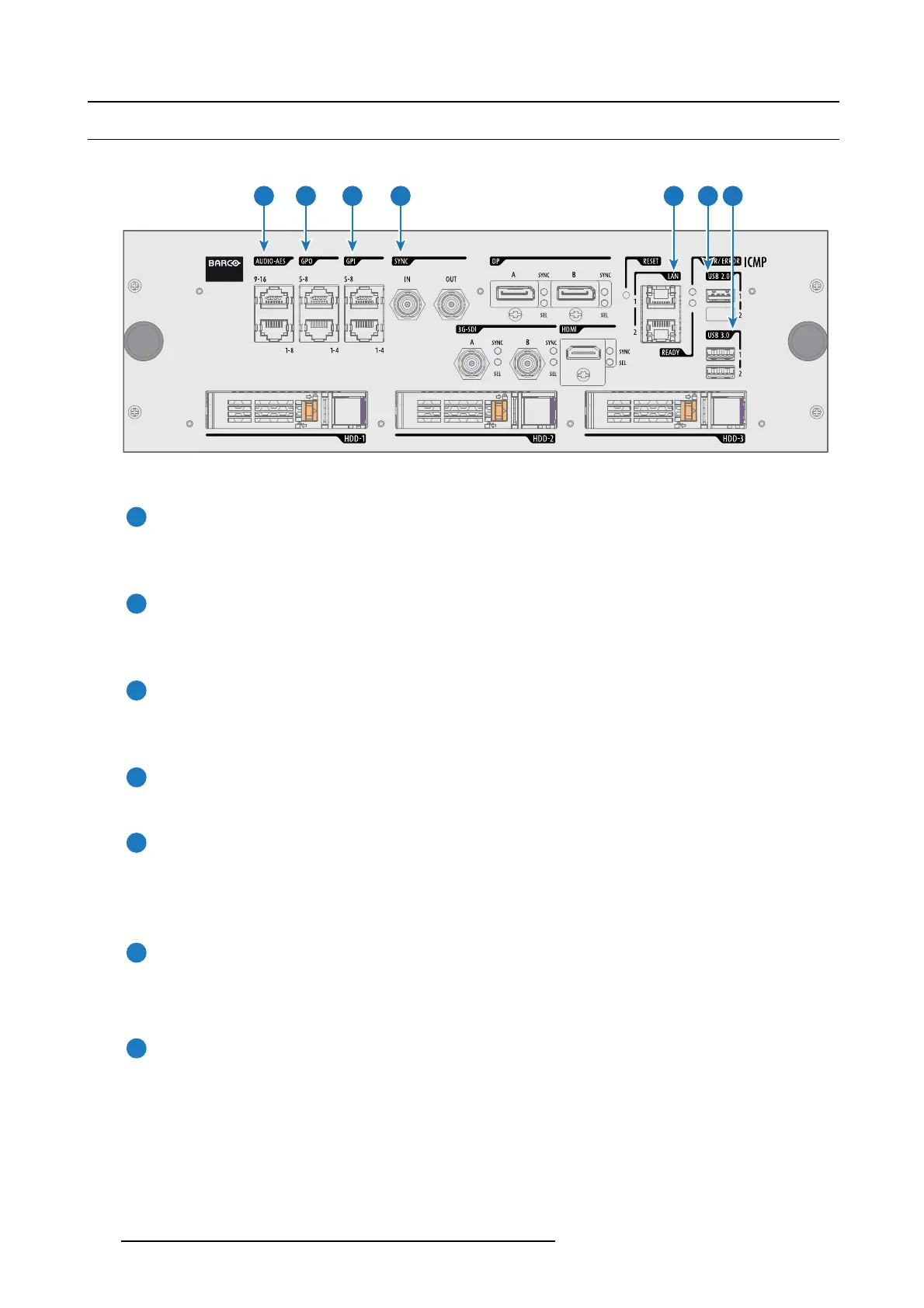

Location of the communication ports
1 2 3 4 5 6 7
Image 7-5
Functionality
1
AUDIO-AES 1-8 (9-16)
ICMP outputs sixteen audio signals e quitably distributed over these two RJ45 connectors, which can be configured
independently. The mapping of audio channels (content) on each audio output (AES outputs of the ICMP) is performed by
configuring the ICMP via the Communicator software. Plea
se refer t o the Com municator user guide for further information.
2
GPO 1-4 (5-8)
These RJ45 connectors can be used to send trigger signals to other devices. T he map ping of user Cues (output Cues) on
each Genera l P urpose Output (G PO) is configuredviatheComm
unicator software. Please refer to the Communic ator
user guide for further information.
3
GPI 1-4 (5-8)
These RJ45 connectors can be used to receive trigger signals
from other devices. The mapping of the G enera l Purpose
Input (GPI) on e ach input Cues is configur ed via the Communicator software. Please refer to the Com mun icator user
guide for further information.
4
SYNC IN / OUT
Synchronization signal IN and OUT: Reserved for m ultiple-projector projection.
5
LAN 1 (2)
The ICMP can be connected to a LAN (local area network) using one of the E thernet p orts. T hese LAN port are used
for ‘content’ transfer.
NOTE: These ports are optionally used to connect to external content storage sources. Control of the ICMP is done via the
same IP address as the projector.
6
USB 2.0
The ICMP can be c onnected to a USB 2.0 Media to load content. The US B port can be used to load content (DCP) or
keys (KDM).
NOTE: It is recomm ended to us e the US B 3.0 ports for faster ingest.
7
USB 3.0
The ICMP can be connected to a USB 3 .0 Media to load content. The USB p ort can be used to load content (DCP), o r
keys (KDM), or software update.
NOTE: These ports are recomm ended for fast ingest when connected to an appropriate USB 3.0 source.
