3. Physical installation
3.8 Connecting a UPS to the projector electron ics
WARNING: Only use UPS units which are suitable for the Prometheus. See chapter ”General”, “Installation
requirements” for more information about the requirements of the UPS.
How to connect the UPS
1. Install the UPS according to the instructions of the man ufacturer a nd the local regulations.
2. Connect the power output cord from the U PS unit to the UP S inlet socket of the projector (right socket).
Connect directly (A) or drag the c able behind the front cover s o that the front cover can be removed without
removin g the UPS
INLET cable (B).
1
2
A
B

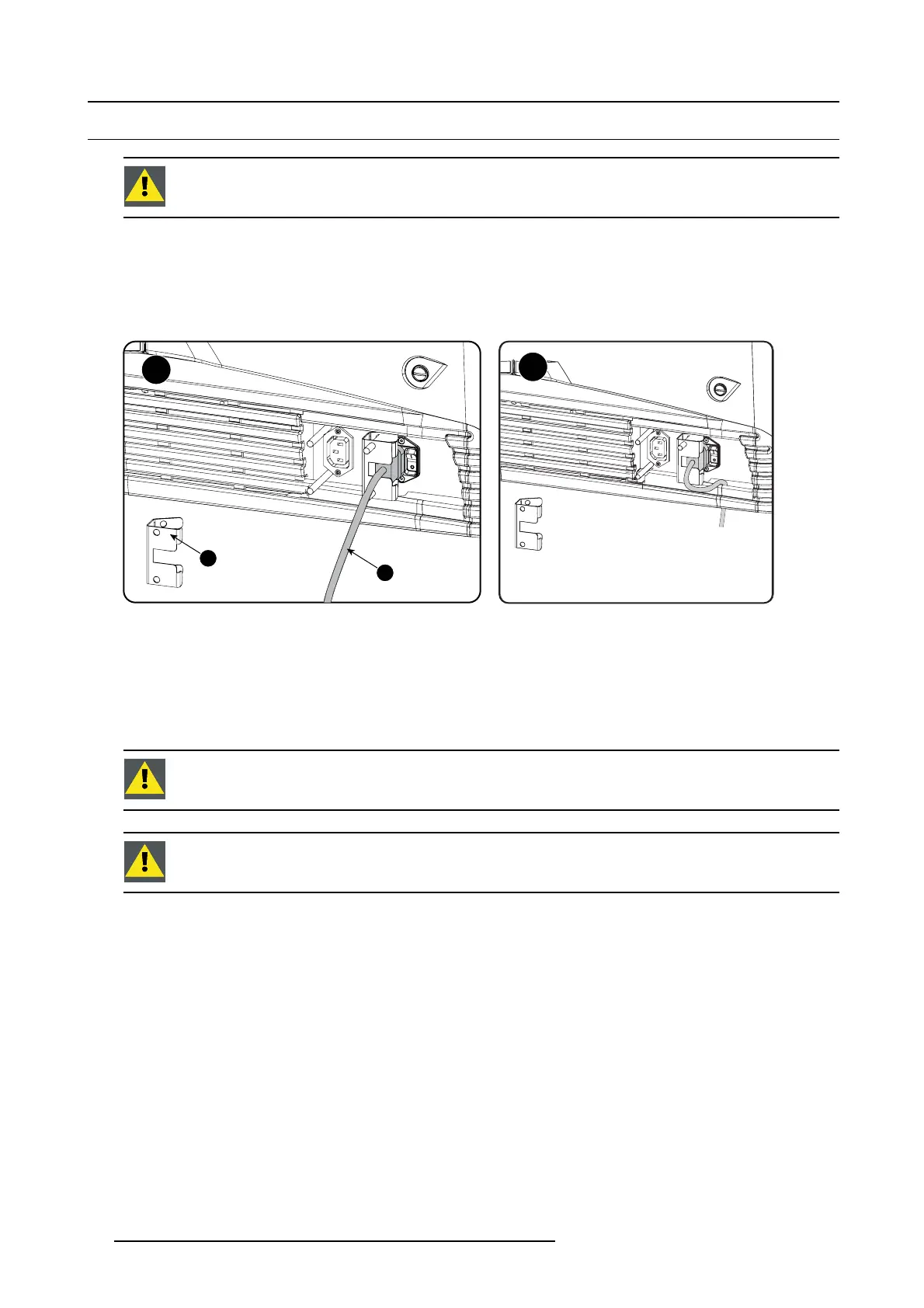

Image 3-17
UPS connection
3. Secure the UPS inlet socket with a fixation s pring. Handle as follow:
- Squeeze the fixation spring together.
-Slidethefixation spring on the fixation pins while squeezing t ogether and push it against the power plug.
- Release the fixation spring.
4. Install on the power outlet the second fixation spring to prevent losing it (2).
CAUTION: The electrical conn ection with the UPS INLET socket of the projector must be done with a certified
AC power supply cord (minimum 0,75 mm² or 18 AWG and minimum 300V )
CAUTION: Do not use the power OUTLET socket of the projector to provide power to other equipment!
36 R5905963 PROMETHEUS SERIES 09/03/2015
