4. Lamp & Lamp House
4.1 Introduction
Lamp and Lamp House
The Prometheus I projector is delivered with a manual or motorized S/M Lamp House witho ut lamp, the Prometheus II projector is
delivered with a manual or motorized XL Lamp House without lamp.
The xenon bulb lamp is delivered separately and has to be installed on site by a quali fied service technician.
The xenon bulb lamp is packed in a protective container or wrapped in a protective cloth. Never remove this protective container or
protective cloth without wearing adequate protective clothing (face shield, clean cotton gloves, weld
er’s jacket).

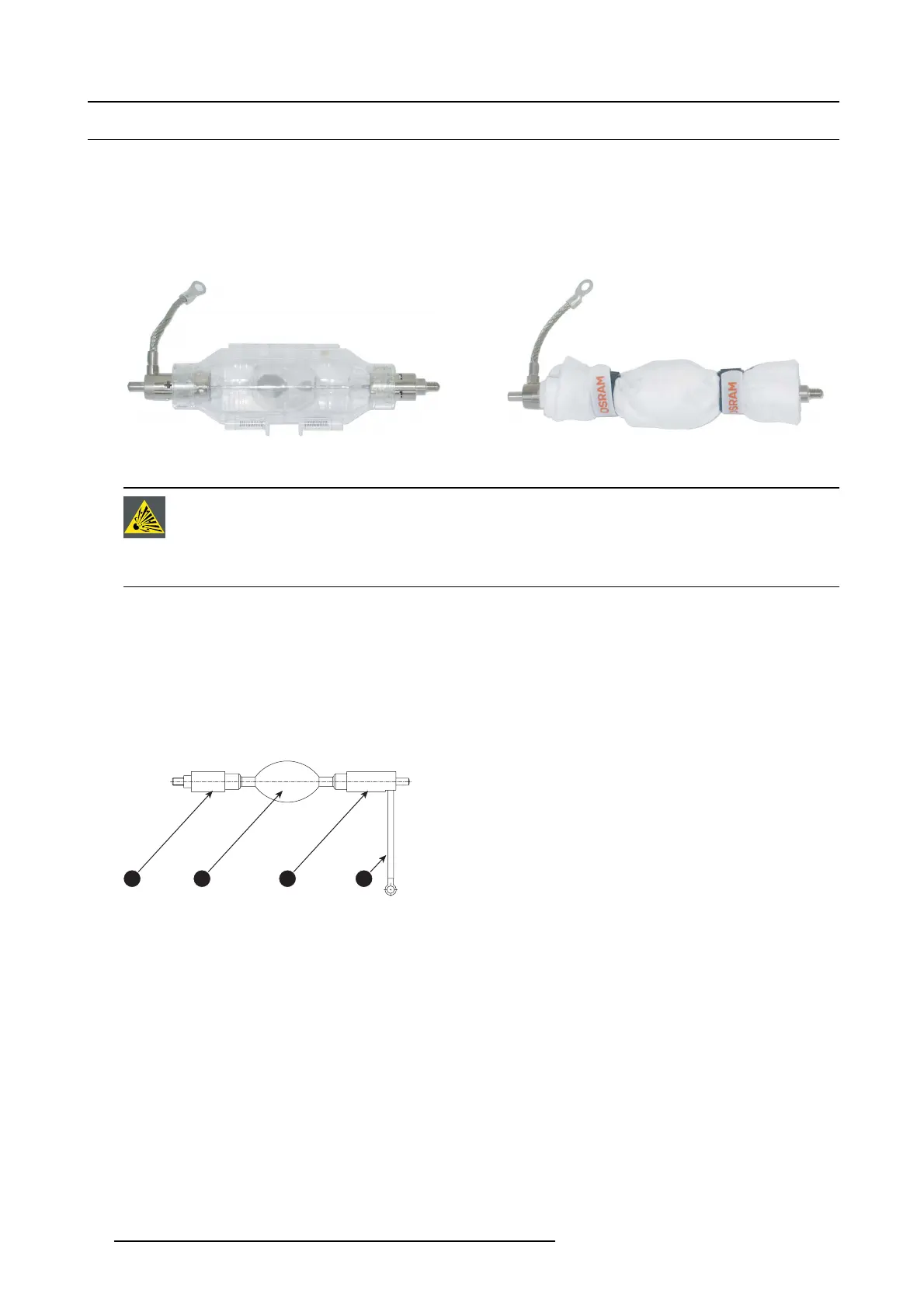

Image 4-1
Left: Xenon lamp in protective container. Right: Xenon lamp wrapped in protective cloth.
CAUTION: Xenon compact arc lamps are highly pressurized. When ignited, the normal operating temperature
of the bulb increases the pressure to a level at which the bulb may explode if not handled in strict accordan ce
to the m anufacturer ’s instructions. The bulb is stable at room te
mperature, but ma y s till explode if dropped o r
otherwise mishandled. Whenever the lamp house, containing a xenon lamp, has to be dism antled or when ever
the protective container or clo th has to be removed from the xenon lamp, authorized protective clothing MUST
be wor n!
Lamp strike policy and lamp warning/error policy versus the lamp runtime
• The projector issues a lamp r un time notifica tion message (end have blue status LEDs) approximately 30 hours before the
maximum lamp runtime o ccurs.
• The projector issues a lamp run time notification message (end have blue status LEDs) when the m aximum lamp runtime
occurs.
• The projec tor w ill alway s try to strike the lam p, independent of the lamp runtime.
Parts identification xenon lamp
1 2 3 4
Image 4-2
1 Cathode of the xenon lamp.
2 Envelope (bulb) of the xenon lamp.
3 Anode of the xenon lamp.
4 Anode wire of the xenon lamp.
38 R5905963 PROMETHEUS SERIES 09/03/2015
