Barco Prometheus I - Remove and Clean both Bottom Dust Filters

11. Maintenance
11.2 Remove and clean both bottom dust filt ers
How to remove
1. Remove the side cover.
2. Slide out the bottom front dust filter.

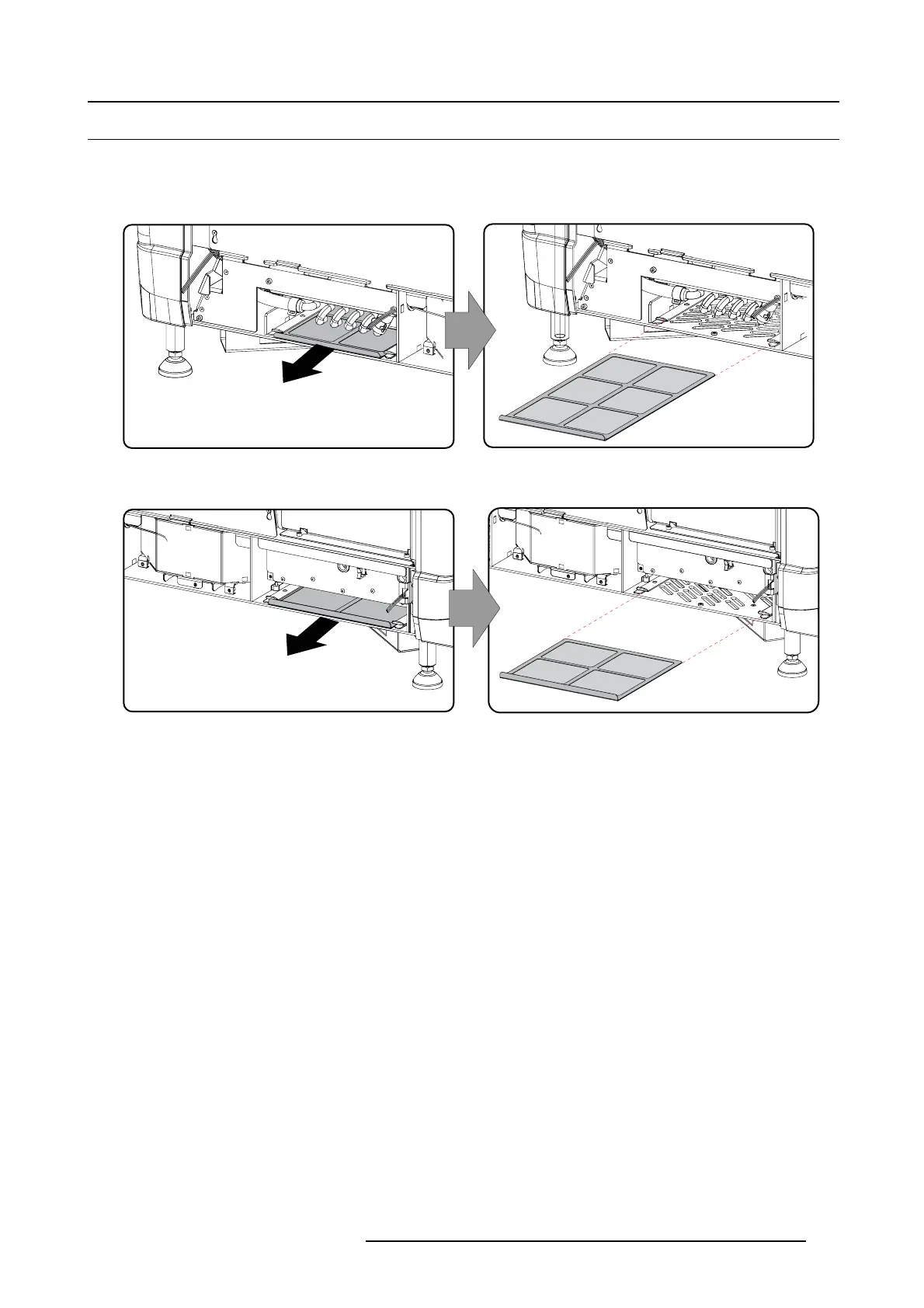

Image 11-3
Bottom front dust filter
3. Slide out the bottom back dust filter.
Image 11-4
Bottom back dust filter
Clean the dust filter
1. Remove most contamination with a vacuum cleaner in an other room or outside.
2. Blow remaining dust away with compressed air in an other room or outside.
Mount the dust fi lters
1. Insert the dust filter with the handle upw ards. Sm all filter at the back, big filter at the front.
2. Push the filters completely in until they click into position.
3. Reinstall the side cov er.
R5905963 PROMETHEUS SERIES 09/03/2015
151
