10. Removal and installation of the projector covers
10.4 Removal of the front cover
Necessary tools
Flat screwdriver
How to remove
1. Check if the lens is removed.
2. Remove the rubber dust ring from the lens holder.

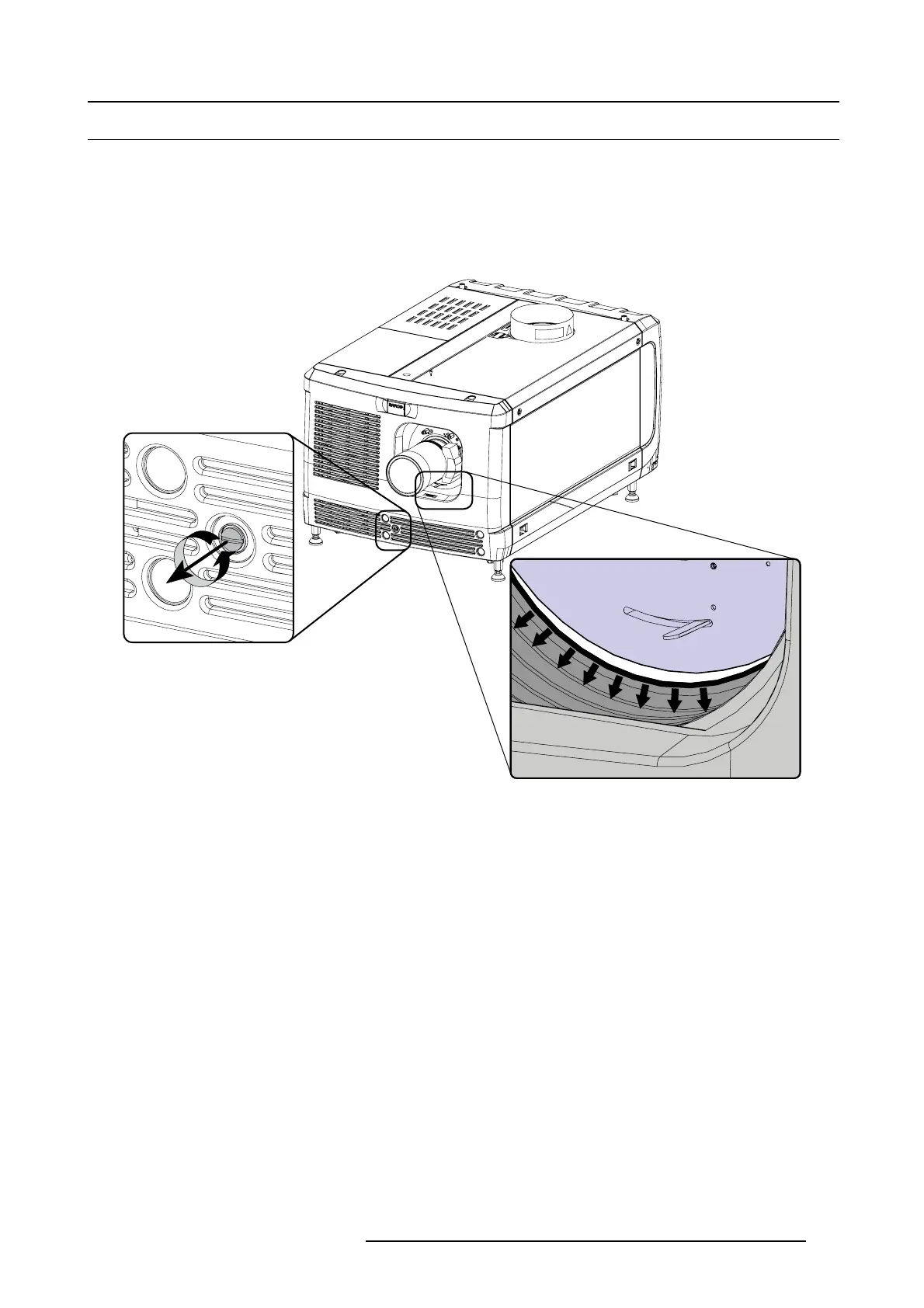

Image 10-8
Release cover removal
3. Release the captive screw at the middle bottom of the front cover.
4. Remove the front cover a s follow:
a) standing in front of the projector, pull the top side of the cover to you until it is unlocked.
b) slide the cover away from the projector.
R5905963 PROMETHEUS SERIES 09/03/2015
