7. ICMP
7.1 ICMP introdu ction
About ICMP
The ICMP is a rem ovable elec tronic assembly situated in the Card Cage of the projector. The ICMP stores, decrypts and decodes
DCI cinema content an d delivers it to the projector in a usable format, all integrated into a single assembly placed directly in the
projector. ICMP is a fully integrated assembly s o ex pected b y the operators to facilitate their daily business.
The standard Integrated Cinema P rocessor functionality from Texas Instruments® is fully integrated into the ICMP. So, the ICMP
replaces the ICP b oard as well.
321

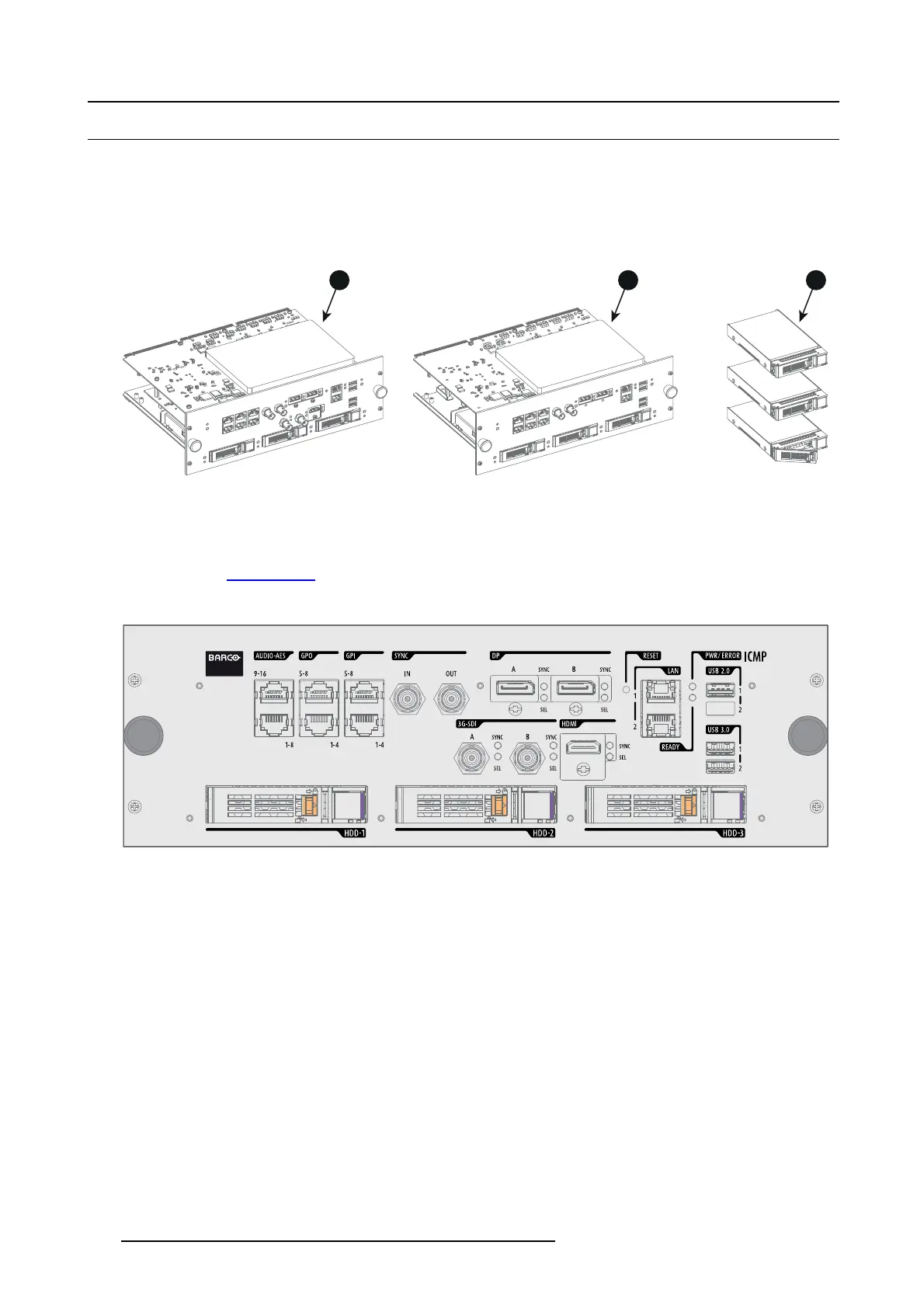

Image 7-2
1 ICMP with video mezzanine.
2 ICMP without video mezzanine.
3 HDDs for ICMP (included in upgrade kit, not included in service kit).
As an integrated component of the projector, installation and maintenance of the ICMP requires the same skills and the sam e pr e-
cautions as an intervention on the pro jector itself.
For order info see w
ww.barco.com.
Front face of the ICMP
Image 7-3
Front face ICMP with video mezzanine.
Card Cage slot location
The Card Cage can be different depending the projector type but it always consists of a bu tton m odule and several removable units.
The ICMP (reference 1) is inserted into the former ICP slot and IMB slot above the Barco Cinem a Controller ( reference 2).
