6. Input & communication
6.2 Local keypad of the Prometheus
Identification of the keys
1
2
3
4
5
6
2
1
3
4
5
6
7
8

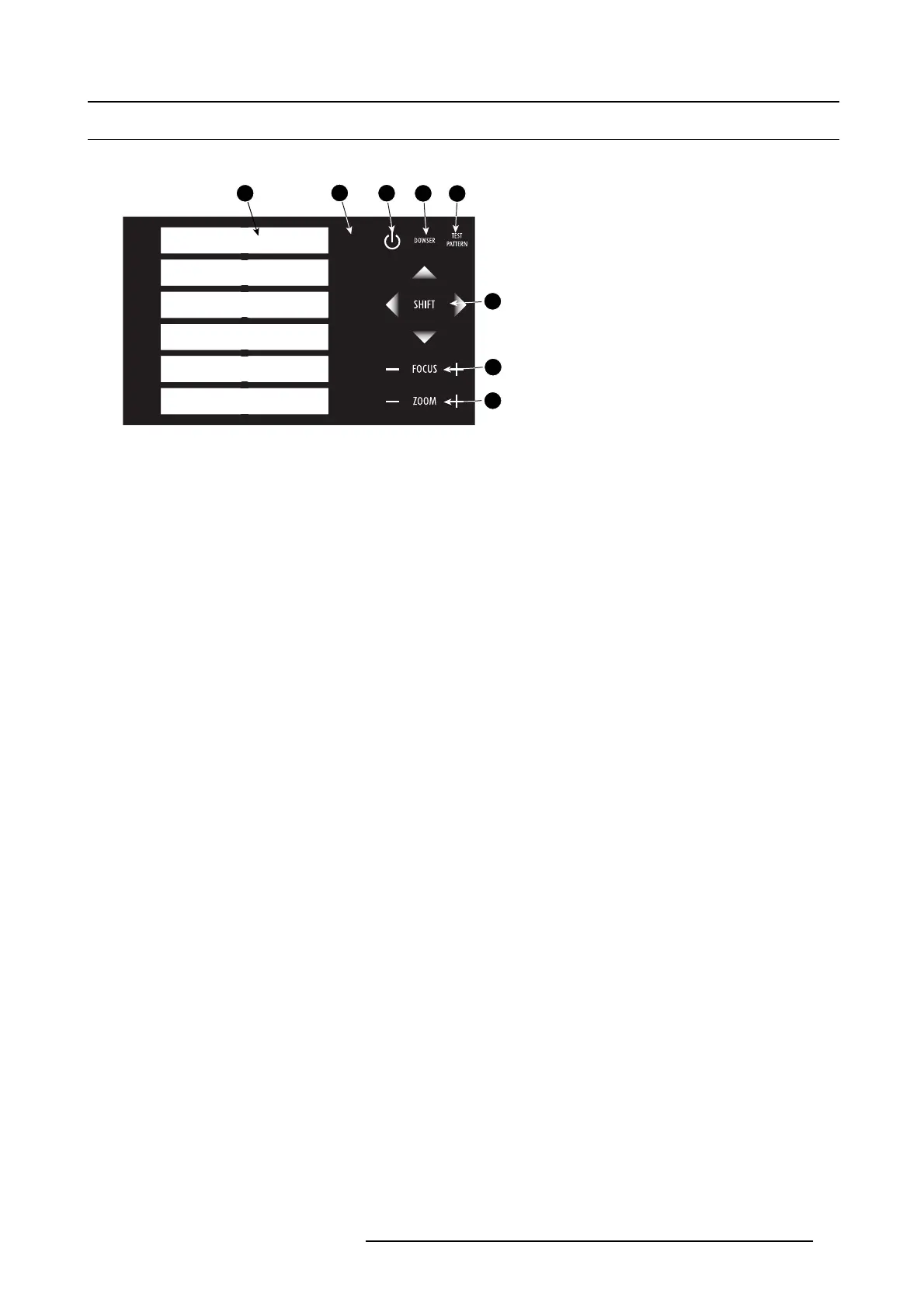

Image 6-2
Local keypad
1 Marker area for m acro na me
2 Numeric keyboard
3 Standby key
4 Dowser open/close switch
5
Test pattern toggle switch
6 Lens shift up/down, left/right
7
Lens focus
8 Lens zoom
Numeric keys
All the numeric keys (2) of the local keypad have a blue bac klight during normal operation. When the authorization process is
activated with the secu rity key, the back light co lor of the numeric k eys 1 to 6 changes to orange. Each key can be linked to a macro
which allows you t o setup the projector to your requirements with one push of a button. N ote that each numeric key has a marker
area (1) where you can wr ite down the name of the m acro.
Standby key
Standby key (3) switches ON or OFF the lamp and lamp electronics. The lamp cooling fans remain ac tive for about 5 m inute s. The
speed of the other fans is reduced. The backlight color of the standby key remains red in standby mode and changes to green in
operation mode.
Dowser key
The dowser key (4) opens or closes the dowser. The backlight color of the dowser key is green when the dowser is open and red
when the dows er is closed.
Test pattern k ey
The test pattern key (5) give s you direct access to the internal test patterns of the projector.
Shift keys
The s hift keys (6) allow you to shift the lens up/down or left/r ight.
Focus keys
The focus keys (7) allow you t
o focus the projected imag e on the sc reen.
Zoom keys
The zoom key s (8) allow you to zoom in or ou t the projected image on the screen.
R5905963 PROMETHEUS SERIES 09/03/2015
91
