Barco Prometheus I Safety & Instruction Manual

4. Lamp & Lamp House
Parts identification manual Lamp House
1
11
12
4 5 6
2
7
8
9
17
16
14
15
10
3
13

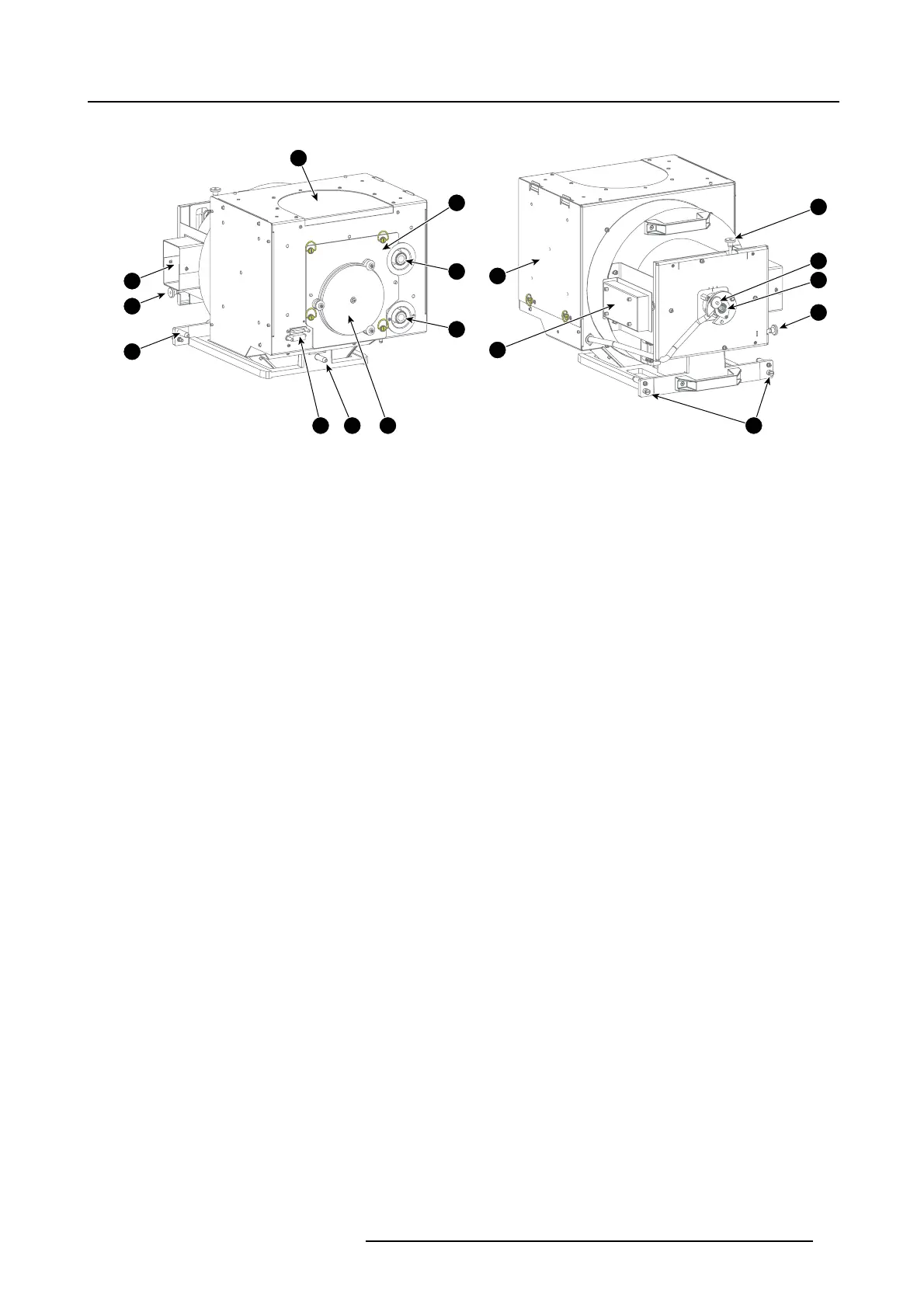

Image 4-3
1 Air inlet cathode cooling.
2 Adjustment screw horizontal lamp alignment.
3 Positioning pin.
4 Connection Lamp Info module.
5 Positioning pin.
6 UV blocker.
7 Cathode connection with SPG.
8 Anode connection with SPG.
9 Removable front cover.
10 Air out let.
11 Removablesidecover.
12 Lamp Info module.
13 Lamp House fixation screw.
14 Adjustment screw horizontal lamp alignment.
15 Lamp cathode fixation screw.
16 Adjustment screw for lamp Z-alignment.
17 Adjustment screw vertical lamp alignment.
R5905963 PROMETHEUS SERIES 09/03/2015 39
