8. Communicator Touch Panel
W
Image 8-6

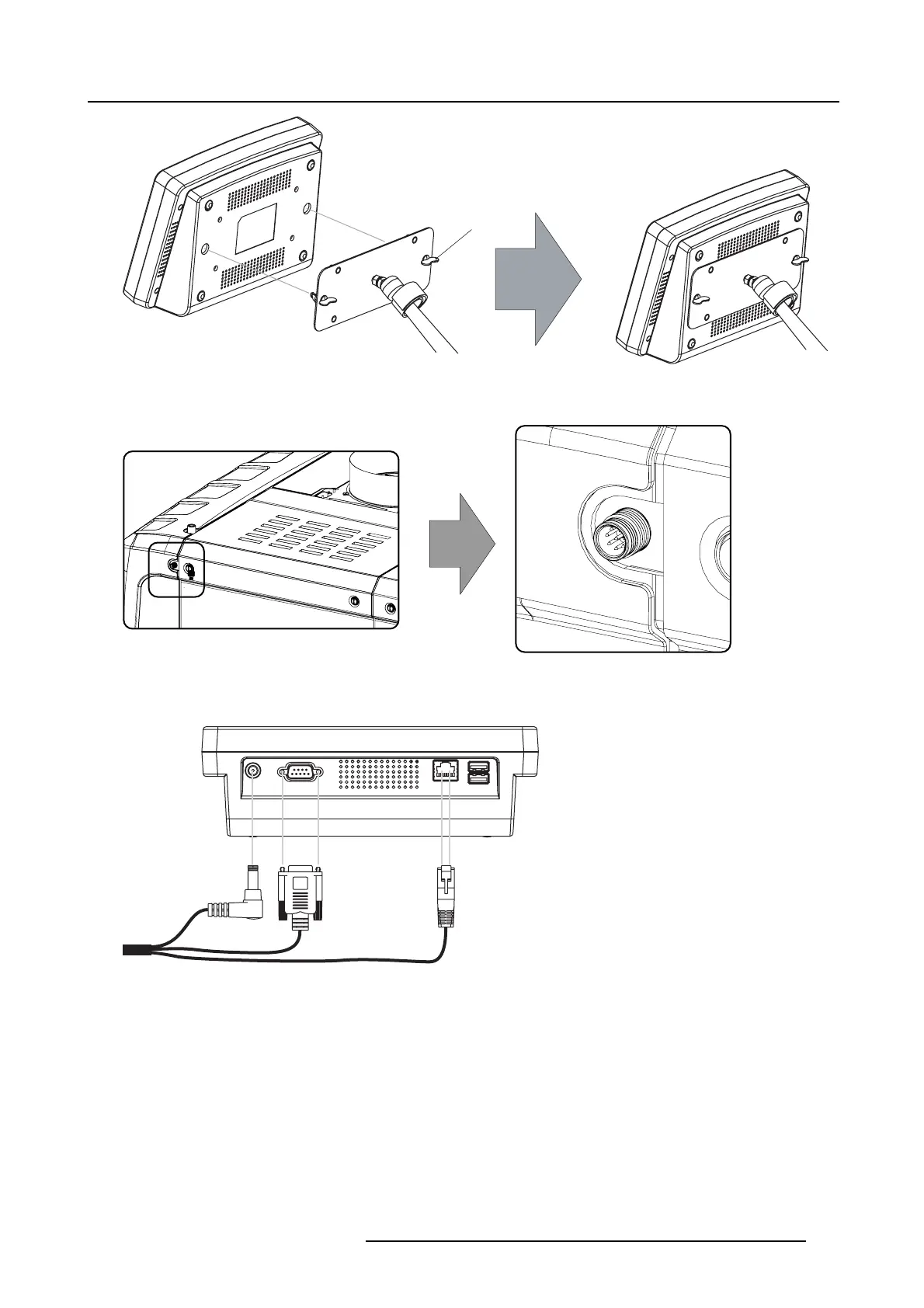

Mount touch panel
4. Connect the circular plug of the multi cable with the circular socket at the rear side of the Prometheus.
Image 8-7
5. Attach the multi cable to the swivel arm us ing the two Velcro strips.
6. Connect the DC plug, the RJ45 Ethernet plug and the D-SUB plug into their respective s ockets on the touch panel interface.
Image 8-8
Connections
R5905963 PROMETHEUS SERIES 09/03/2015 125
