12. Convergence
Image 12-6

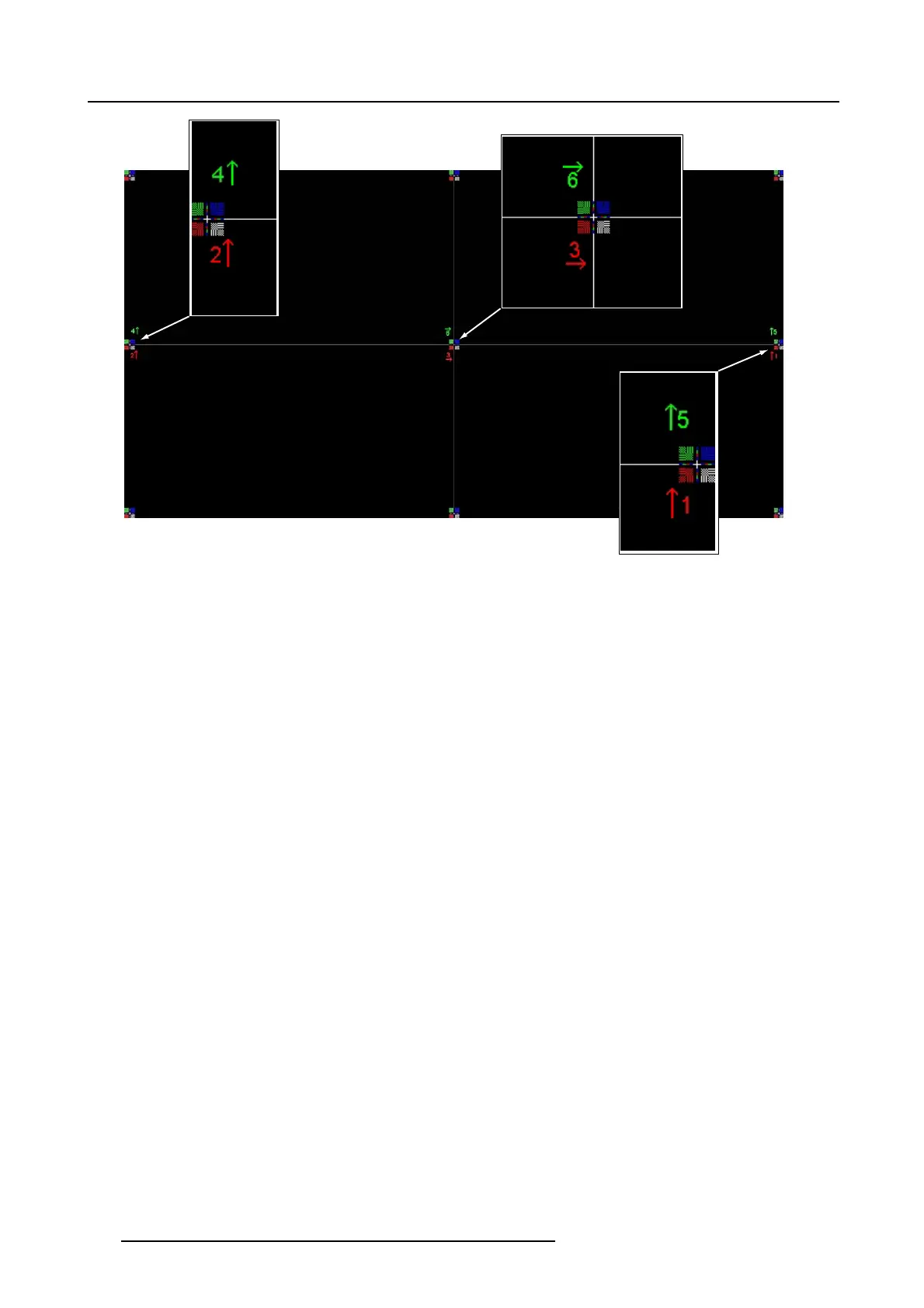

Convergence test pattern
Work Instructions:
• GREEN and RED DMD’s are to be adjusted with reference to the BLUE dmd.
• Each adjustment allows for approximately 10 pixels (fo
r 2K projectors) or 20 pixels (for 4K projectors) m axim um displacement
to either side of the nominal BLUE position
• Rotation is limited to approximately +/- 5pixels on the left screen flank and +/- 5 pixels on the right screen flank
• One turn of an adjustment screw relates to an approx. 5-pixel displacement on the screen.
• Let the projector warming up for 30 minutes, while projecting the conv ergence test pattern, before starting to adjust the conver-
gence.
Take Care:
• In rare cases it can happen that the nominal dmd position falls within a dead zone, wh ere the mechanism changes from a
pushing to a pulling function. This dead zone is due to inherent tolerances within the mec hanism . A pproxim ately 2 turns a re
required to get out of the dead zone. If it so happens that the nominal position of an adjustment falls within this dead zone,
it is preferable to c ontinue screwing through the dead zone for an other 2 turns. Then return to the required nominal position.
The dead zone should now be displaced away from the required end position. The DMD is now securely held in the nominal
position.
• Each adjustm ent is limited to approxim ately 1 0 pixels (for 2K projectors) or 20 pixels (for 4K projectors) displacement. DO NO T
try to force the adjustment beyond this point. The system has an end of travel in both directions, but with excessive force one
could cause damage.
162
