General
MC5-IS Hardware
General features:
• IP65 water/dust proof case (EN60529)
Battery pack IP30.
• Integrated impact protectors
• Both a wrist strap and a neck support strap
• A support for using the calibrator on the table
• Operating temperature: -10 … +50 °C (14 … 122 °F).
+10 … +35 °C (50 … 95 °F) when charging the batteries.
• Storage temperature: -20 … +60 °C (-4 … 140 °F).
Note: The stickers and the batteries may be affected when
storing longer periods in extreme conditions.
• Humidity: 0 … 80 %RH
More comprehensive specifications are available in Appendix 2.
Operational Sections and Connections
All sections and connections are presented in detail on the next
pages.
Note.
Keep in mind that the previous picture (as well as all pictures of
MC5-IS in this manual) has an example configuration of modules.
The configuration of your MC5-IS may vary significantly from the
one in the picture.

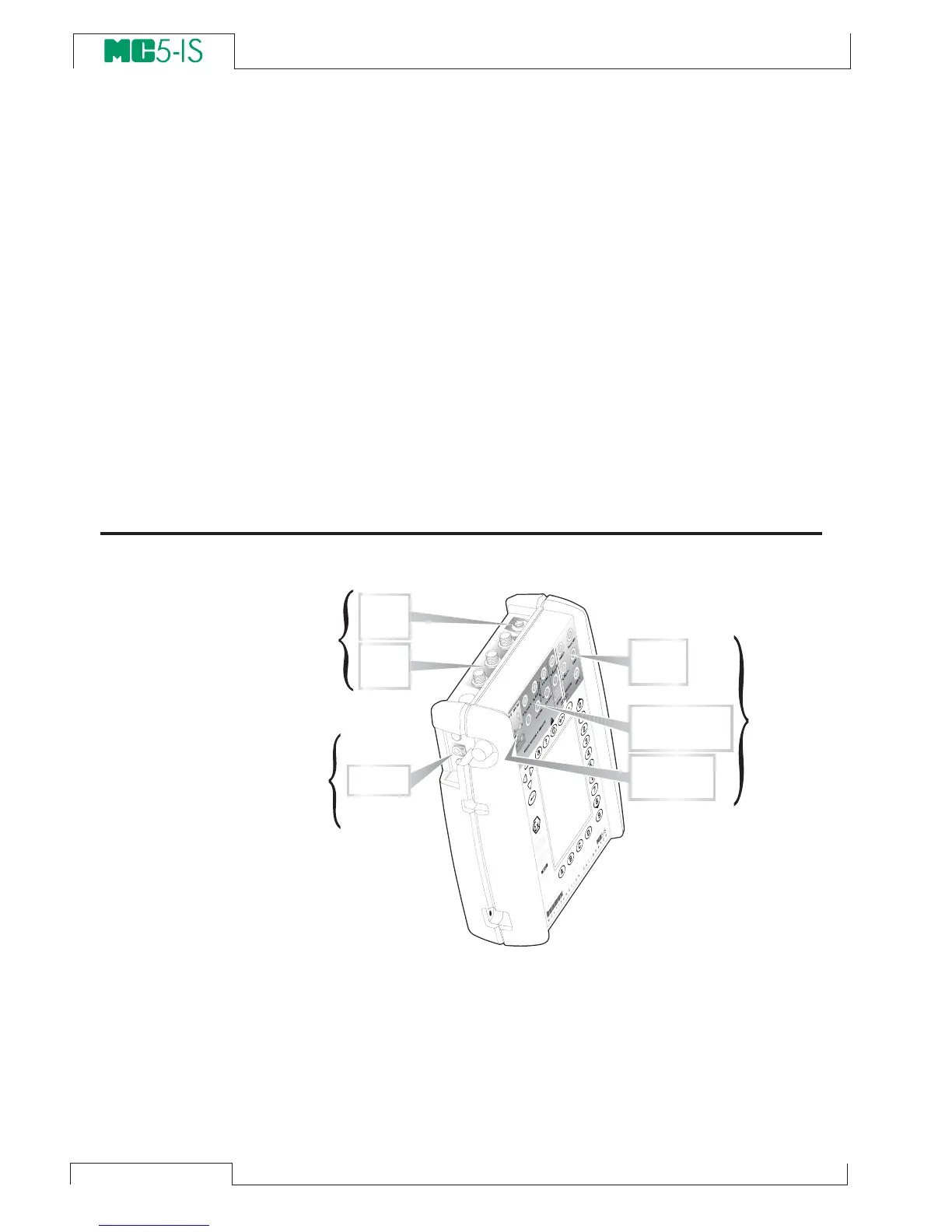

I n t e r n a l
P r e s s u r e
M o d u l e s
E x t e r n a l
P r e s s u r e
M o d u l e s
R S 2 3 2
C o n n e c t o r
E l e c t r i c a l a n d
T e m p e r a t u r e M o d u l e
( E T M o
d u l e )
R e f e r e n c e
J u n c t i o n M o d u l e
( R J M o d u l e )
E l e c t r i c a l
M o d u l e
( E M o d u l e )
T h e
U p p e r
P a n e l
T h e
L e f t
S i d e
T h e
F r o n t
P a n e l
