BEAMEX MC5-IS - Pressure Measurement; Using Internal Modules; Using External Modules

37
Pressure Measurement
See chapter Things to Consider when Measuring Pressure on page 89 for more infor-
mation on pressure measurement and internal/external pressure modules.
Required settings Options/description
Quantity Pressure
Pressure Type g gauge pressure or
abs absolute pressure.
The available pressure types may be restricted because of the selected pressure port /
pressure module. For more information concerning pressure types, see chapter Pres-
sure Type on page 89 .

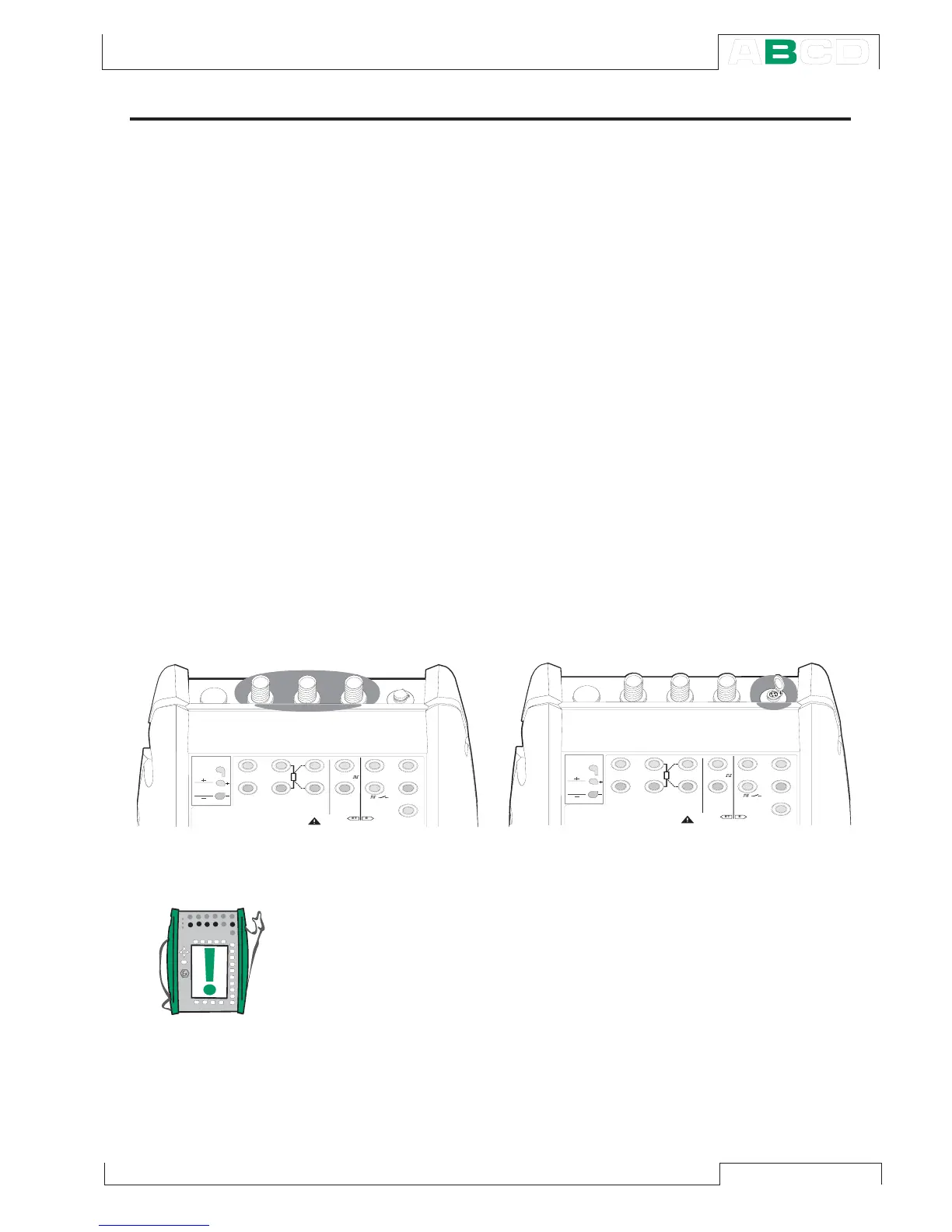

Using Internal Modules
Select an internal pressure module port
with a suitable measuring range and with
an ability to measure the required pressure
type:
Port P1: INTxxxx
P2: INTyyyy or
P3: INTzzzz.
Using External Modules
Select an external pressure module port
with a connected pressure module and a
suitable measuring range and with an abil-
ity to measure the required pressure type,
e.g.
Port PX1: EXTxxxx
T / C , L o w V
H A R T
®
1
m e a s / s i n k
V , ,
V , 1
 

 
 ,
s i n k
C o m
R , R T D
L o w V
M E A S U R EO U T P U T
E T E
T / C I N T . R J
S E N S O R M E A S U R E & S I M U L A T E
U o : 1 6 V
I o : 2 4 m A
P o : 1 4 5 m W
T / C
W I R E S
O N L Y
R , R T D
4 w m e a s
3 w m e a s
m e a s / s i m
T / C , L o w V
H A R T
®
1
m e a s / s i n k
V , ,
V ,
1
 

 

,
s i n k
C o m
R , R T D
L o w V
M E A S U R EO U T P U T
E T E
T / C I N T . R J
S E N S O R M E A S U R E & S I M U L A T E
U o : 1 6 V
I o : 2 4 m A
P o : 1 4 5 m W
T / C
W I R E S
O N L Y
R , R T D
4 w m e a s
3 w m e a sm e a s / s i m
Note.
The external pressure modules of MC5 (a non-IS model of MC5-IS)
may be connected to MC5-IS in safe area only.
Measuring
