3.7.4 - End of line
The menu End of Line is dedicated to the following operations:
- reset TPS
- setting of idle CO value of vertical and horizontal cylinder
- offset the injection quoted plans.
This operation must be carried out with key ON and diagnosis cable connected to PC.
1. To reset the TPS you have to read the values in the field “TPS value” positioning the throttle to
its minimum and maximum opening then writing the read values respectively in the fields
“TPS_MIN” and “TPS _MAX”.
2. For the idle CO modification it is sufficient to insert the desired multiplicative value in the field
CO_MIN_1 (horizontal cylinder) CO_MIN_2 (vertical cylinder).

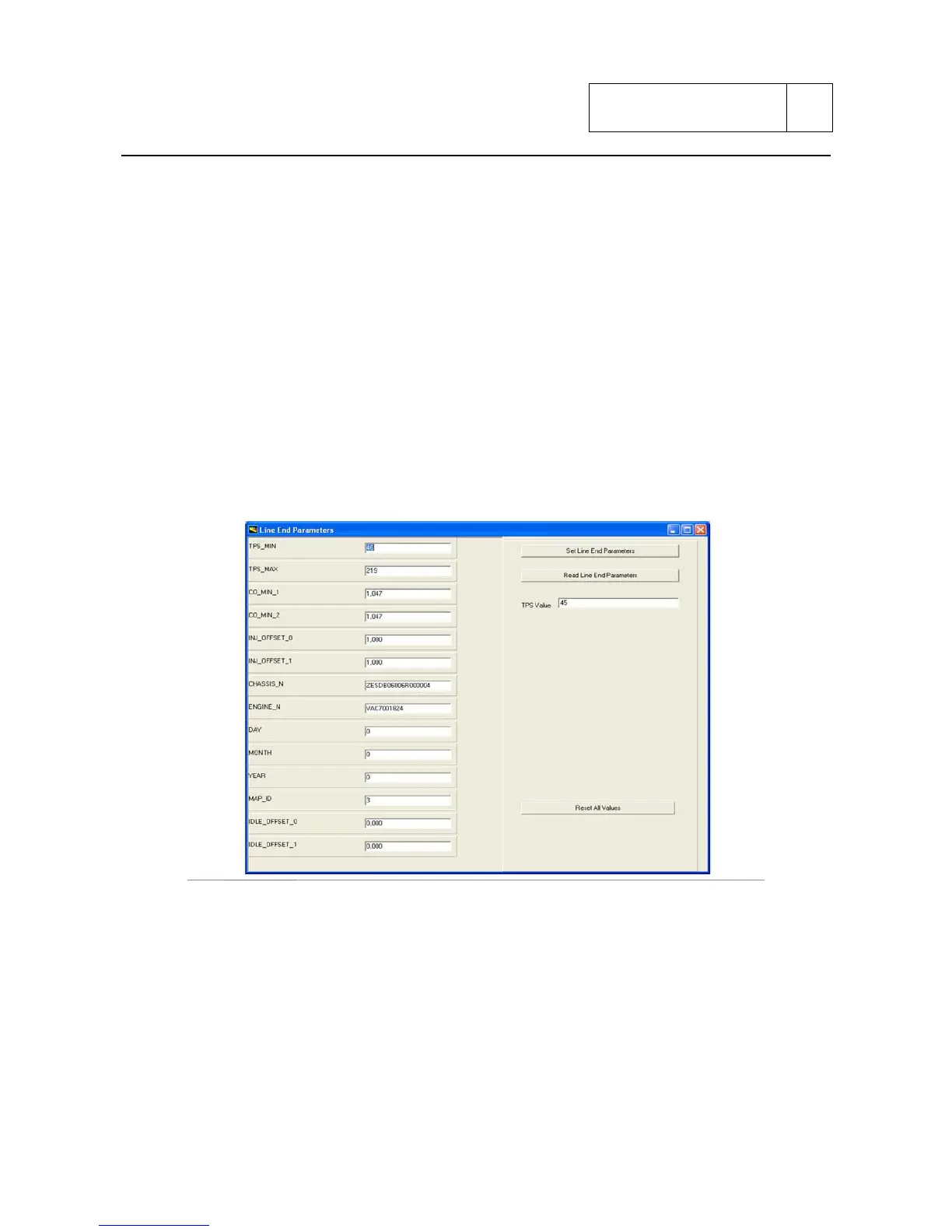

In the example below 1,047 means to increase of about 5% the idle injection time.
3. To offset the injection quoted plans of both cylinders use the same procedure for idle CO, writing
the desired value in the field INJ_OFFSET_0. The field INJ_OFFSET_1 is not active.
The field MAP_ID displays the identifying number of calibration.
To upload the setting on the control unit is necessary to click on button “set line end parameters”.
Sub 3-57
