ELECTRICAL SYSTEM
10
Headlight beam adjustment
The motorcycle must be perfectly upright with the tires inflated to the correct pressure and with a
rider seated, perfectly perpendicular to the longitudinal axis.
Position the motorcycle 10 metres from a wall or a screen.
On the wall or surface, draw a horizontal line at the same height from the ground as the centre of
the headlight and a vertical line aligned with the longitudinal axis of the motorcycle.
If possible, perform this check in conditions of low ambient light.
Switch on the low beam. The height of the upper limit between the dark area and the lit area must
not be more than nine tenths of the height of the centre of the headlight from the ground.
NOTES
This is the procedure specified by Italian regulations for checking the maximum height of the light
beam. Owners in other countries should adapt this procedure to the regulations in force in the
country where the motorcycle is used.

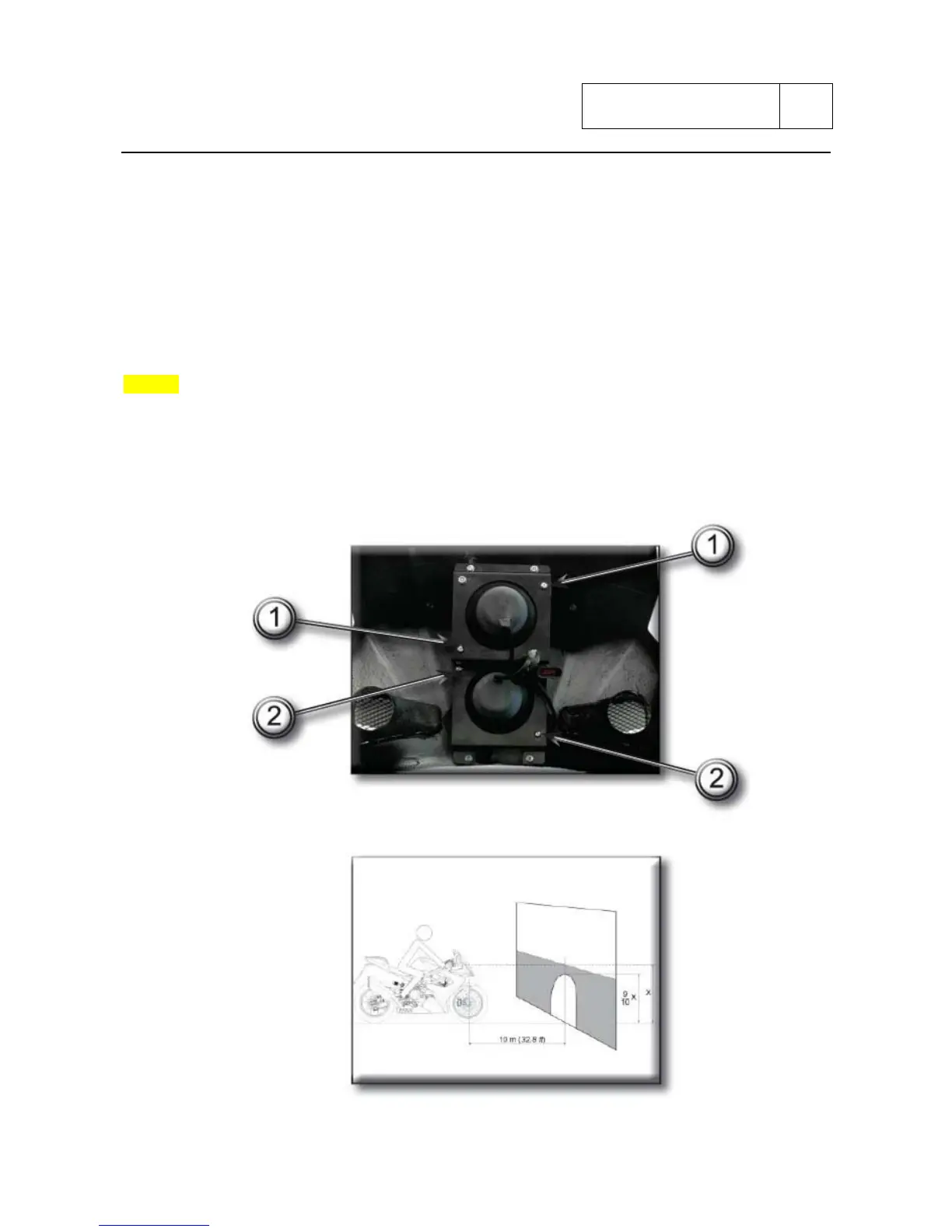

The headlight beam adjustment can be done by screwing/unscrewing the screws (1) and (2) as
needed.
Sub 10-24
