ELECTRICAL SYSTEM
10

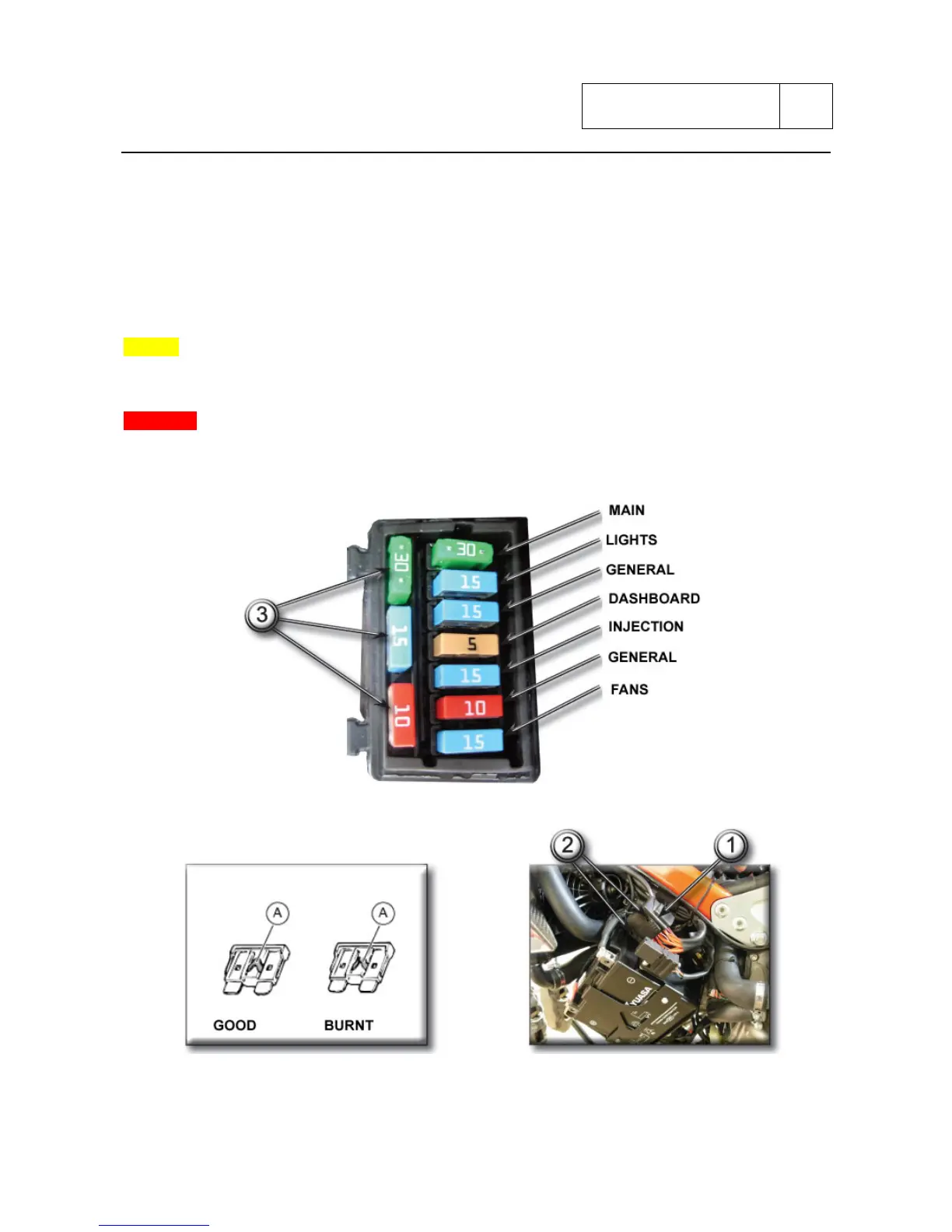

10.2 - FUSE BOX
The fuse box (1) is placed on the left side of the motorcycle, under the side fairing.
To replace the fuses:
Unhook the rubber fasteners (2) and open the fuse box cover (1).
Replace the damaged fuse with a new one.
The spare fuses (3) are placed in the fuse box.
The fuses specified are: 5A,10A,15A,30A.
NOTES
If the fuses burn frequently it means that there is a short-circuit or an overload of the electrical
system.
CAUTION
Never use a fuse with a rating other than the specified value. Failure to observe this rule may
damage the electric system or even cause fire.
Sub 10-4
