USE
MAINTENANCE
3

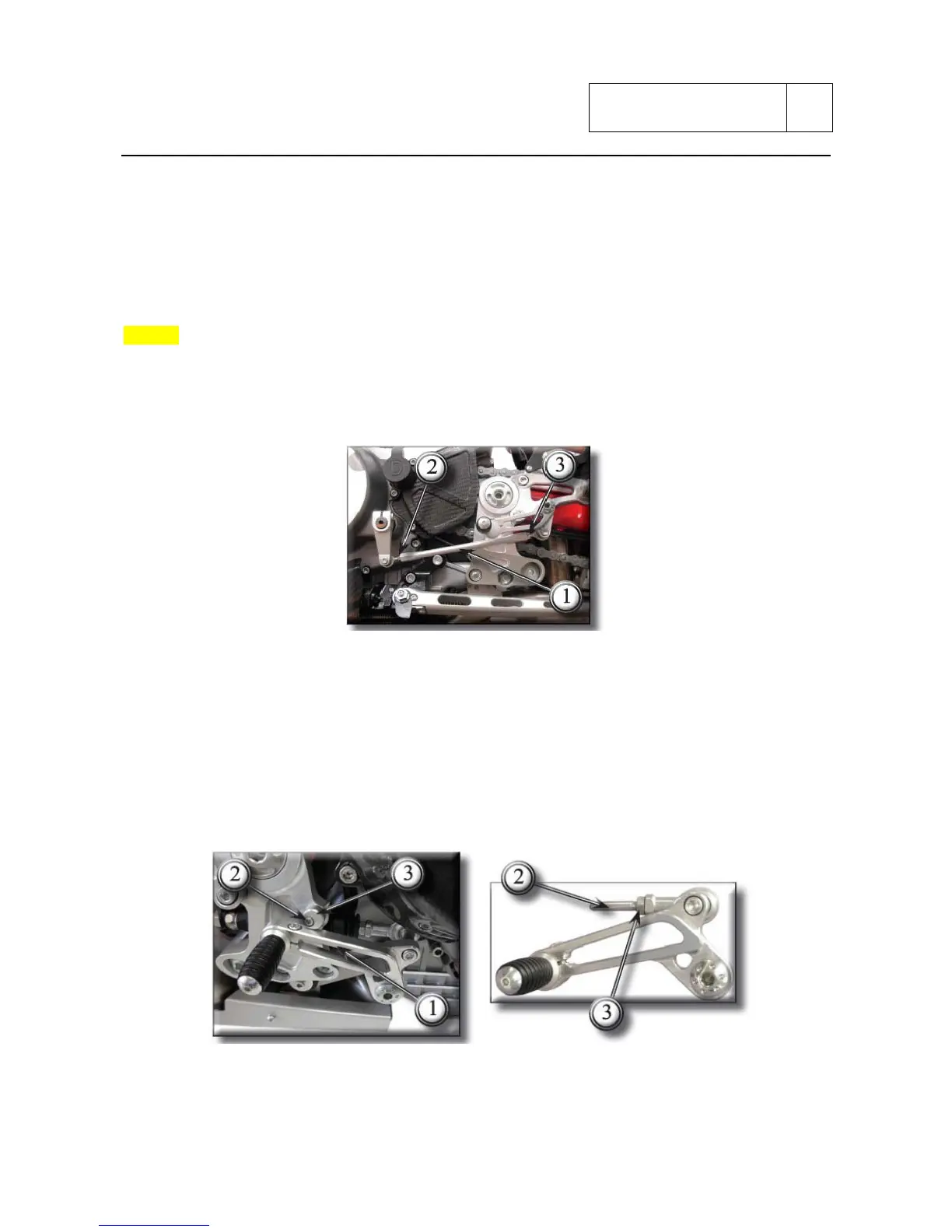

Rear brake pedal and shift lever position adjustment
In accordance to any pilot drive requirement it is possible to adjust the position of the shift pedal
and rear brake pedal respect to the footpegs.
To modify the position of the shift control pedal proceed as follows:
Lock the shaft (1) and loosen the lock nuts (2) and (3).
NOTES
The nut (2) has a left hand thread.
Rotate the rod (1), operating with a spanner on the hexagonal part, till the shift lever pedal has
reached the required position.
Tighten both the lock nuts (2) and (3).
To modify the position of the rear brake pedal proceed as follows:
Loosen the screw (2) that blocks the eccentric cam (3), therefore loosen the lock nut (4) of the
regulator rod (5).
Rotate the adjuster rod (5) clockwise to lower the brake lever (1), and counter clockwise to raise it.
Once the correct position is found tighten the lock nut (4) and check, moving manually on the
pedal, that there is play before starting the braking action.
Rotate the cam (3) until it touch the pedal and, keeping it in this position, tighten the screw (2).
Make sure the rear wheel turns freely with the brake pedal released.
Sub 3-41
