ELECTRICAL SYSTEM
10
10.4 - LIGHTING DEVICES
NOTES
The halogen light bulbs in the headlight become hot when switched on and remain hot for some
time after they are switched off. Allow bulbs to cool before replacing them.
If possible replace the light bulbs wearing clean gloves. If you touch the light bulb with naked
hands clean the bulb with alcohol to prevent overheating and breakage of the light bulb in a short
time.
To substitute the light bulb, turn the power switch to OFF position.
Before proceeding to replace a burned light bulb it is necessary to be sure that the new bulb has
the voltage and the power values equal to those specified for that device.

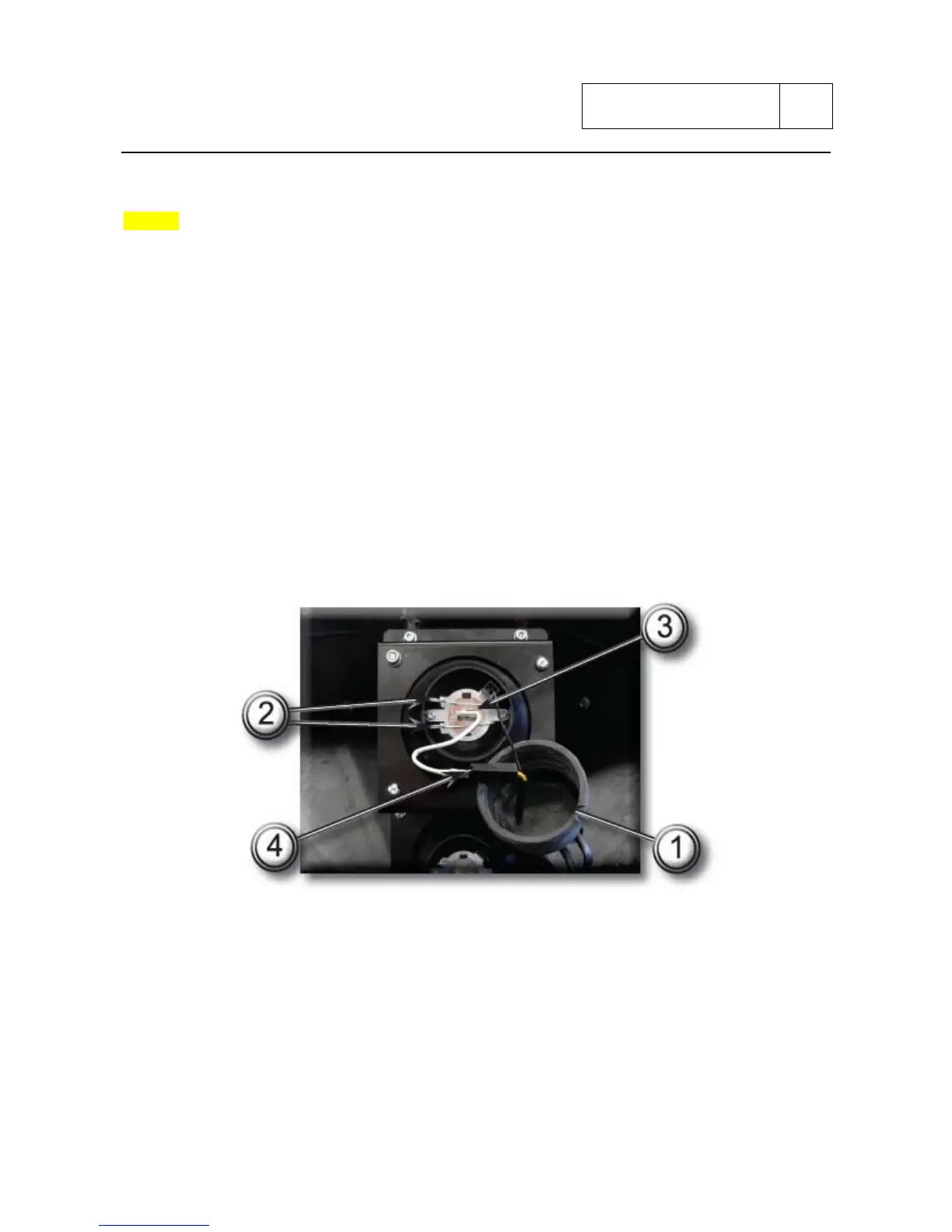

Low-beam bulb replacement
Remove the front fairing covers.
Remove the rubber cover (1).
Push the two fixing springs (2) out.
Remove the burnt light bulb (3) disconnecting the connector (4) and replace it with a new one
reversing the order of removal.
Reassemble the rubber cover.
Reassemble the front fairing cover.
Sub 10-21
