USE
MAINTENANCE
3
Valves clearance check-up
Operate as described under "valves clearance check-up and adjustment" subchapter.

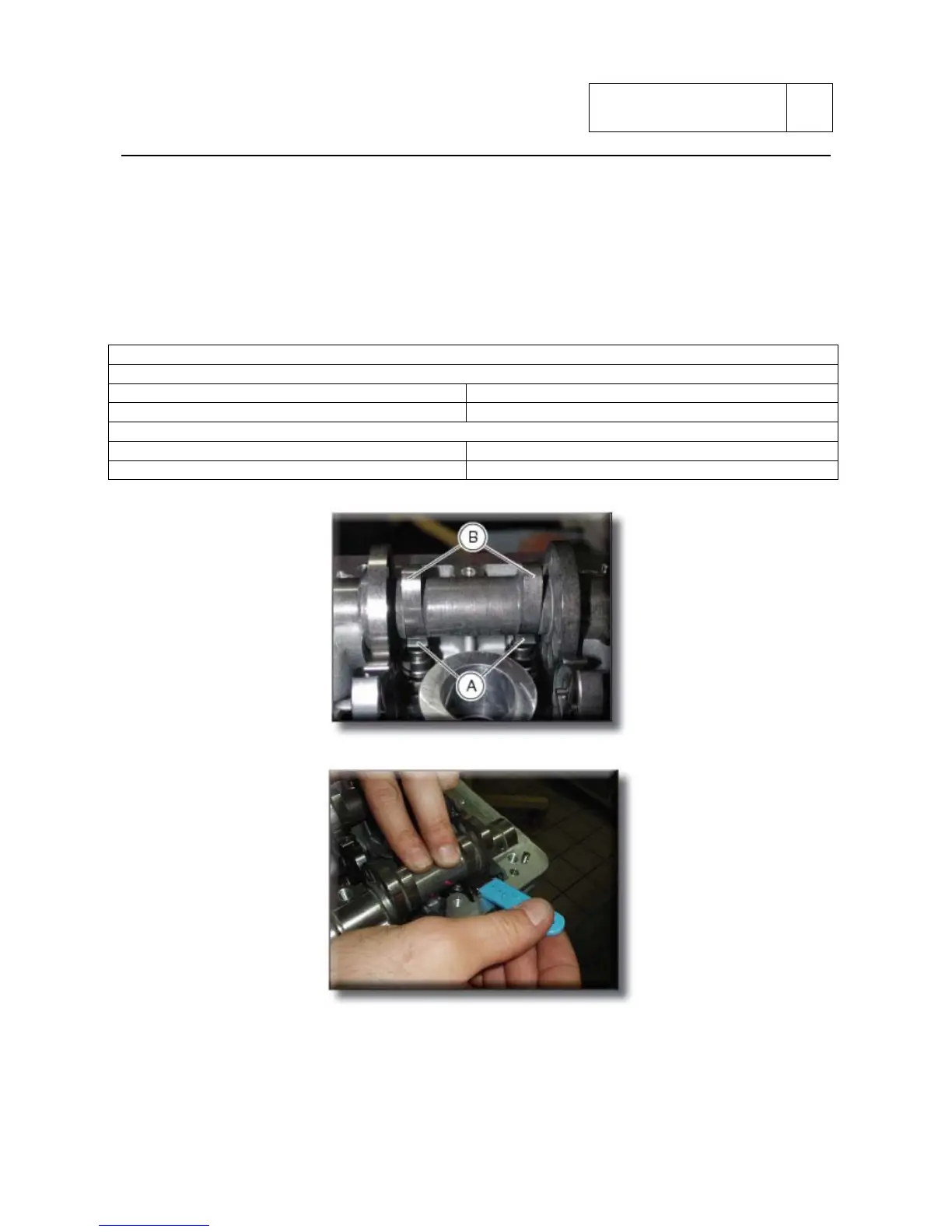

With the valve in the resting position and using a thickness gauge inserted between the skid of the
rocker arm (A) and the lower side of the cam (B), verify that the clearance is like the one
prescribed.
The clearance must be within the values prescribed:
Opening rocker arm
Intake
working 0,13 ÷ 0,18 mm
check 0,10 ÷ 0,25 mm
Exhaust
working 0,13 ÷ 0,18 mm
check 0,10 ÷ 0,25 mm
Sub 3-12
