bimota DB7 - Throttle Body and Injectors

EXHAUST - INTAKE
8

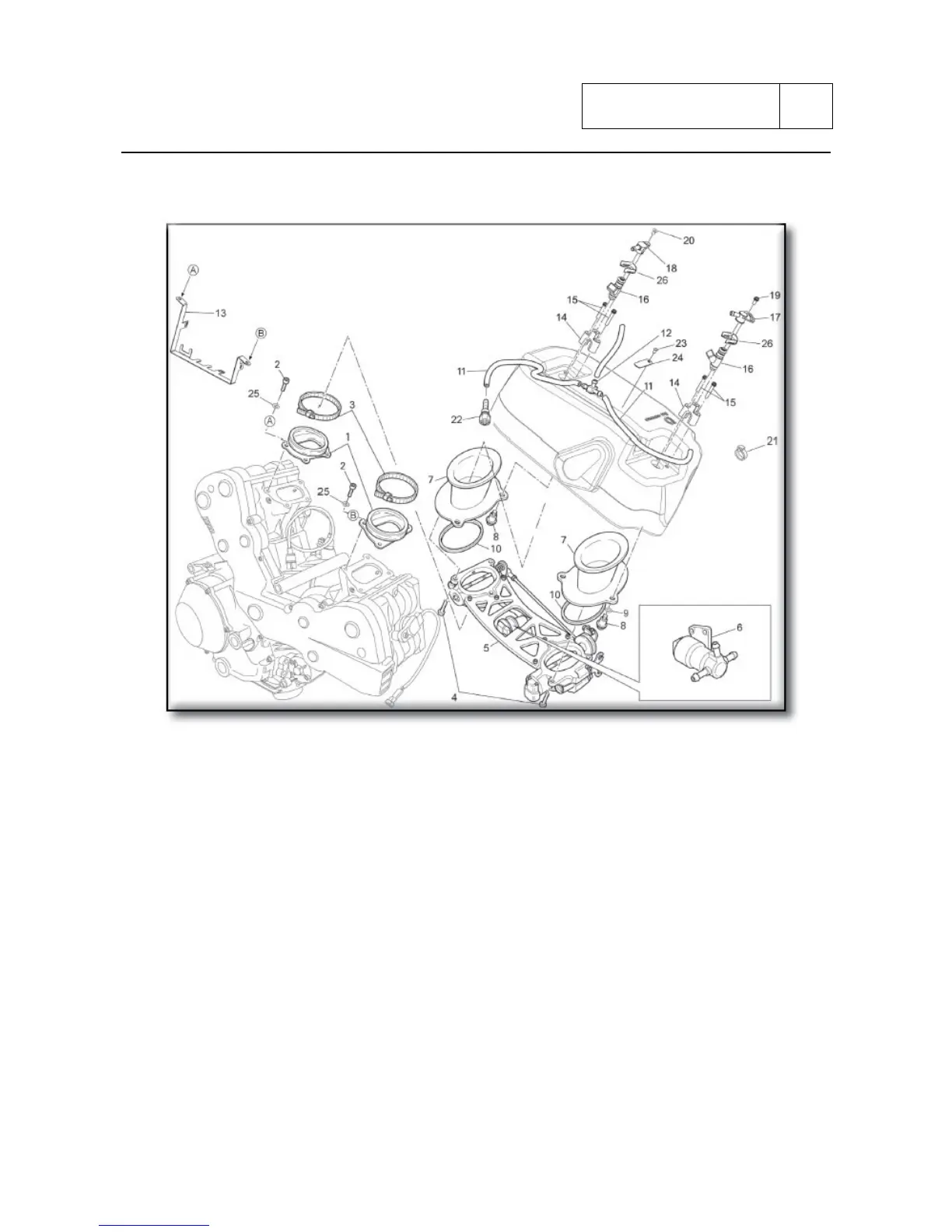

8.3 - THROTTLE BODY
1) intake manifold 14) injector mounting support
2) screw 15) screw M5x30 TCEI CZ
3) clamp 16) injector
4) screw M5x16 TCEI CZ 17) horizontal injector joint
5) throttle body 18) vertical injector joint
6) stepper motor 19) screw M5x14 TCEI CZ
7) intake duct 20) screw M5x10 TSPEI
8) screw M6x12 TCEI CZ 21) clamp
9) washer 22) quick coupling union
10) gasket 23) screw M4x8 TBEI
11) rubber hose 24) hose fixing plate
12) T union 25) washer 6x10x1.5
13) plugs holder 26) injector spring
Sub 8-10
