USE
MAINTENANCE
3

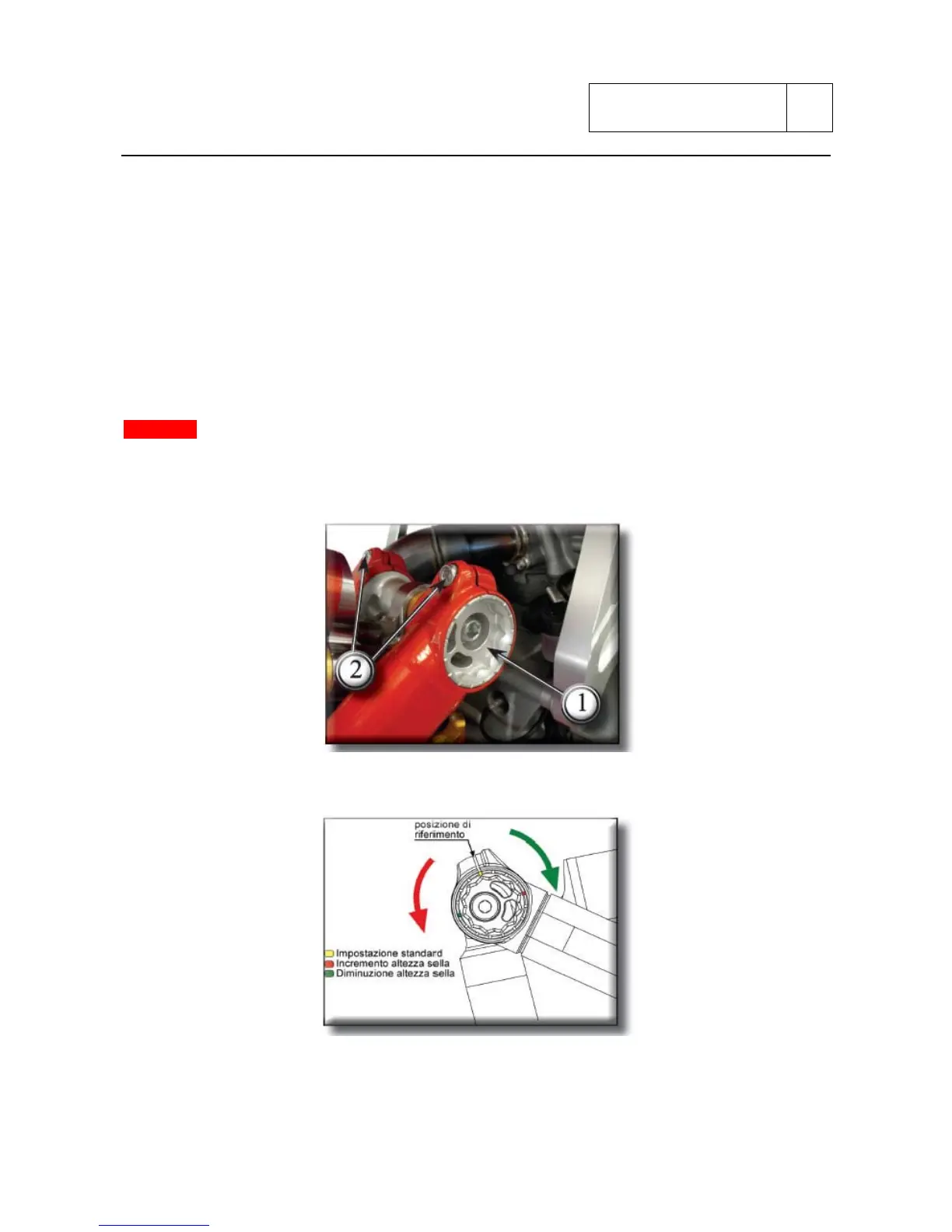

Rear height regulation / bike trim
The bike trim can be modified in accordance to the rider requirements by rotating the eccentric
cams (1) that fixes the suspension upper part.
Before modifying the standard setting, take note of the reference position to restore the original
setting.
To determinate the setting acts as follow:
Place motorcycle upright on a plain surface.
Loosen the screws (2) that tighten the clamps on cams.
Rotate the cams (1) using the Bimota special tool cod. 507097010.
Tighten the screws (2) (tightening torque: 22Nm).
CAUTION
The bike setup modification is a very delicate operation and can be dangerous if carried out with
incompetence.
Drive carefully after having changed the bike trim to take confidence with the new setup.
Sub 3-47
