BODYWORK
4

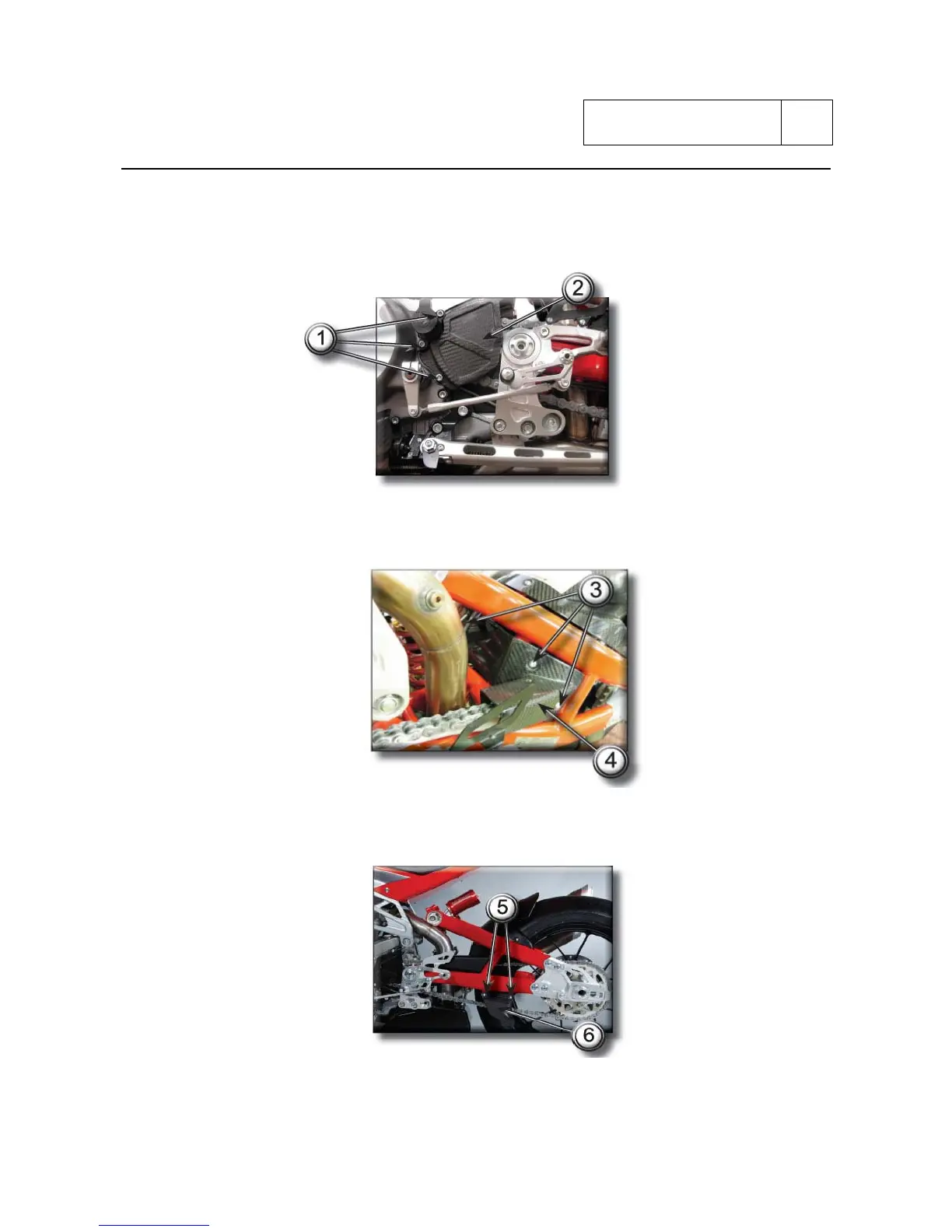

4.6 – PINION COVER – CHAIN GUARD
Unscrew the three fixing screws (1) to remove the pinion cover (2).
Unscrew the three fixing screws (3) to remove the chain guard (4).
Unscrew the two fixing screws (5) to remove the lower chain protection (6).
Sub 4-11
