Rear brake removal
Empty the brake circuit.
Remove right fairing.
CAUTION
The manufacturer of the brake pump, considering the importance in terms of safety of this part,
suggests not working in any way inside the pump.
An overhaul not correctly done can seriously endanger the rider safety.

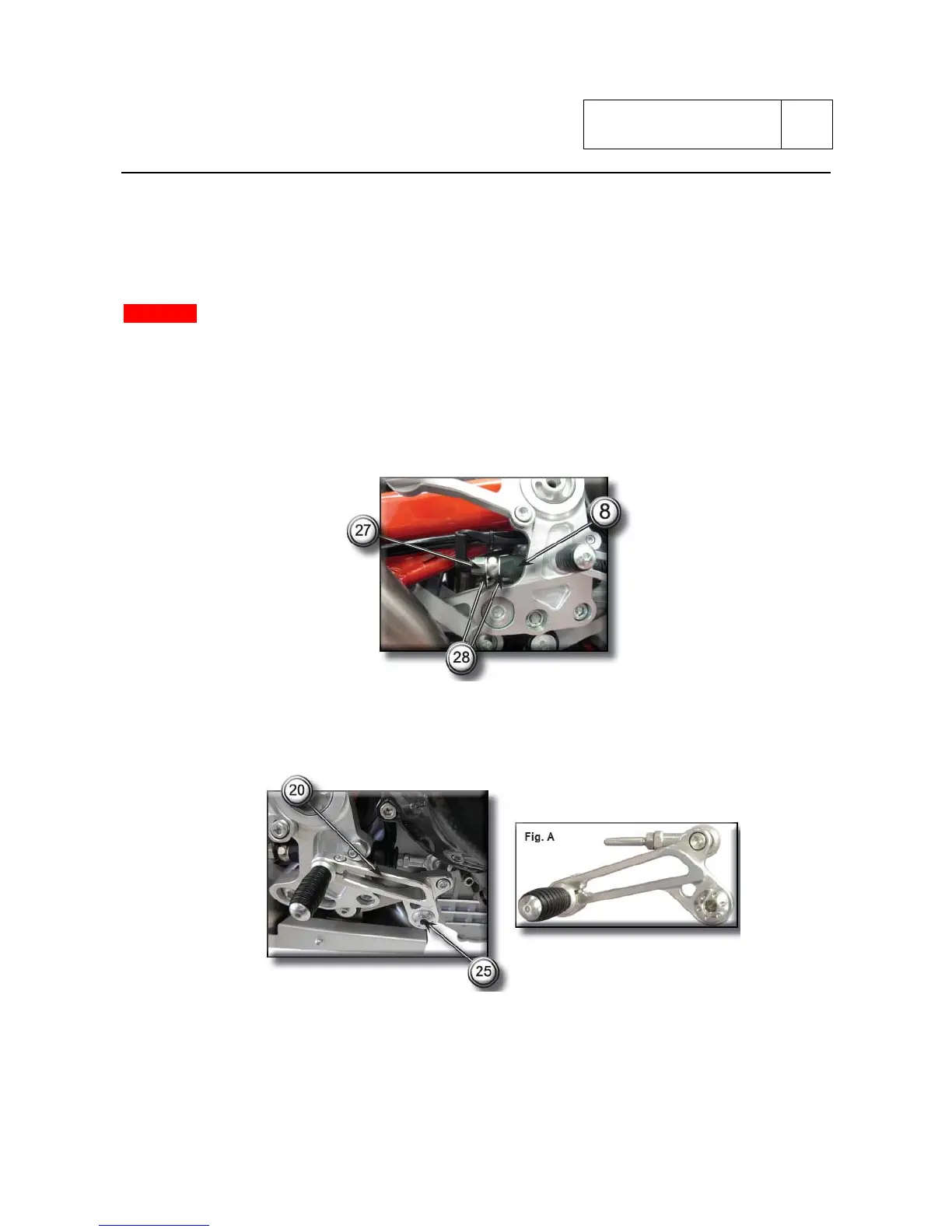

Unscrew the special screw and hydro-stop switch (27) from the pump (8) and slip off the brake
hose keeping the gaskets (28).
Unscrew the special screw (25) and remove the rear brake lever (20) as shown on picture A.
