CONTROLS AND
DEVICES
5

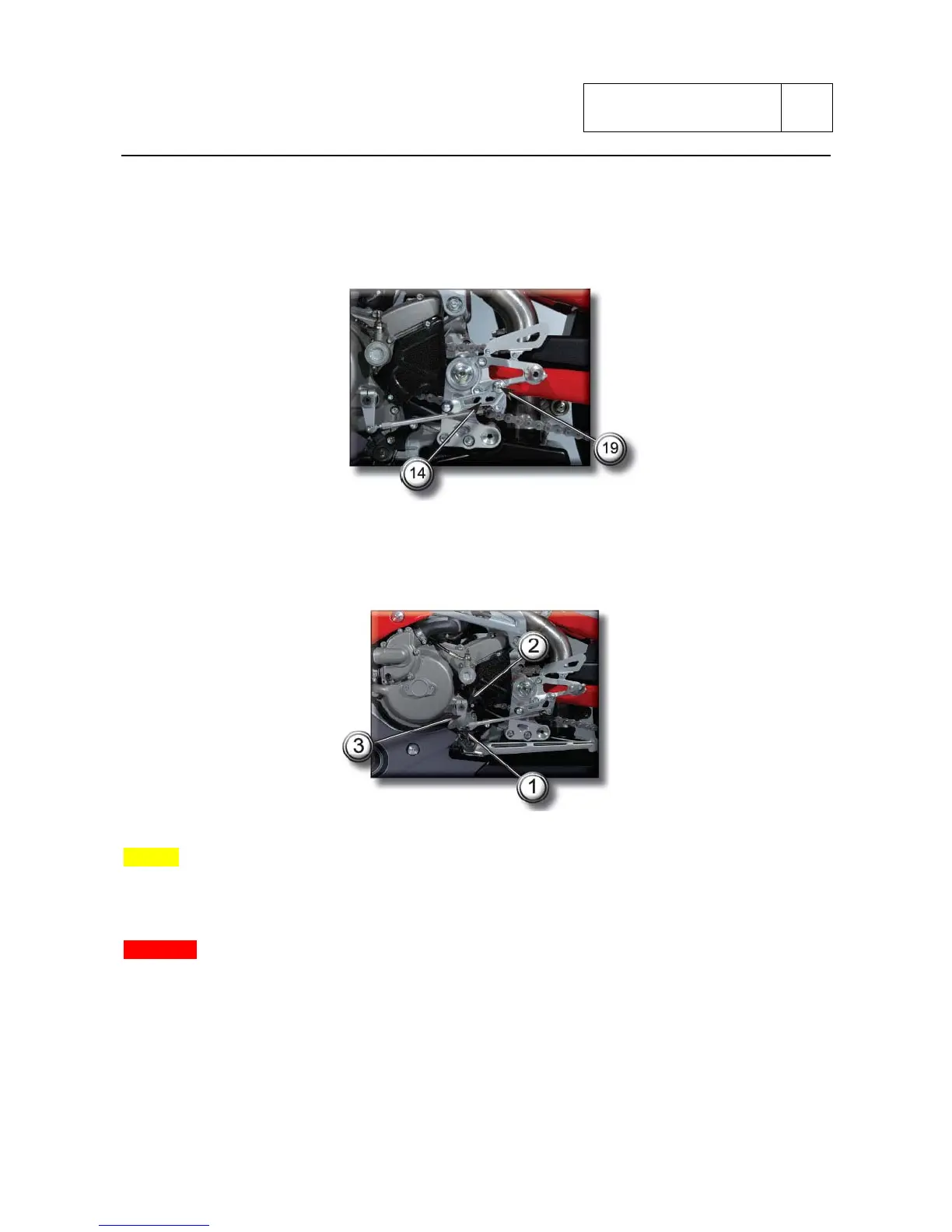

Complete gearshift pedal removal
Unscrew and remove the fixing screw (19) of the gearshift lever (14) with care to the OR ring (28)
and to the flanged bush (24).
Unscrew the lever fixing screw (2) from the gearshift shaft.
Slip off the lever (3) and the complete gearshift pedal assembly from the motorcycle.
NOTES
Before slipping off, mark the position of the lever (3) on to the gearshift shaft.
To remove the lever (3) from gearbox control, unscrew the screw (1).
CAUTION
After having carried out some works on the gearbox control is necessary to check the gearshift
pedal position.
For the reassembly perform in reverse order the operations carried out for the removal of the unit.
In particular use grease on the OR (28), apply threadlocker on the screws (1) and (2), then tighten
to the prescribed torque.
Sub 5-12
