WHEELS-BRAKES-
SUSPENSIONS
6

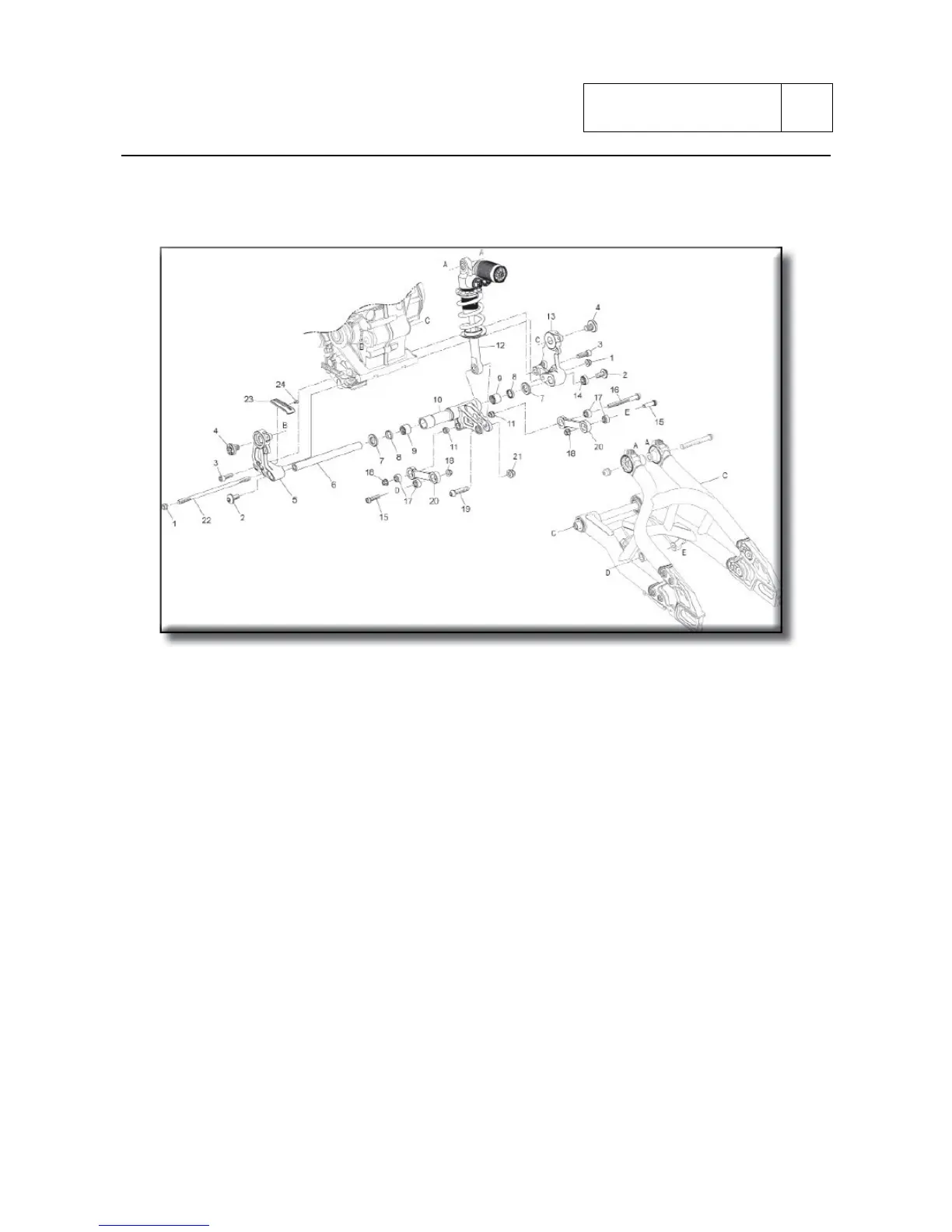

6.7 - REAR SHOCK
1) nut 13) R.H. engine plate
2) rocker arm fixing screw 14) ring nut
3) screw 15) screw
4) swingarm pivot fixing screw 16) screw
5) L.H. engine plate 17) uniball
6) rocker arm pivot 18) nut
7) shim adjuster 19) rear shock to swingarm fixing screw
8) oil seal 20) connecting rod
9) bearing 21) nut
10) rocker arm 22) pivot of rear upper engine joint
11) bush 23) lower chain slider
12) shock absorber 24) screw
