FRAME
7

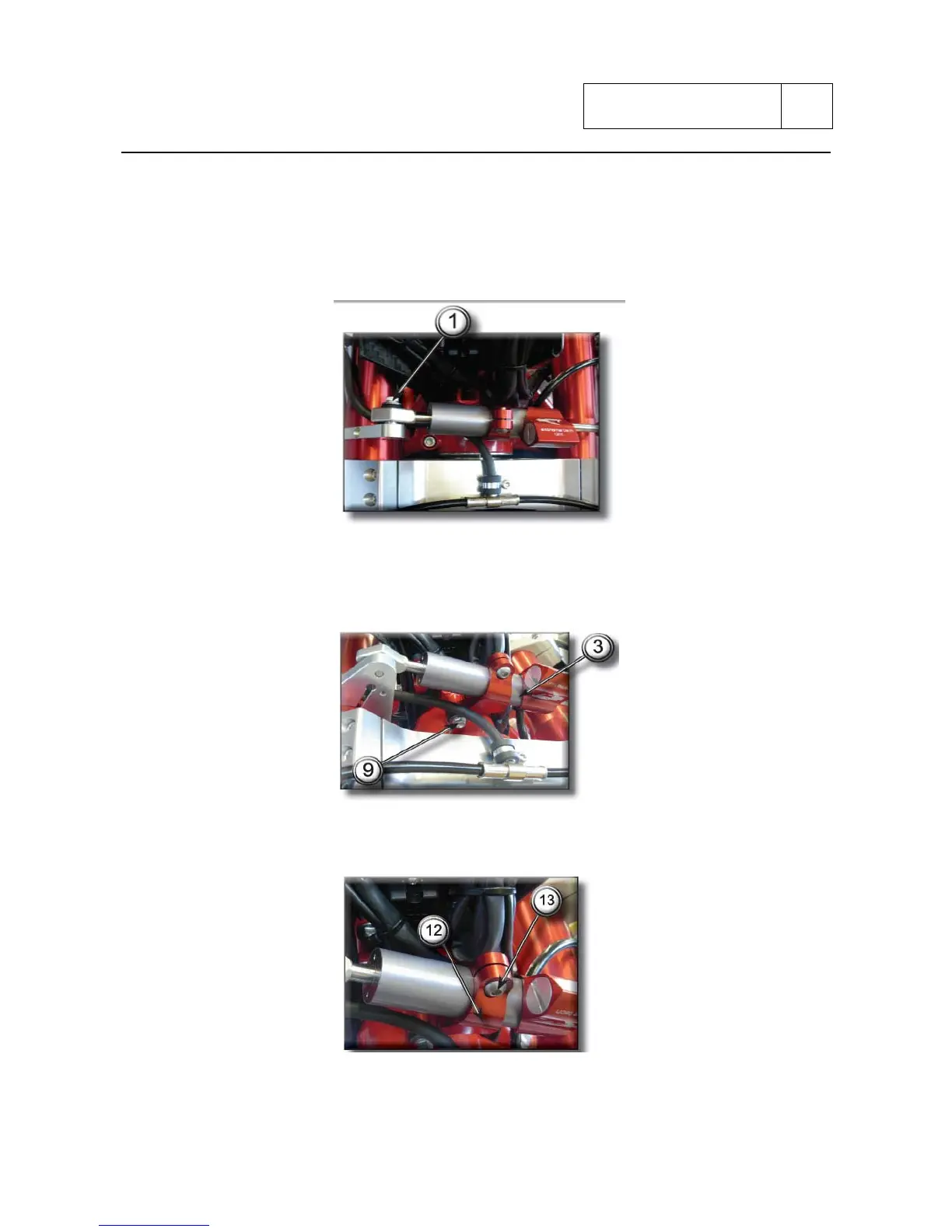

Steering damper removal
Remove the upper fairing.
Unscrew and remove the screw (1) which fixes the steering damper (3) to its holder (8), recovering
the two bushes (2) and (4) and the o-ring (10).
Unscrew the screw (3) which fixes the steering damper (3) to the frame, recovering the two bushes
(5) and (2) and the o-ring (10).
Remove the support clamp (12) by unscrewing the screw (13).
