bimota DB7 - Page 184

EXHAUST - INTAKE
8

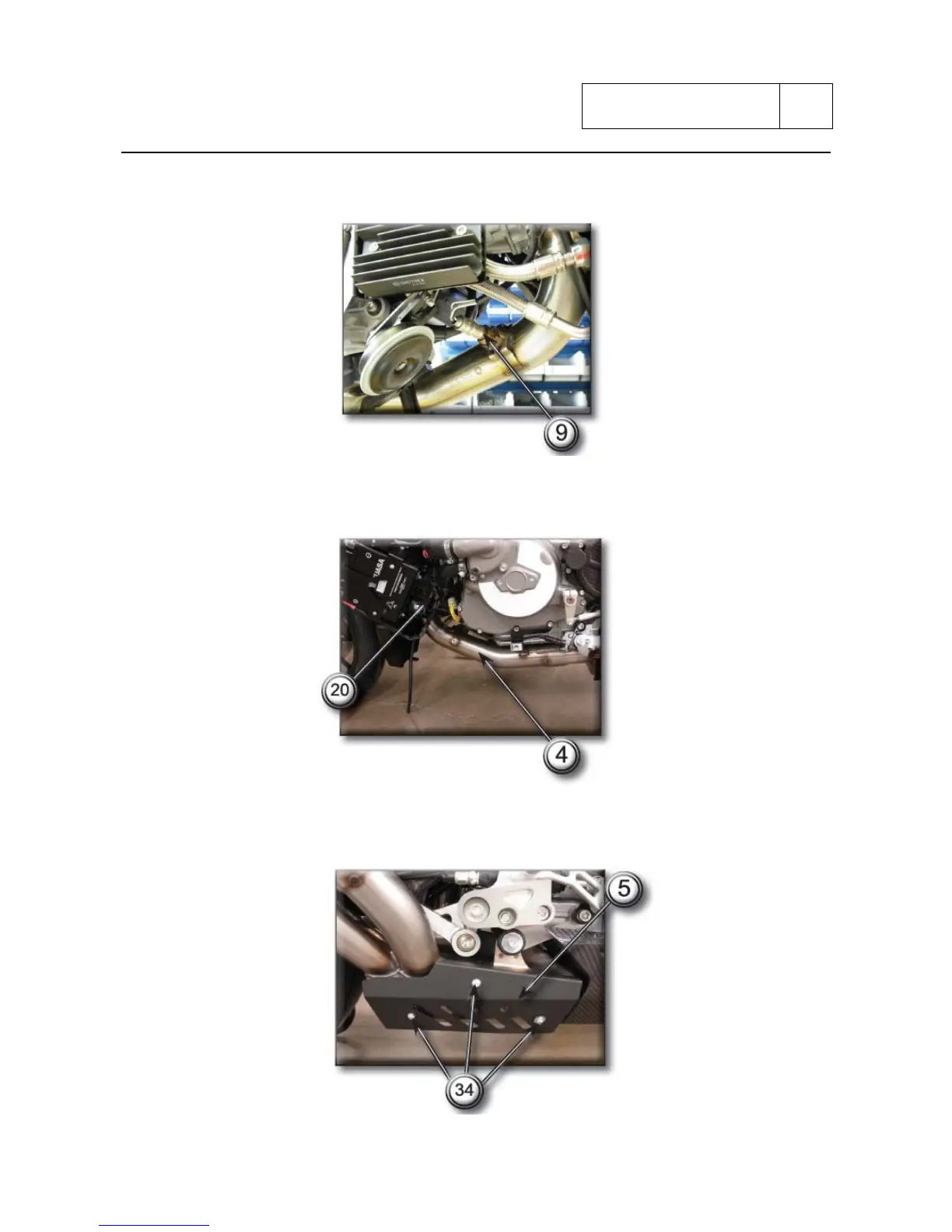

Remove the lambda sensor (9) from the horizontal exhaust manifold (4).
Unscrew the three nuts (20) which fix the horizontal exhaust manifold (3) to the cylinder head.
Remove the horizontal exhaust manifold (4) and recover the gasket (8).
Unscrewing the three screws (34) to remove the exhaust expansion cover (5) then recover the
washers and bushes.
Sub 8-6
