EXHAUST - INTAKE
8

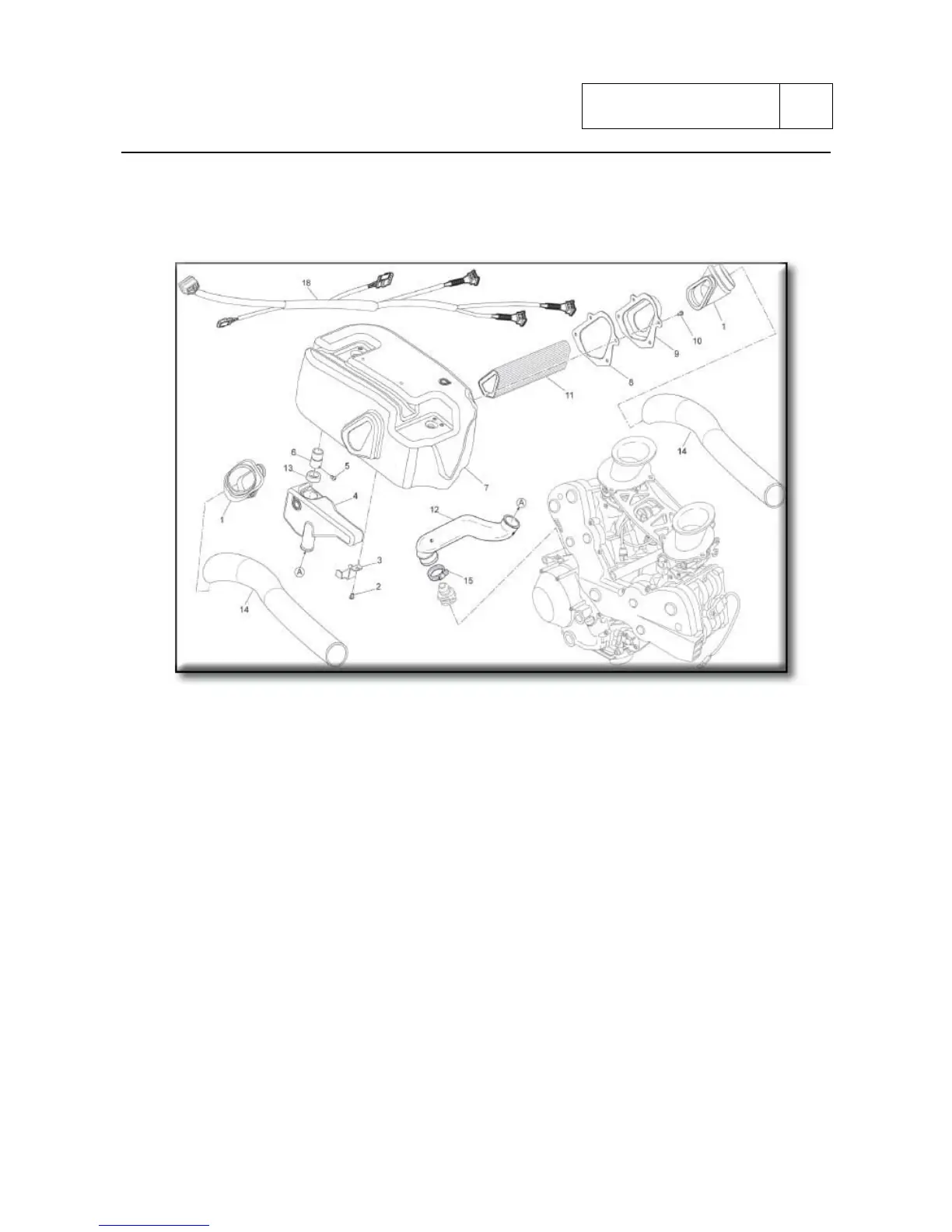

8.4 - INTAKE – AIRBOX
1) manifold
2) screw M5x10 TBEI
3) fixing plate of oil expansion tank
4) oil expansion tank
5) screw M5x8 TBEI
6) air box – expansion tank union
7) air box
8) rubber gasket
9) airbox manifold holder
10) screw
11) air filter
12) oil vent hose
13) cable guide
14) air intake hose
15) clamp
16) airbox electric wiring
Look also the “ Use and maintenance” chapter.
Sub 8-17
