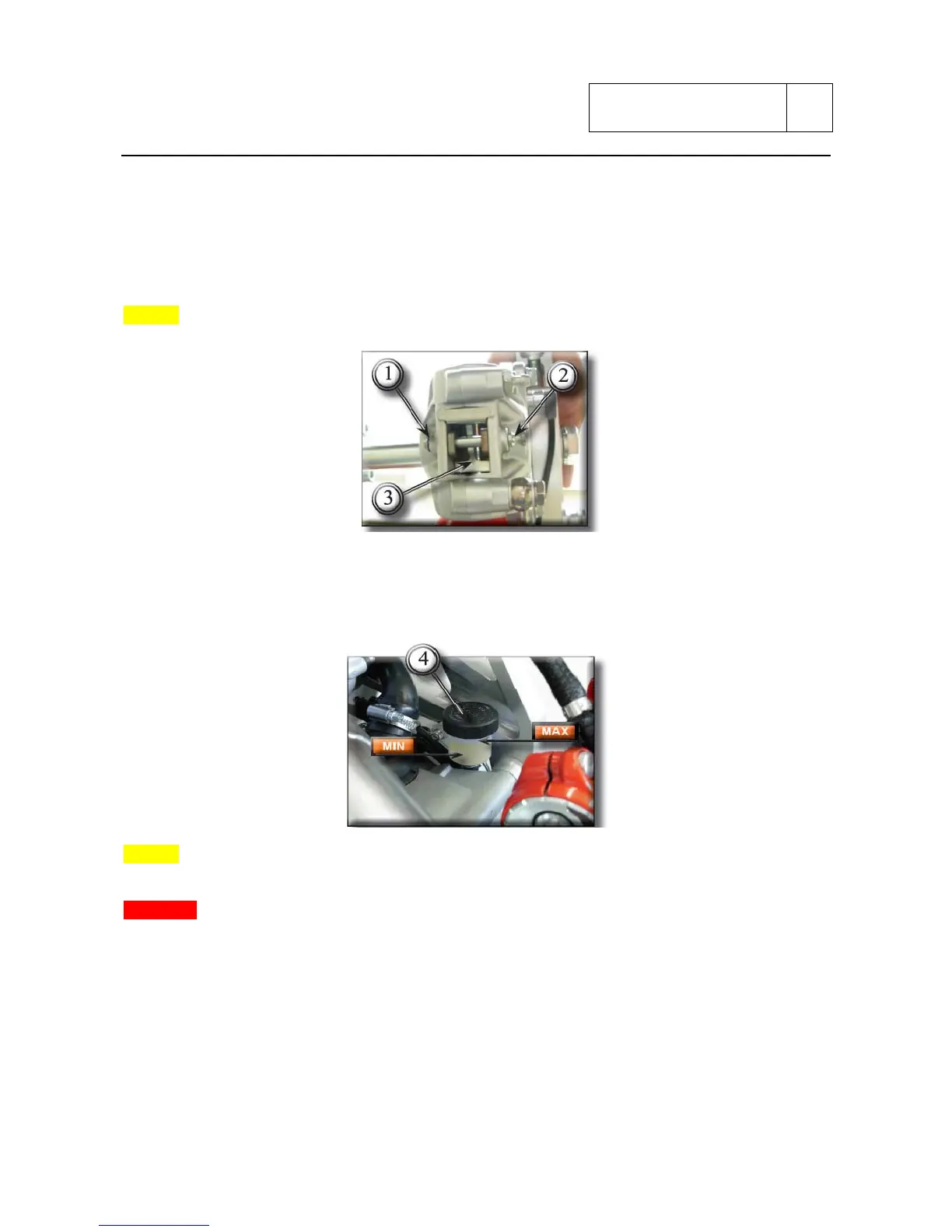

Proceed to pads replacement in the following way:
Remove the safety split pins (1) (on the caliper inner side) from pads pin (2).
Push the small pistons of the caliper completely inside their own seat, opening the used pads.
Slip off the pads pin (2).
Remove the pads holder spring (3) placed between the semi-calipers.
Slip off the wear pads (1)
NOTES
Replace the pads with a shiny and “glassy” aspect.
Insert the new pads and relative spring (3). Insert the pin (2) and lock it with the safety split pin.
Move the brake pedal several times to allow the settlement of the pads under the action of brake
fluid force.
Verify that the oil level in the reservoir is between the MIN and MAX mark. Otherwise provide to
topping after having unscrewed the reservoir cap (4).
NOTES
Remove the calipers if the replacement operation is difficult.
CAUTION
Being the brake calipers a security part of the bike, be careful when reassembly to the tightening
torque of calipers fixing screws
